Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

16 part groups · 4 illustrations

Illustrations

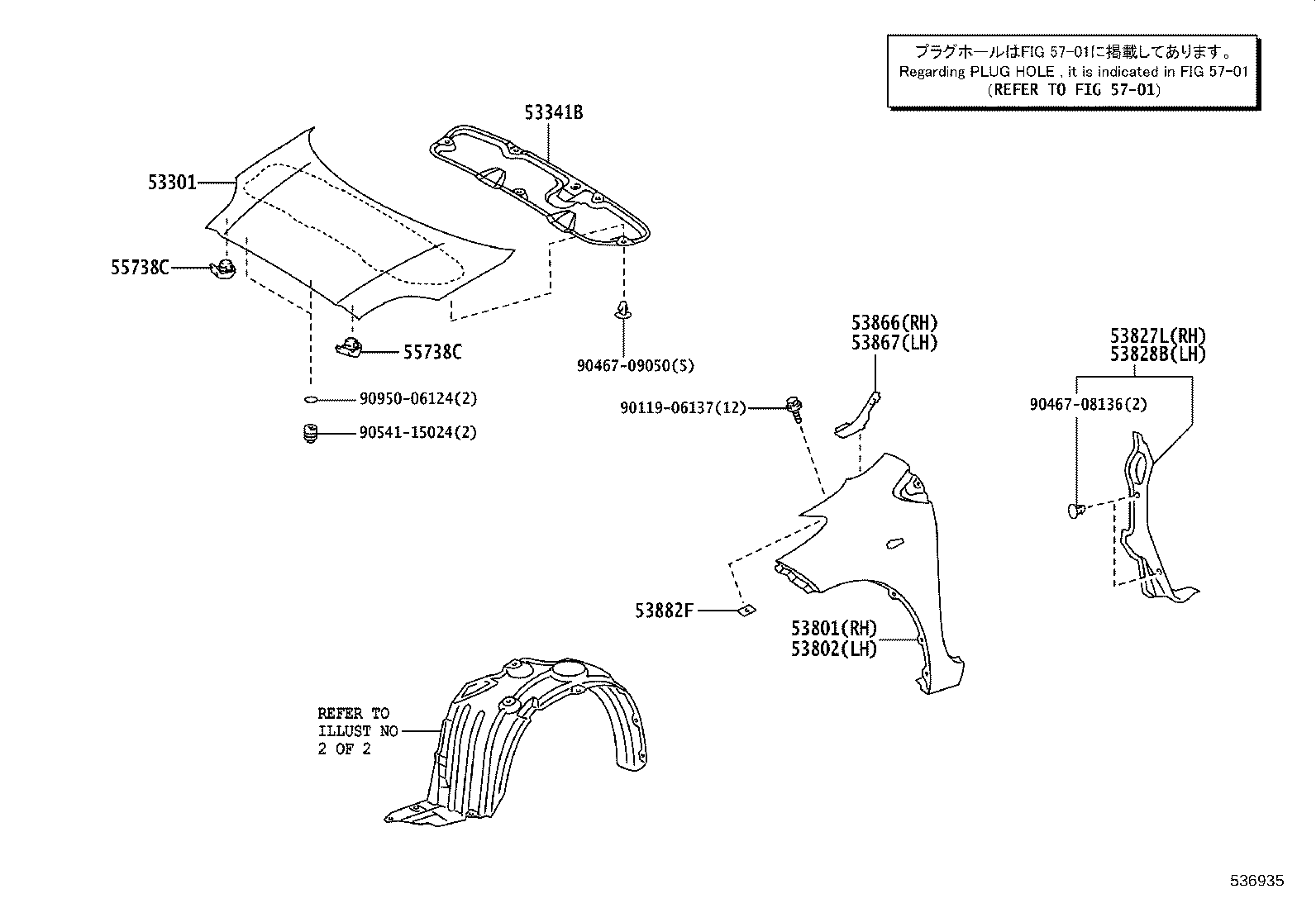

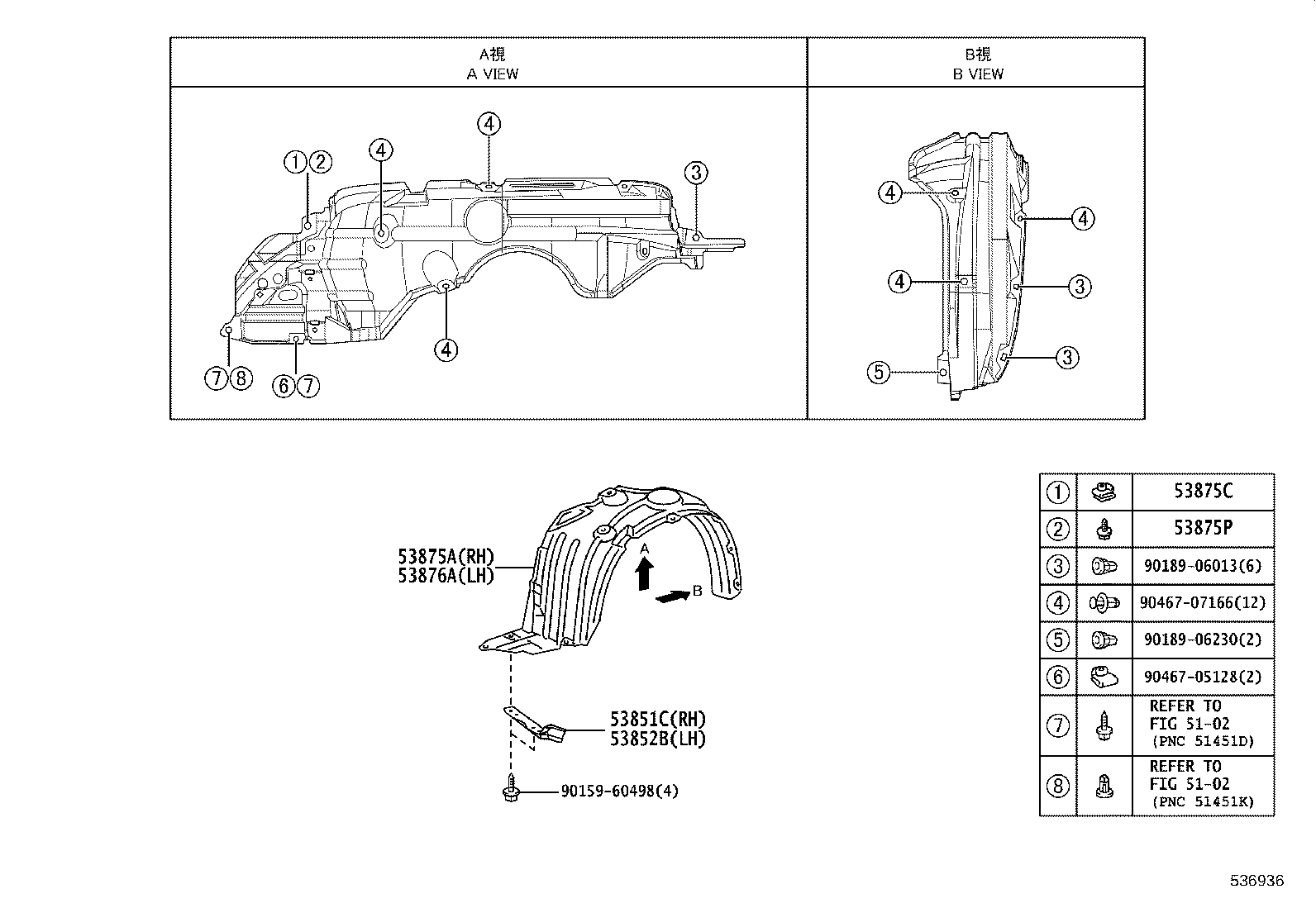

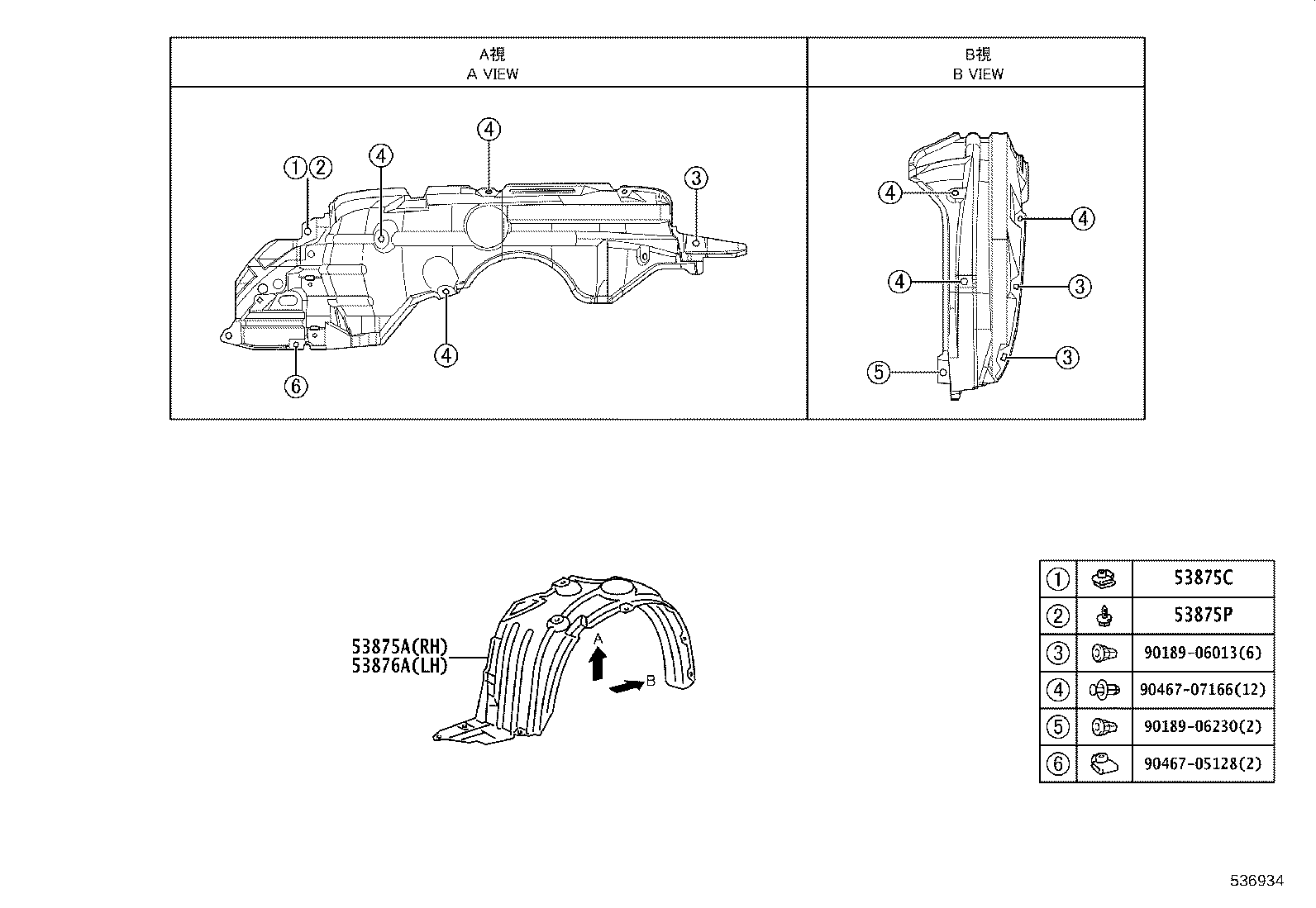

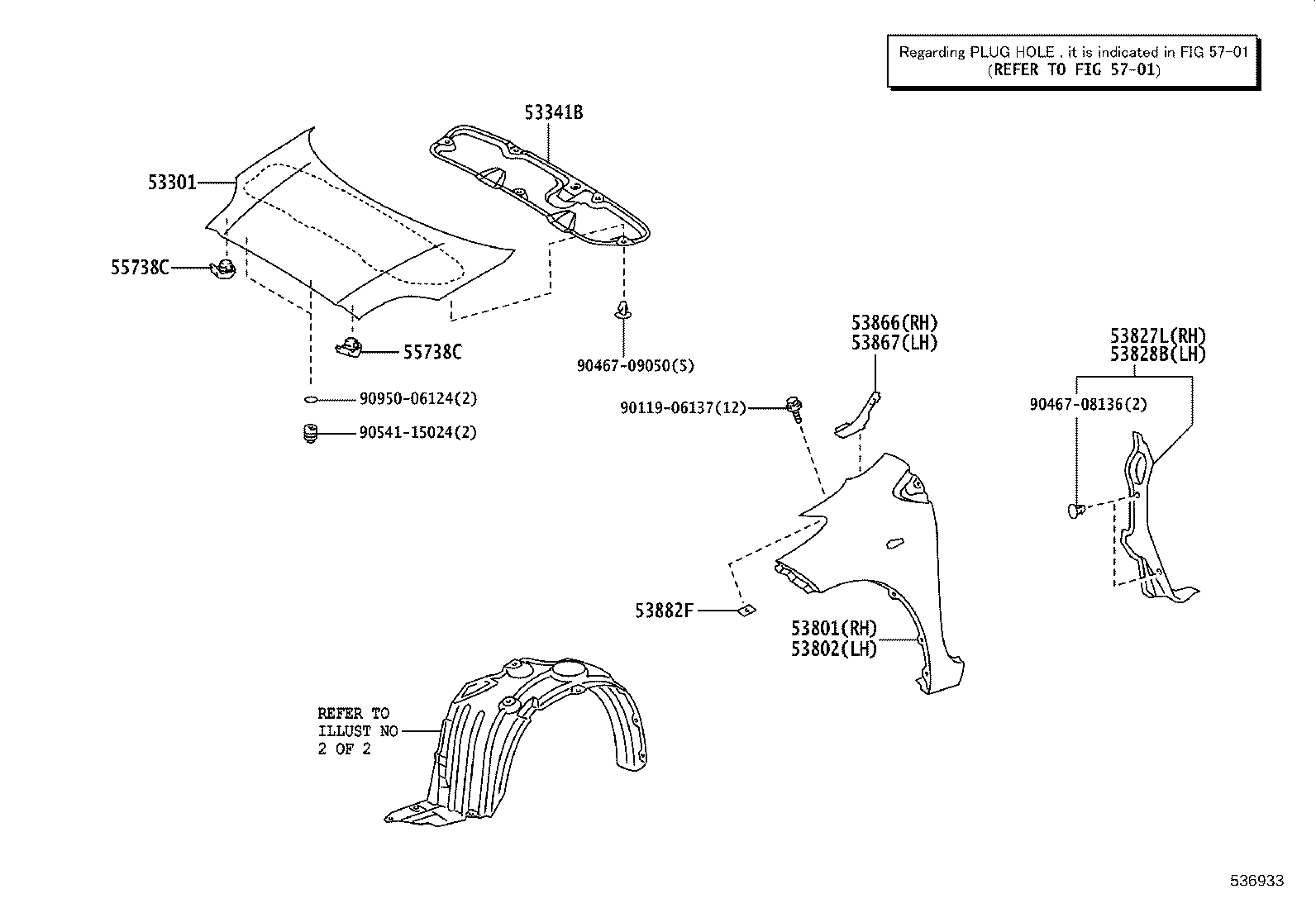

Figure 536933 536933 2005-11 → 2008-11 Figure 536934 536934 2005-11 → 2008-11 Figure 536935 536935 2008-11 → — Figure 536936 536936 2008-11 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827L Protector, Front Fender Side Panel, RH
53828B Protector, Front Fender Side Panel, LH
53851C Pad, Front Wheel Opening Extension, NO.1
53852B Pad, Front Wheel Opening Extension, LH
53866 Seal, Front Fender TO Cowl Side, RH
53867 Seal, Front Fender TO Cowl Side, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53882F Seal, Front Fender
55738C Stopper, Hood, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
