Toyota Yaris (FRP)
2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · United States
Supported model
Data version 2012-01

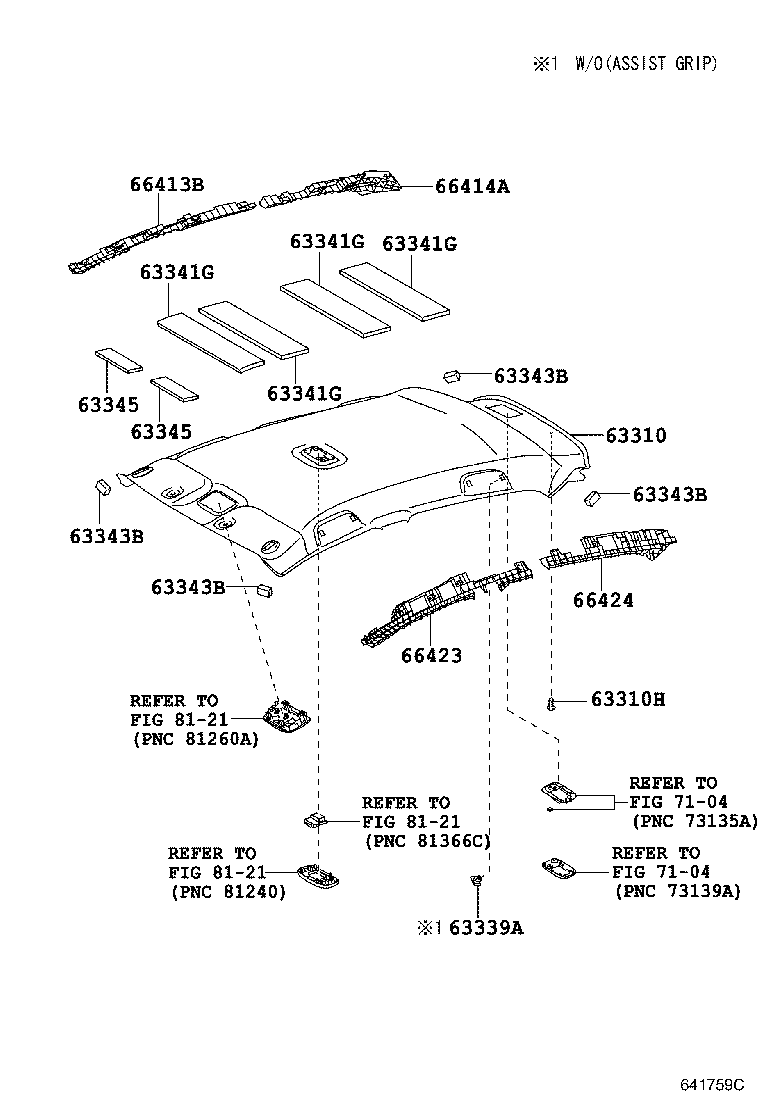

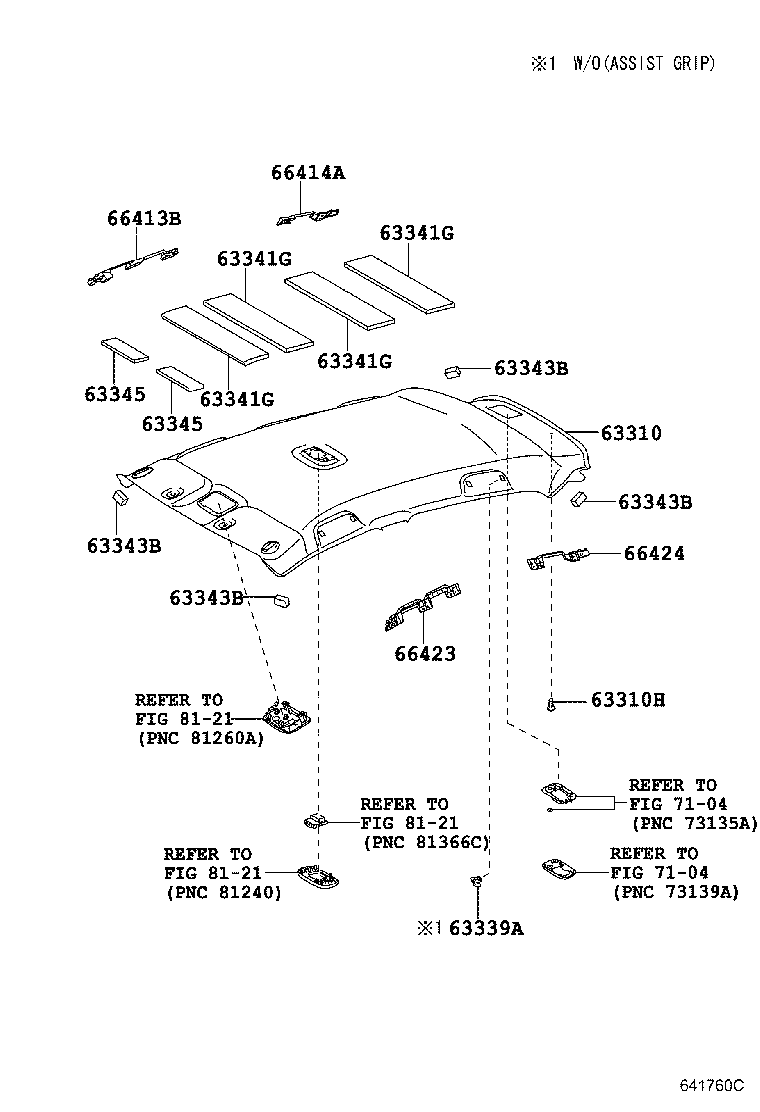

Roof Headlining & Silencer Pad
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63310 | Headlining Assy, Roof |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63339A | Cover, Roof Headlining Service Hole |
| 63341G | Pad, Roof Silencer |
| 63343B | Pad, Roof Silencer, Rear |
| 63345 | Pad, Roof Silencer, NO.5 |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
