Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

36 part groups · 10 illustrations

Illustrations

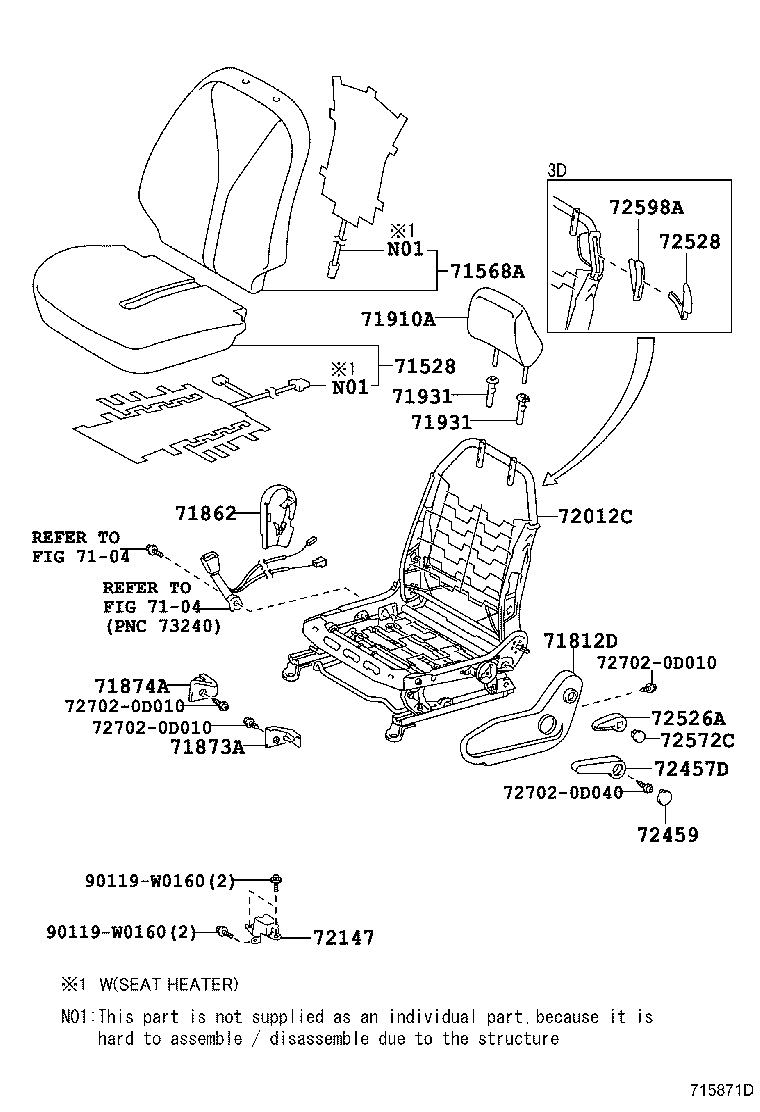

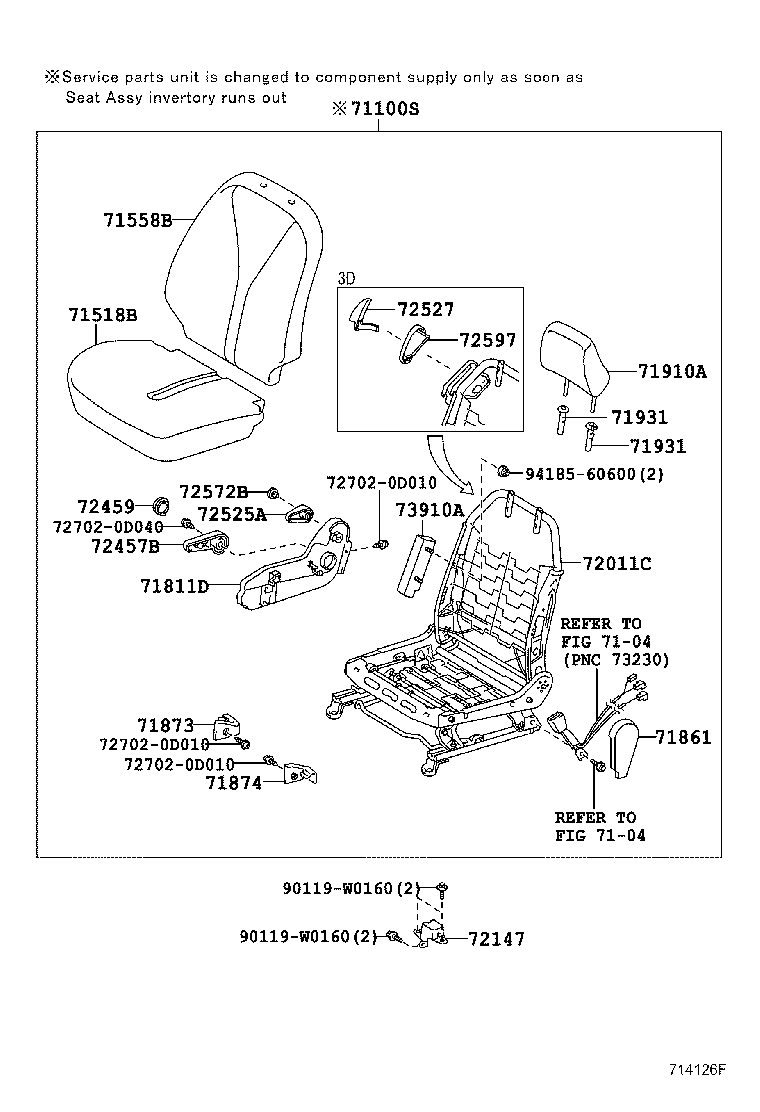

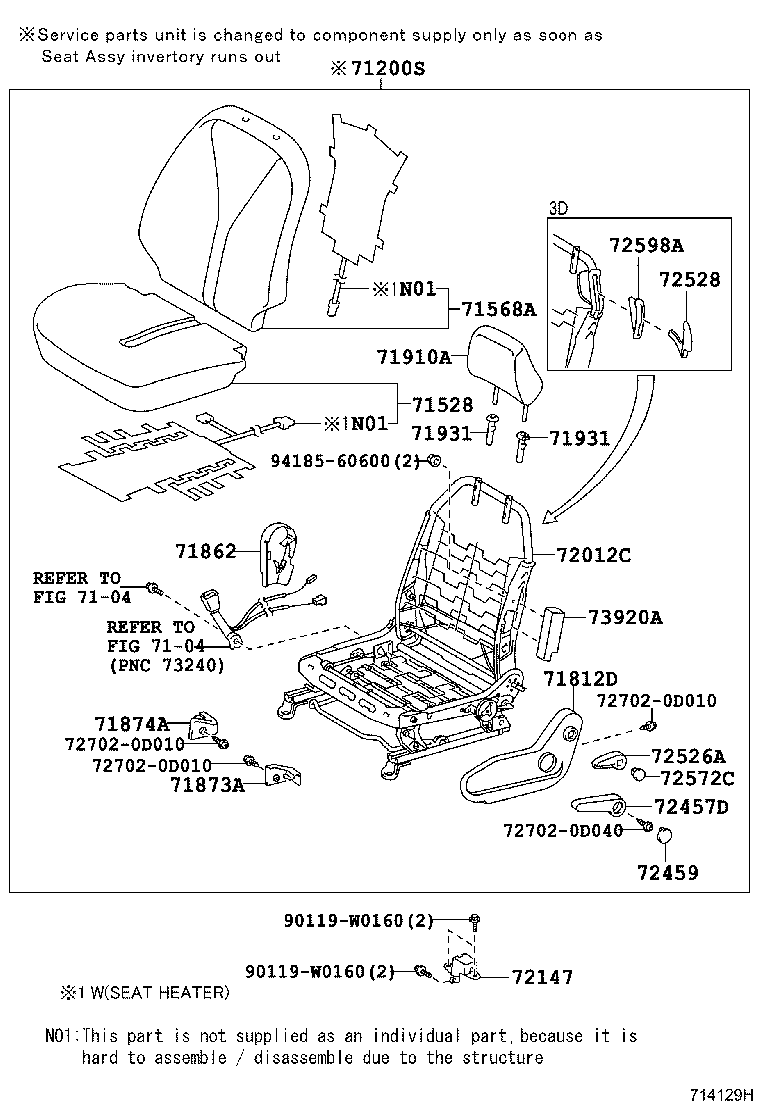

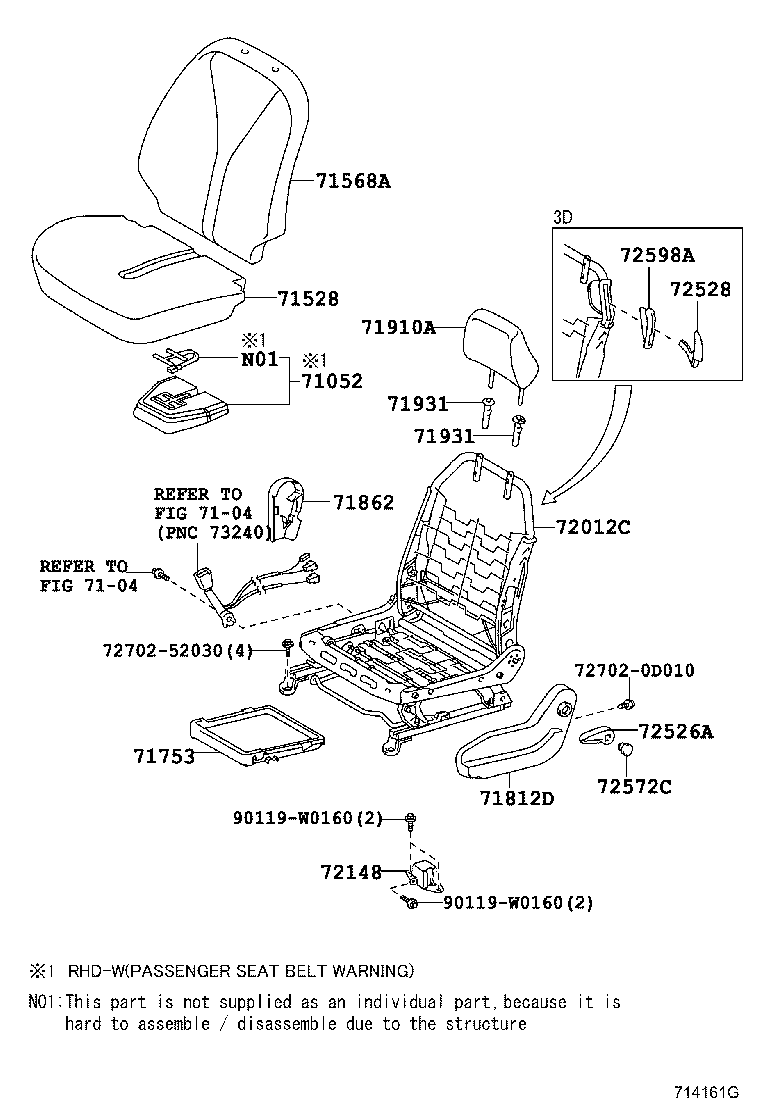

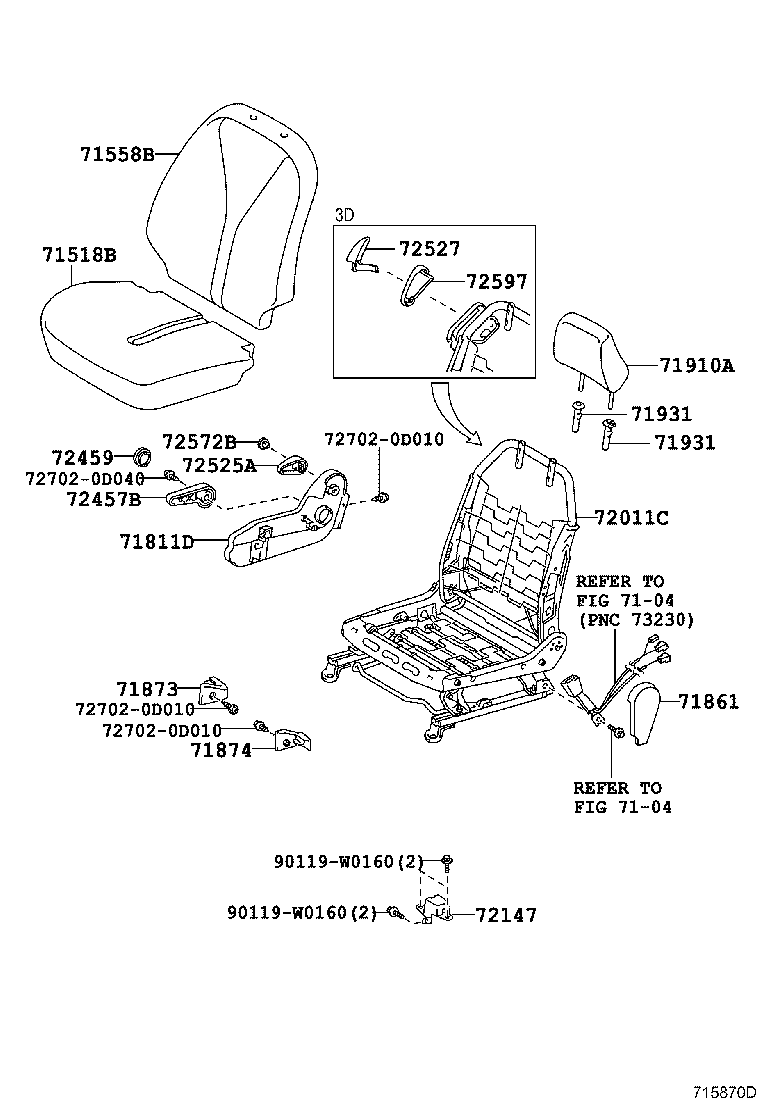

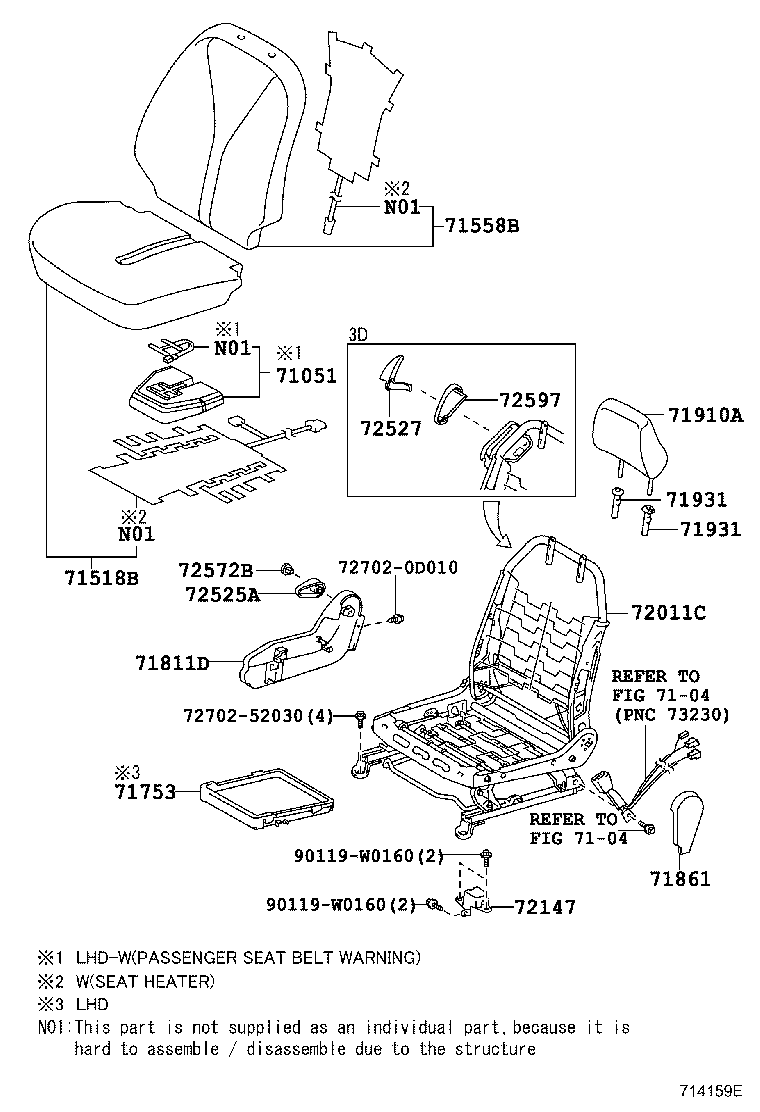

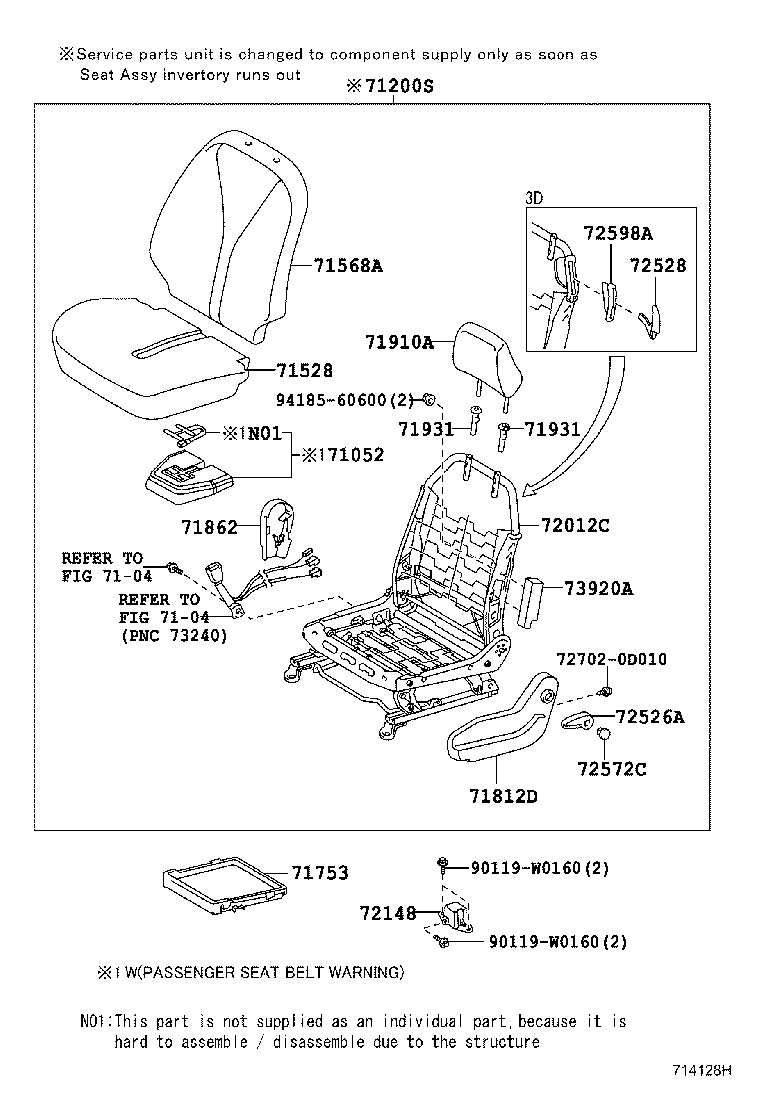

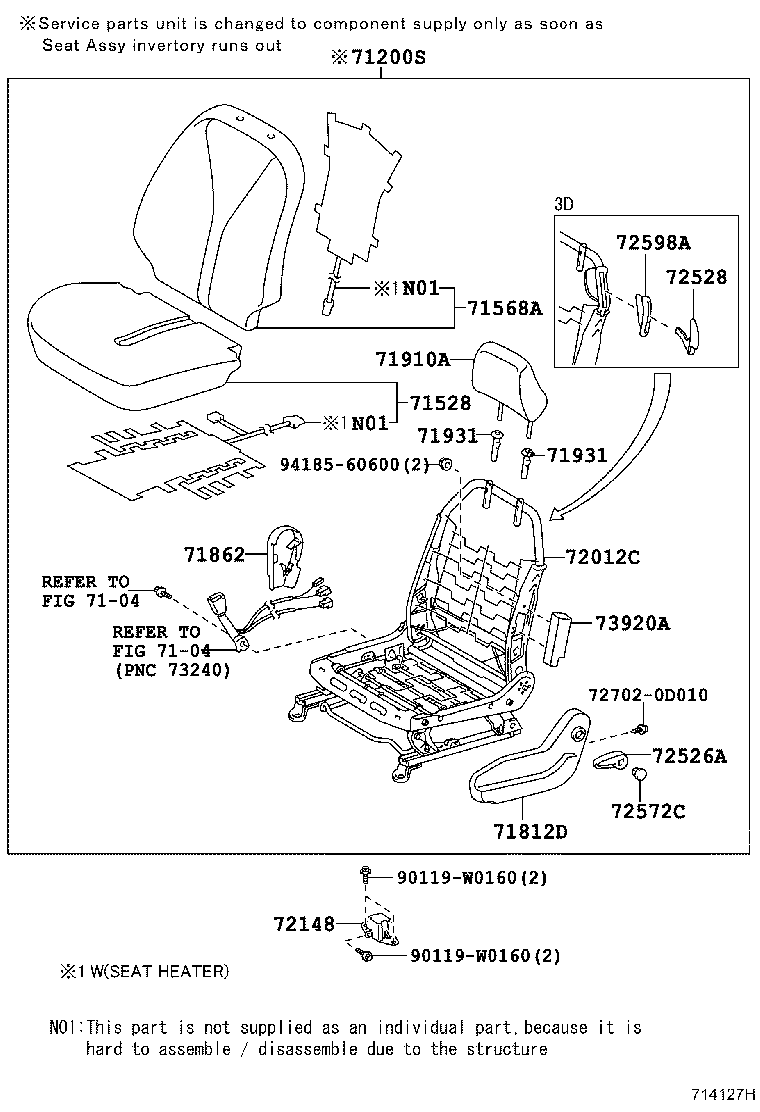

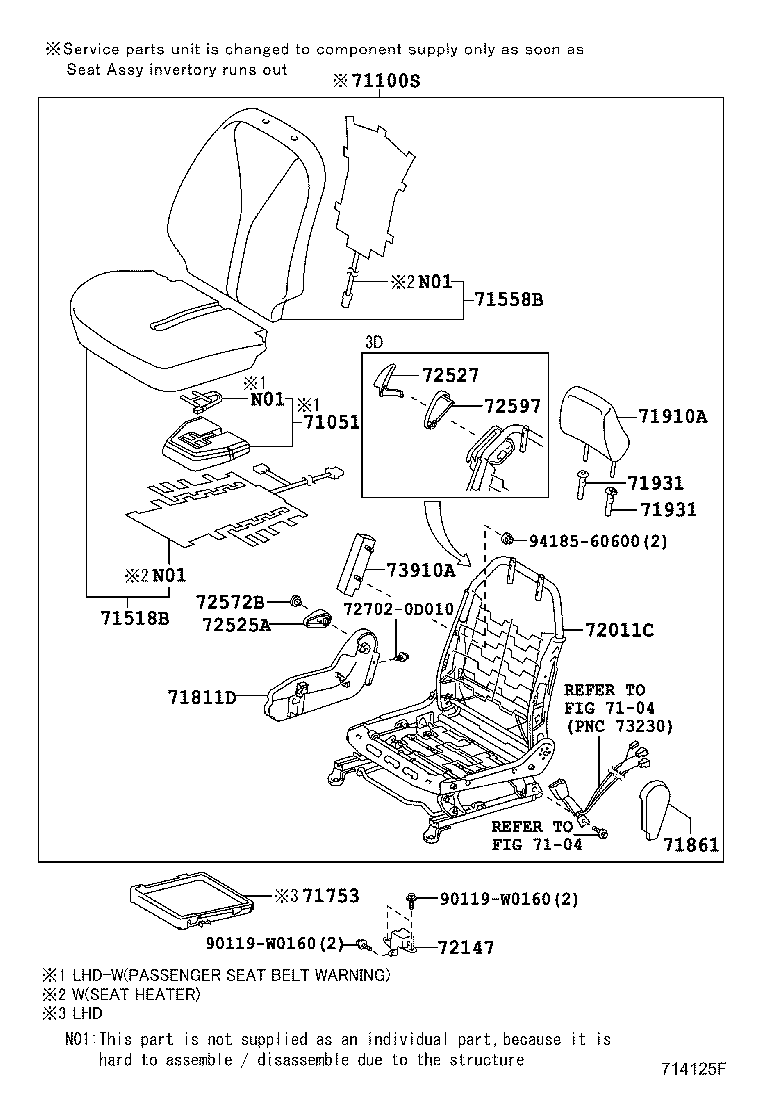

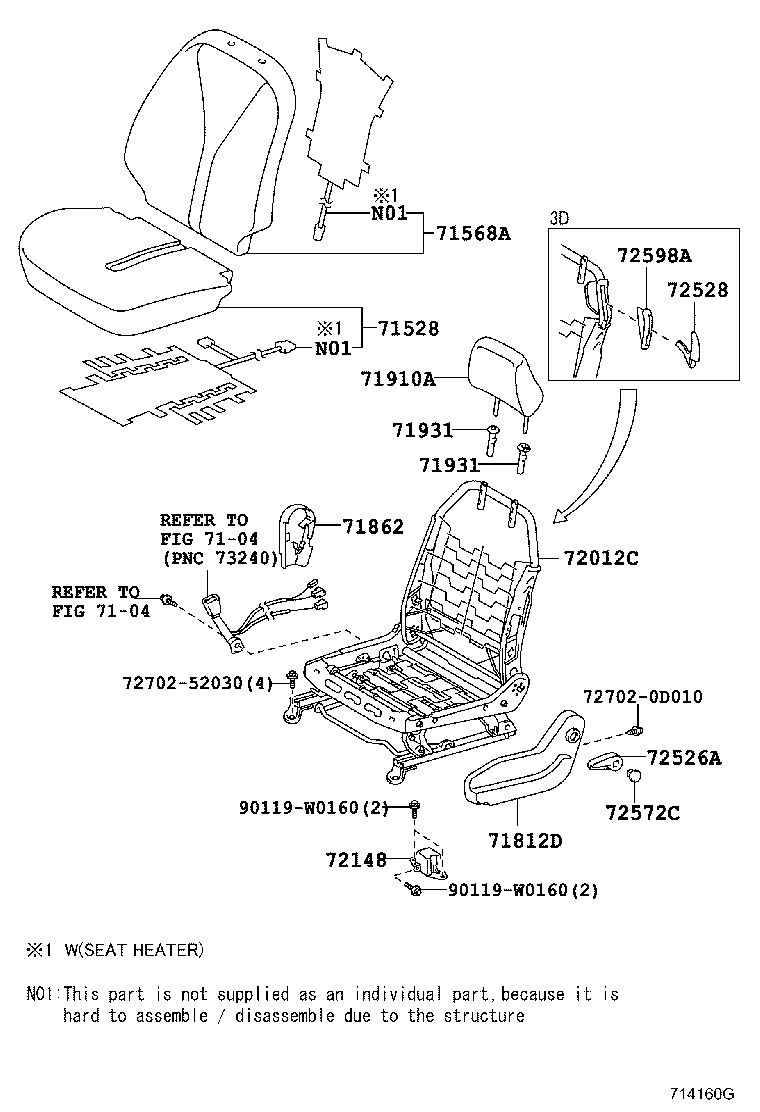

Figure 714160G 714160G 2005-11 → — Figure 714127H 714127H 2005-11 → — Figure 714129H 714129H 2005-11 → — Figure 715871D 715871D 2008-11 → — Figure 714159E 714159E 2005-11 → — Figure 714125F 714125F 2005-11 → — Figure 714126F 714126F 2005-11 → — Figure 715870D 715870D 2008-11 → — Figure 714161G 714161G 2005-11 → — Figure 714128H 714128H 2005-11 → —

Part groups

PNCDescription
71051 Pad Sub-assy, Front Seat Cushion Sensor, RH
71052 Pad Sub-assy, Front Seat Cushion Sensor, LH
71100S Seat Assy, Front RH
71200S Seat Assy, Front LH
71518B Pad, Front Seat Cushion W/Cover, RH
71528 Pad, Front Seat Cushion W/Cover, LH
71558B Pad, Front Seatback W/Cover, RH
71568A Pad, Front Seatback W/Cover, LH
71753 Tray, Front Seat Under
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72011C Adjuster Sub-assy, Front Seat, RH
72012C Adjuster Sub-assy, Front Seat, LH
72147 Bracket, Front Inner Seat Track, Lower Rear RH
72148 Bracket, Front Inner Seat Track, Lower Rear LH
72457B Knob, Vertical Seat Adjuster, RH
72457D Knob, Vertical Seat Adjuster, LH
72459 Cap, Vertical Seat Adjuster Knob
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72527 Handle, Reclining Adjuster Memory, RH
72528 Handle, Reclining Adjuster Memory, LH
72572B Cap, Reclining Adjuster Knob, RH
72572C Cap, Reclining Adjuster Knob, LH
72597 Bezel, Reclining Remote Control
72598A Bezel, Reclining Remote Control, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
