Toyota Yaris (FRP)
2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · United States
Supported model
Data version 2012-01
Radio Receiver & Amplifier & Condenser
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

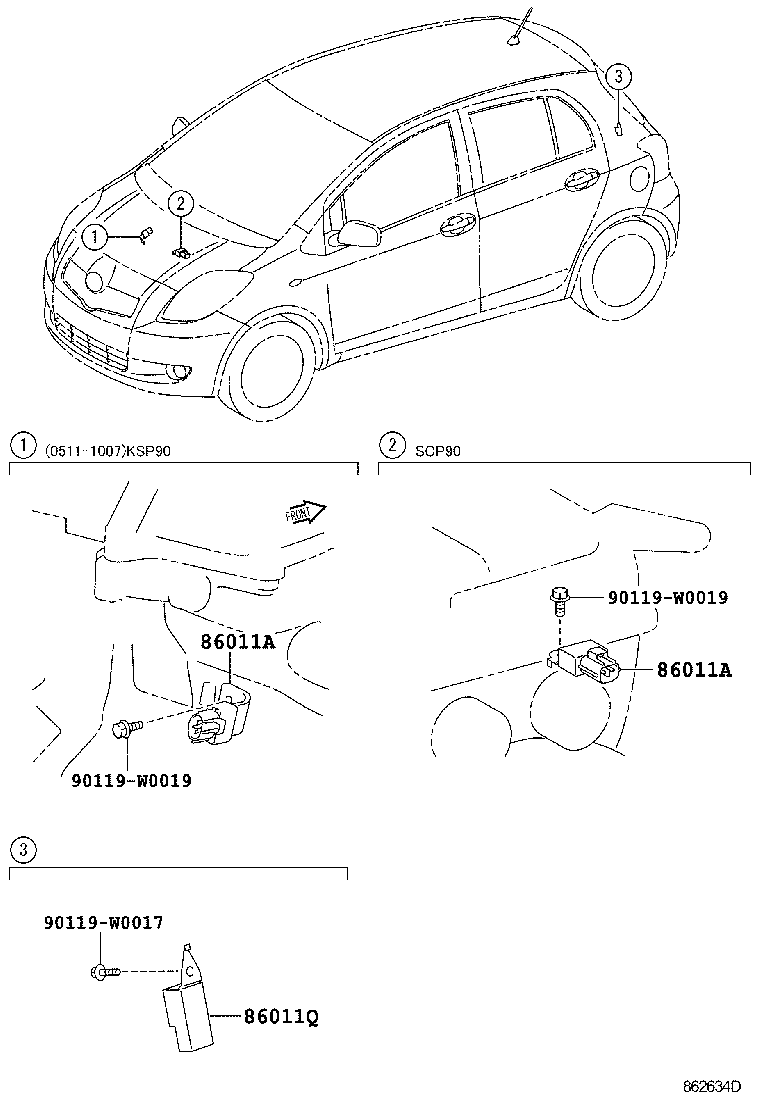

| 86011A | Condenser, Radio Setting |
| 86011Q | Condenser, Radio Setting |

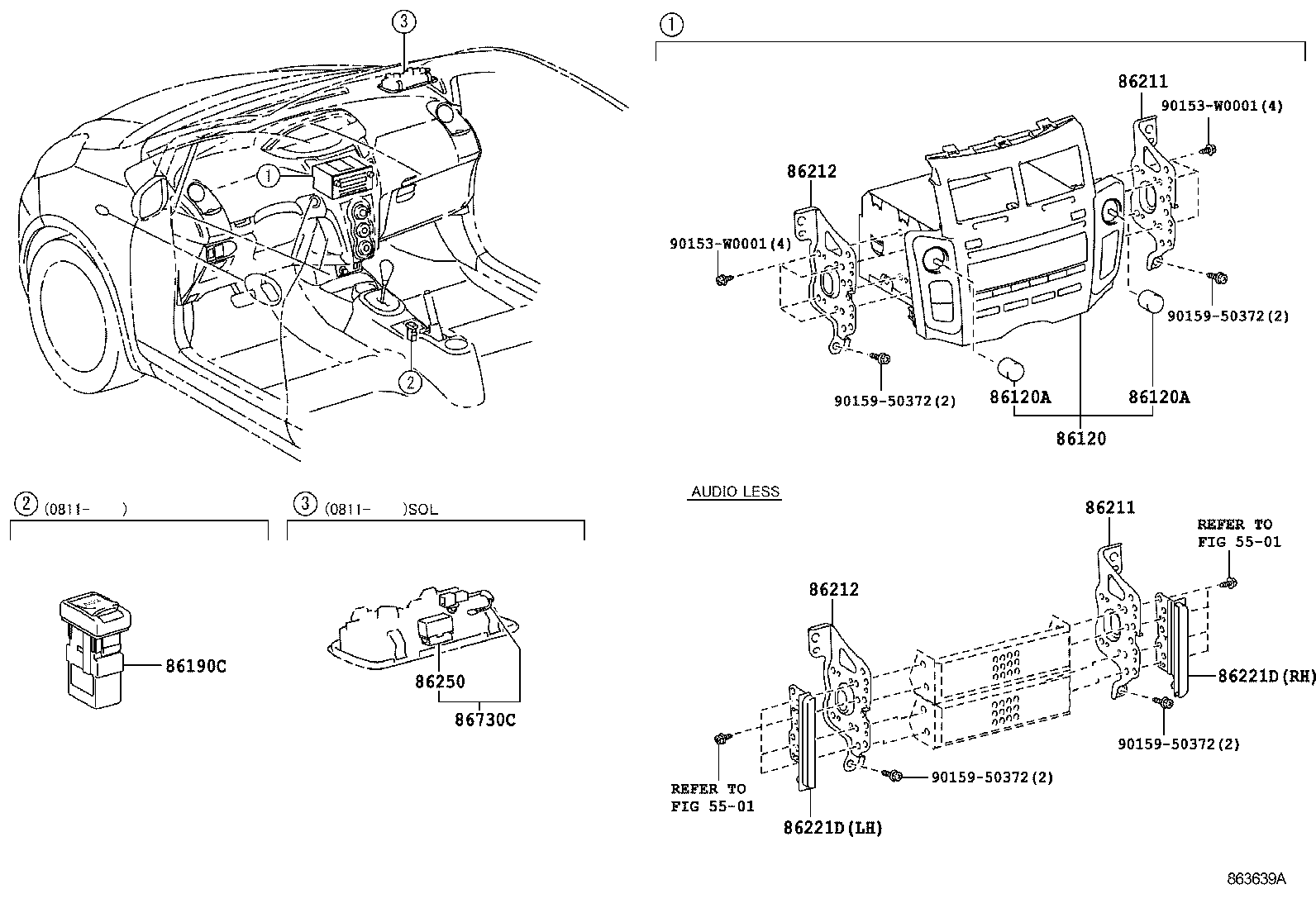

| 86120 | Receiver Assy, Radio |
| 86120A | Knob, Radio Receiver Switch |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86221D | Panel, Radio Receiver |
| 86250 | Microphone Assy, Amplifier |
| 86730C | Microphone Assy, Telephone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
