Toyota Scion XA

2003-04 → 2006-12 · chassis NCP61 · catalogue 117410 · United States

Supported model Data version 2007-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

15 part groups · 2 illustrations

Illustrations

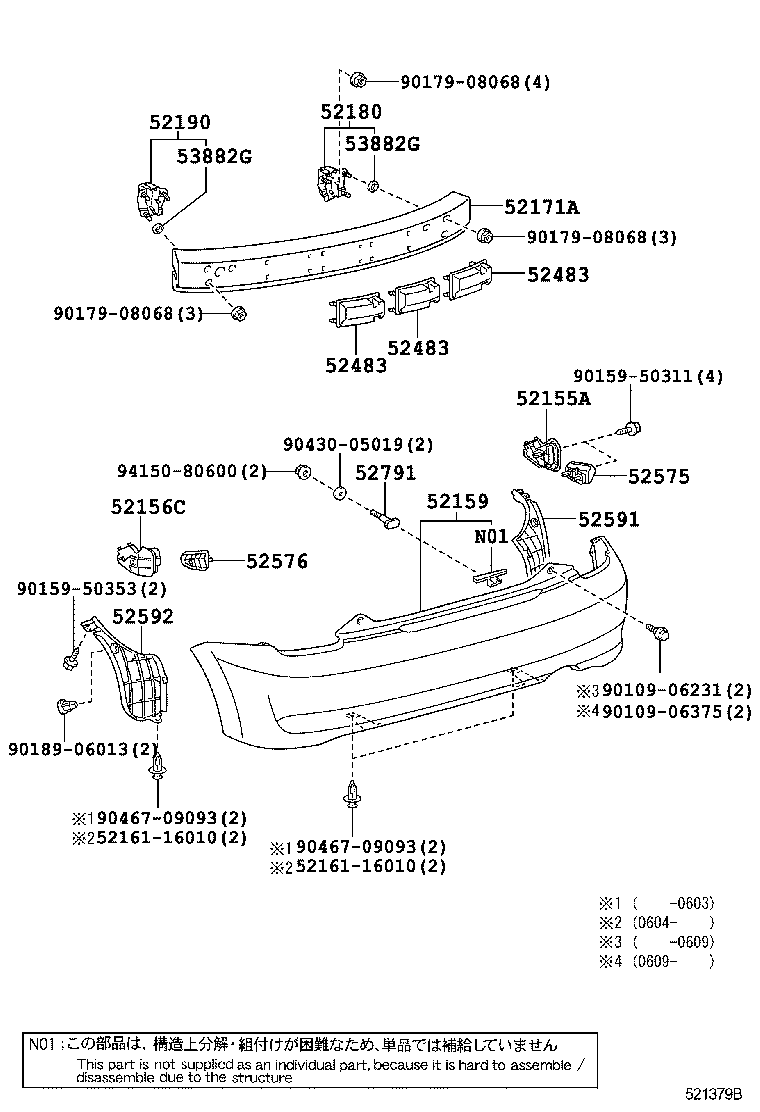

Figure 521006D 521006D 2003-04 → 2005-07 Figure 521379B 521379B 2005-07 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52155A Support, Rear Bumper Side, RH
52156C Support, Rear Bumper Side, NO.1 LH
52159 Cover, Rear Bumper
52163A Plate, Rear Bumper, RH
52171A Reinforcement, Rear Bumper, NO.1
52180 Bracket Assy, Rear Bumper Side Mounting, RH
52190 Bracket Assy, Rear Bumper Side Mounting, LH
52483 Bracket, Rear Bumper Shield, Center
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52791 Bolt, Bumper Moulding Set, NO.1
53882G Seal, Front Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
