Roof Panel & Back Window Glass

23 part groups · 2 illustrations

Illustrations

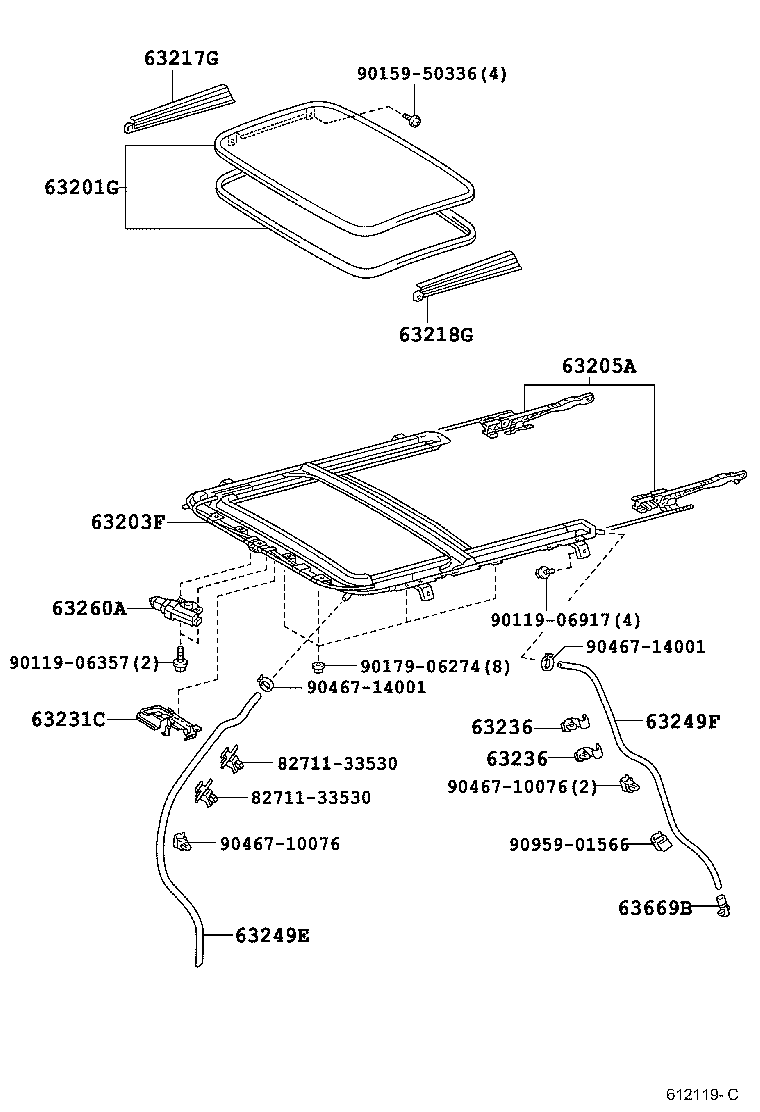

Figure 611803H 611803H 2003-04 → — Figure 612119C 612119C 2004-08 → —

Part groups

PNCDescription
63103A Reinforcement Sub-assy, Roof Panel
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63132 Panel, Windshield Header, Inner
63137A Bracket, Dome Lamp, NO.1
63141G Reinforcement, Roof Panel, NO.1
63142 Reinforcement, Roof Panel, NO.2
63142A Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144B Reinforcement, Roof Panel, NO.4
63201G Glass Sub-assy, Sliding Roof
63203F Housing Sub-assy, Sliding Roof
63205A Cable Sub-assy, Sliding Roof Drive
63217G Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63231C Bracket, Room Lamp
63236 Clamp, Sliding Roof OR Removable Roof Drain Hose
63249E Hose, Sliding Roof Drain
63249F Hose, Sliding Roof Drain
63260A Gear Sub-assy, Sliding Roof Drive
63669B Grommet, Sliding Roof Drain
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
