Toyota Scion XA

2003-04 → 2006-12 · chassis NCP61 · catalogue 117410 · United States

Supported model Data version 2007-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

13 part groups · 2 illustrations

Illustrations

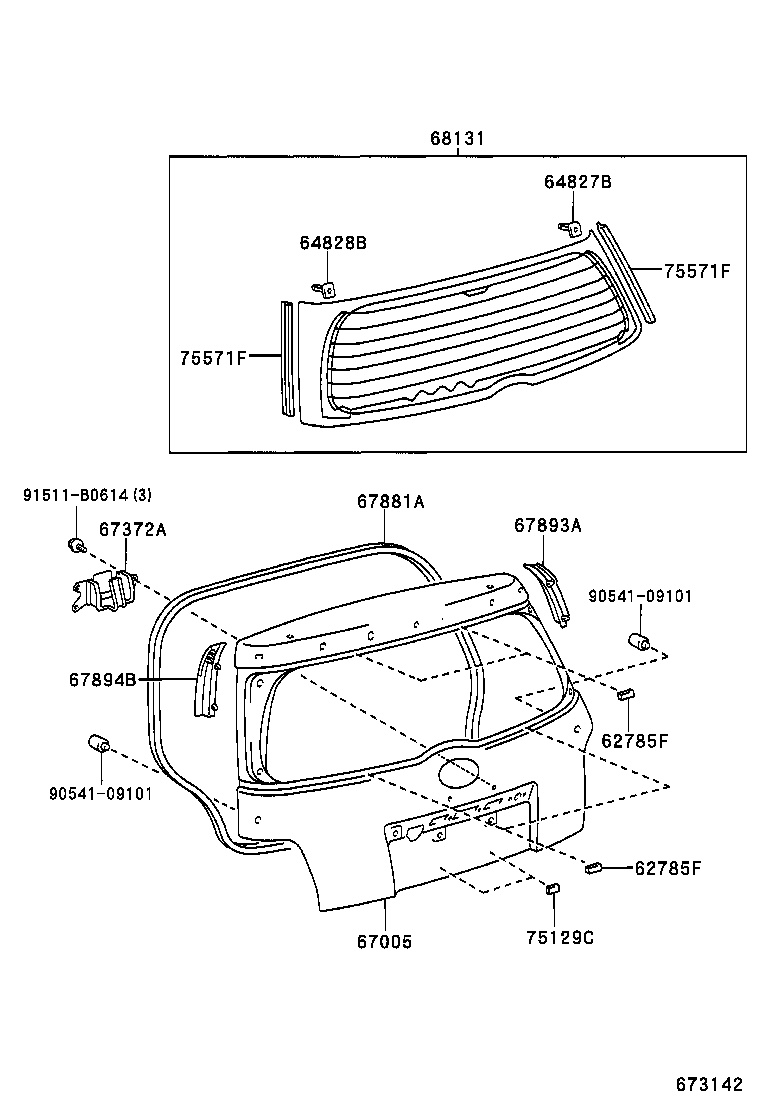

Figure 672686A 672686A 2003-04 → — Figure 673142 673142 2003-04 → —

Part groups

PNCDescription
62785F Spacer, Back Door Glass
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67372A Weight, Back Door
67750 Board Assy, Back Door Trim
67881A Weatherstrip, Back Door
67893A Protector, Back Door Panel, NO.1
67894B Protector, Back Door Panel, NO.2
68131 Glass, Back Door
74811D Handle, Door Pull
75129C Cushion, Rear Licence Plate
75571F Mouldimg, Back Door Window
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
