Toyota Scion XA
2003-04 → 2006-12 · chassis NCP61 · catalogue 117410 · United States
Supported model
Data version 2007-06

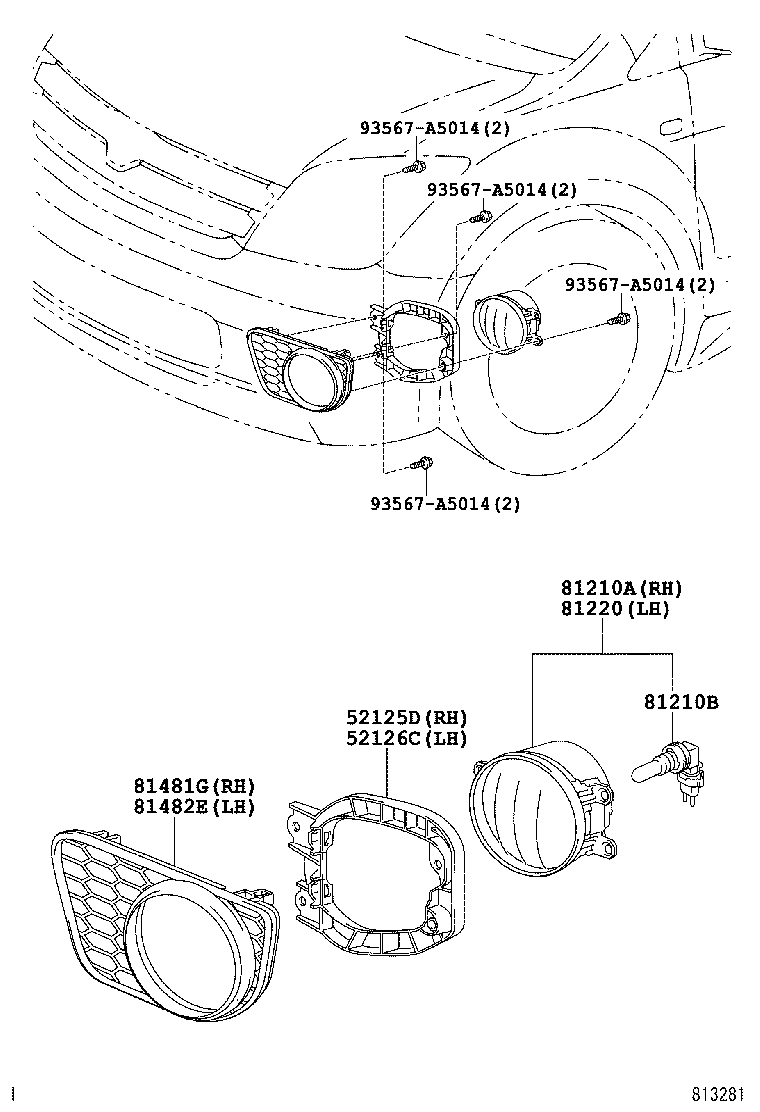

Fog Lamp
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52125D | Bracket, Fog Lamp Mounting, RH |
| 52126C | Bracket, Fog Lamp Mounting, LH |
| 81127C | Bearing Fog Lamp |
| 81210A | Lamp Assy, Fog, RH |
| 81210B | Bulb, Fog Lamp |
| 81211C | Lamp Unit, Fog Lamp, RH |
| 81220 | Lamp Assy, Fog, LH |
| 81221C | Lamp Unit, Fog Lamp, LH |
| 81481G | Bracket, Fog Lamp, RH |
| 81482E | Bracket, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
