Toyota Scion XA

2003-04 → 2006-12 · chassis NCP61 · catalogue 117410 · United States

Supported model Data version 2007-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Turn Signal Lamp & Outer Mirror Lamp

6 part groups · 2 illustrations

Illustrations

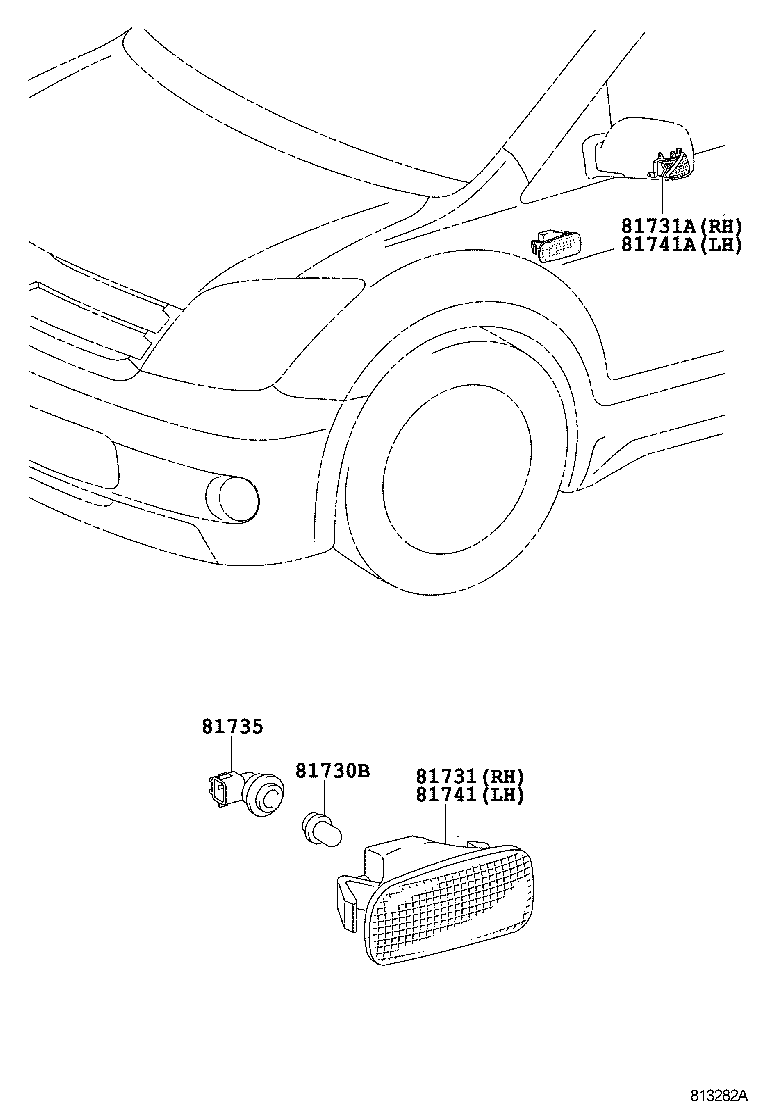

Figure 812097A 812097A 2003-04 → 2005-07 Figure 813282A 813282A 2005-07 → —

Part groups

PNCDescription
81730B Bulb (FOR SIDE TURN SIGNAL LAMP)
81731 Lens, Side Turn Signal Lamp, RH
81731A Lens, Side Turn Signal Lamp RH (FOR DOOR MIRROR)
81735 Socket And Wire, Side Turn Signal Lamp
81741 Lens, Side Turn Signal Lamp, LH
81741A Lens, Side Turn Signal Lamp, LH(FOR DOOR MIRROR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
