Rear Combination Lamp

12 part groups · 2 illustrations

Illustrations

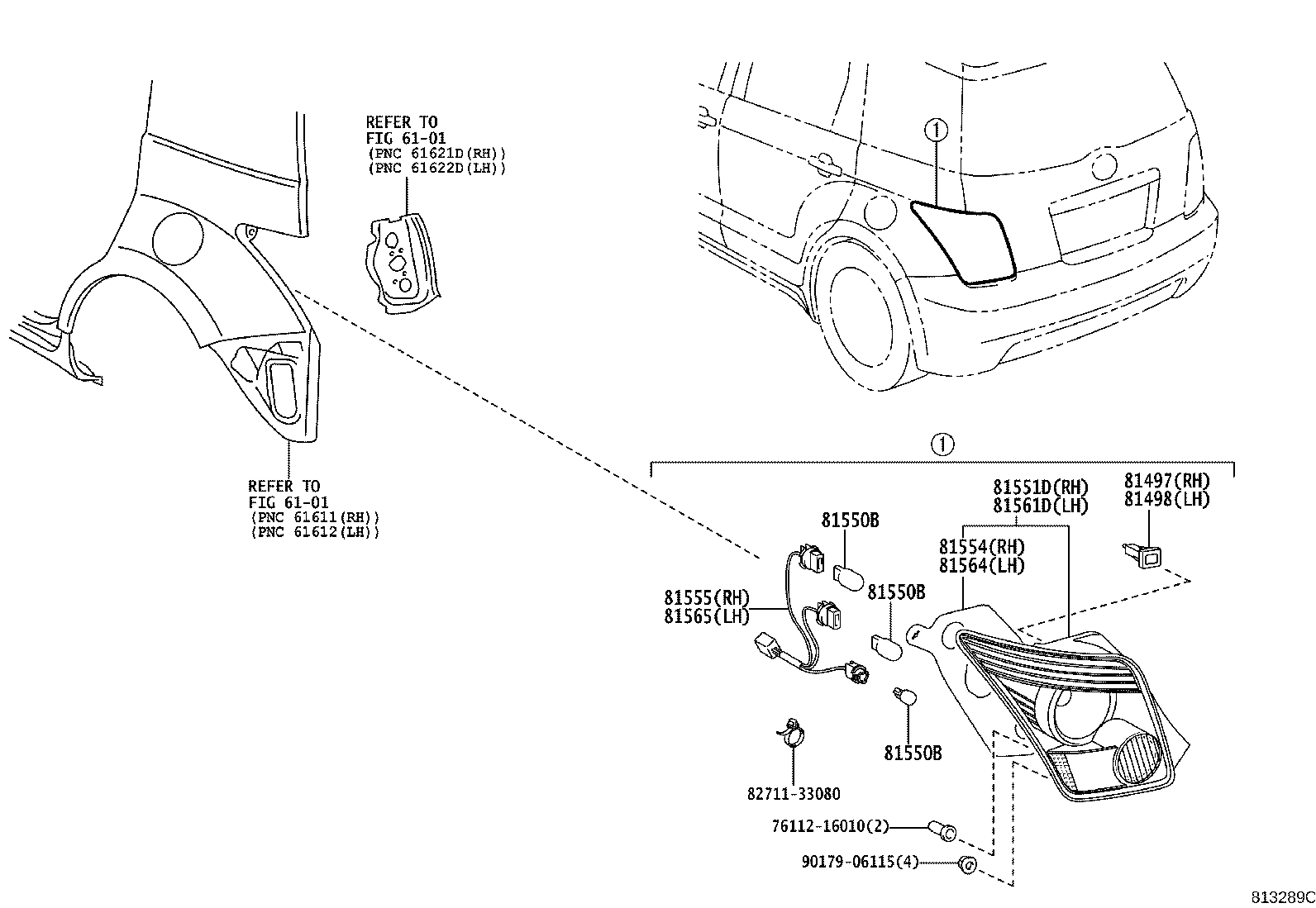

Figure 812530G 812530G 2003-04 → 2005-07 Figure 813289C 813289C 2005-07 → —

Part groups

PNCDescription
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551D Lens & Body, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555B Socket Plug, NO.1
81555C Socket Plug, NO.2
81555E Socket Plug, NO.3
81561D Lens & Body, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
