Toyota Scion XA
2003-04 → 2006-12 · chassis NCP61 · catalogue 117410 · United States
Supported model
Data version 2007-06
Switch & Relay & Computer
66 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 33855A | Cover, Shift Lock Unit |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82610A | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82618 | Fuse, Fuse Block |

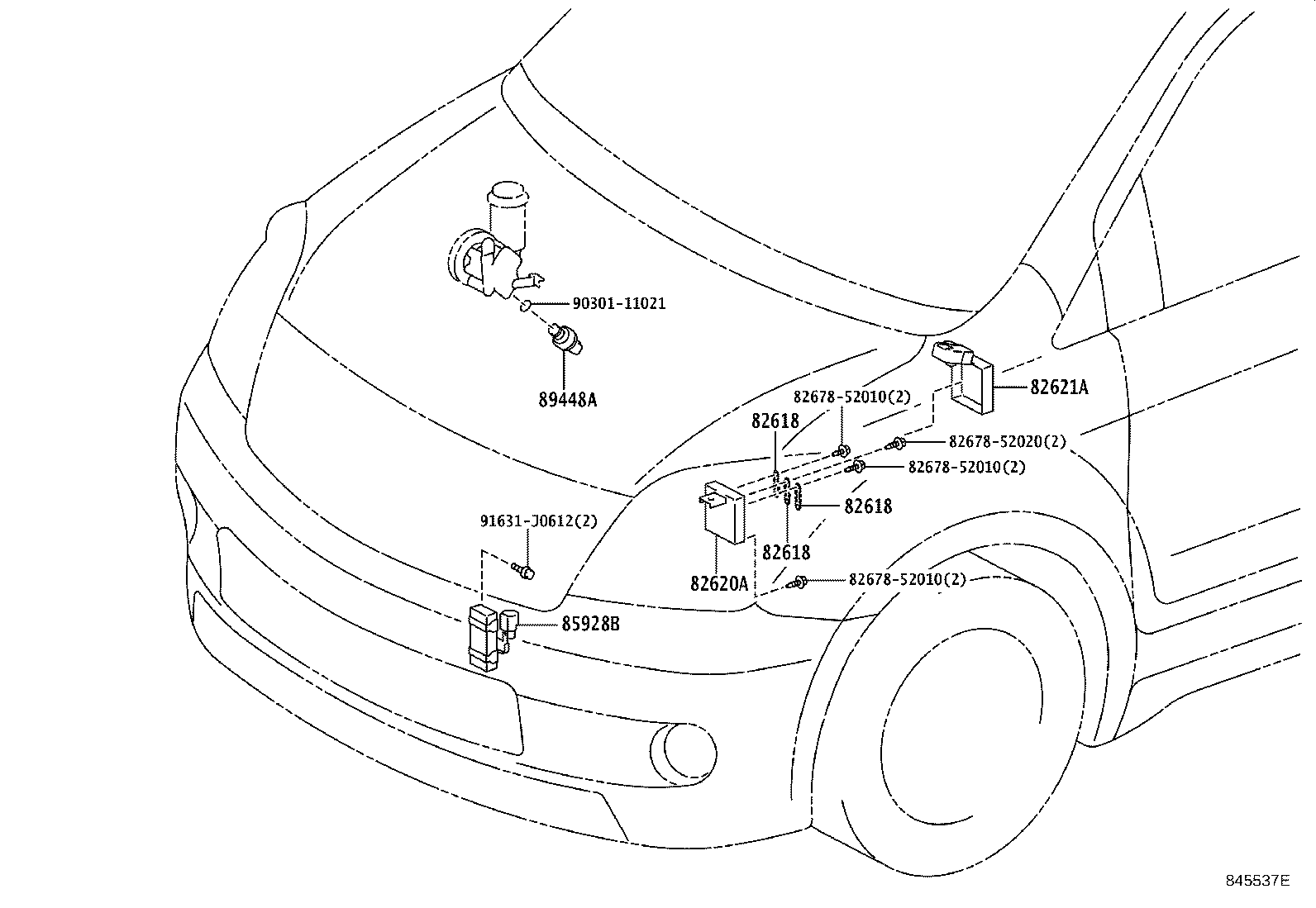

| 82620A | Block Assy, Fusible Link |
| 82621A | Cover, Fusible Link |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82666 | Holder, Connector |

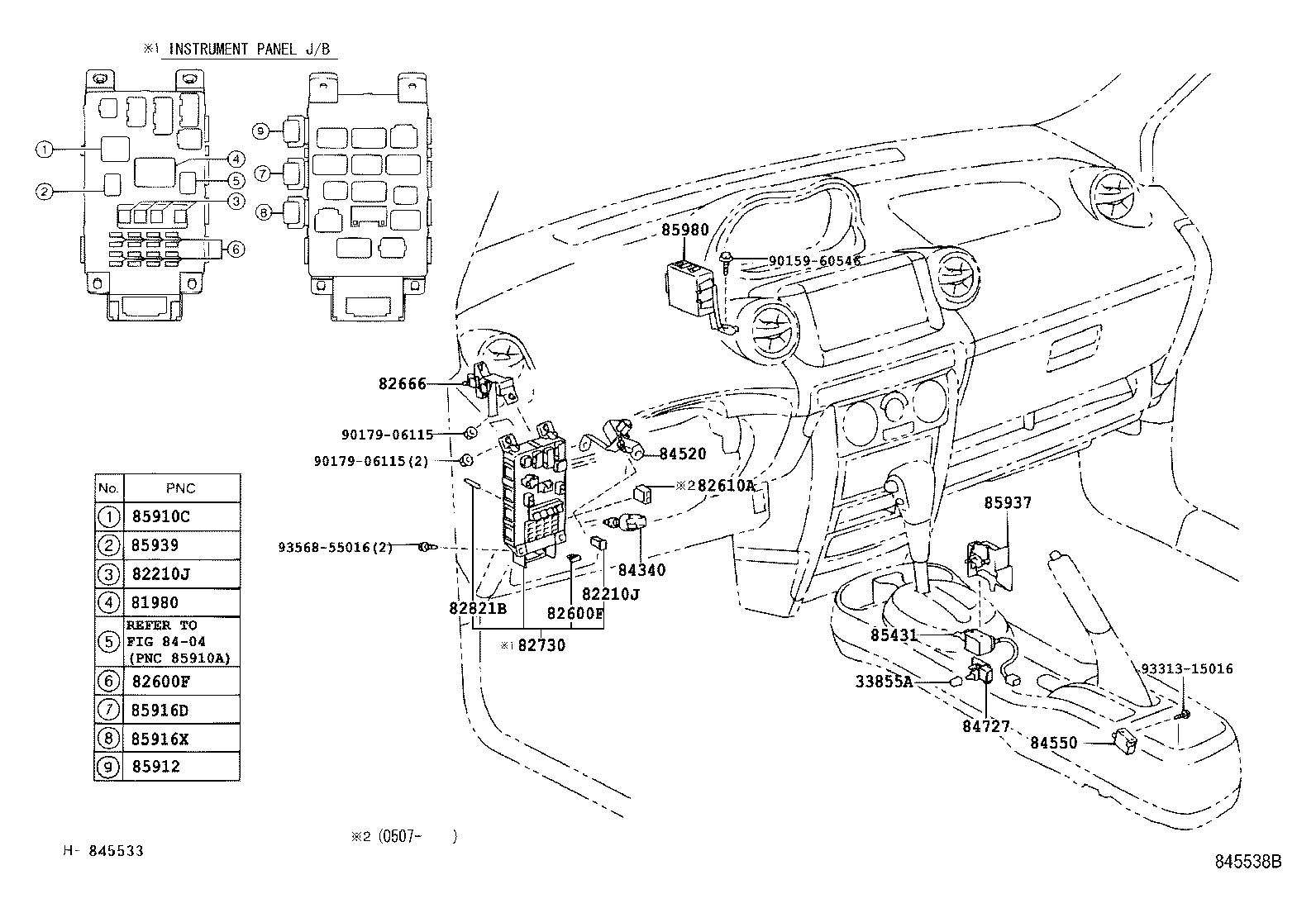

| 82730 | Block Assy, Instrument Panel Junction |

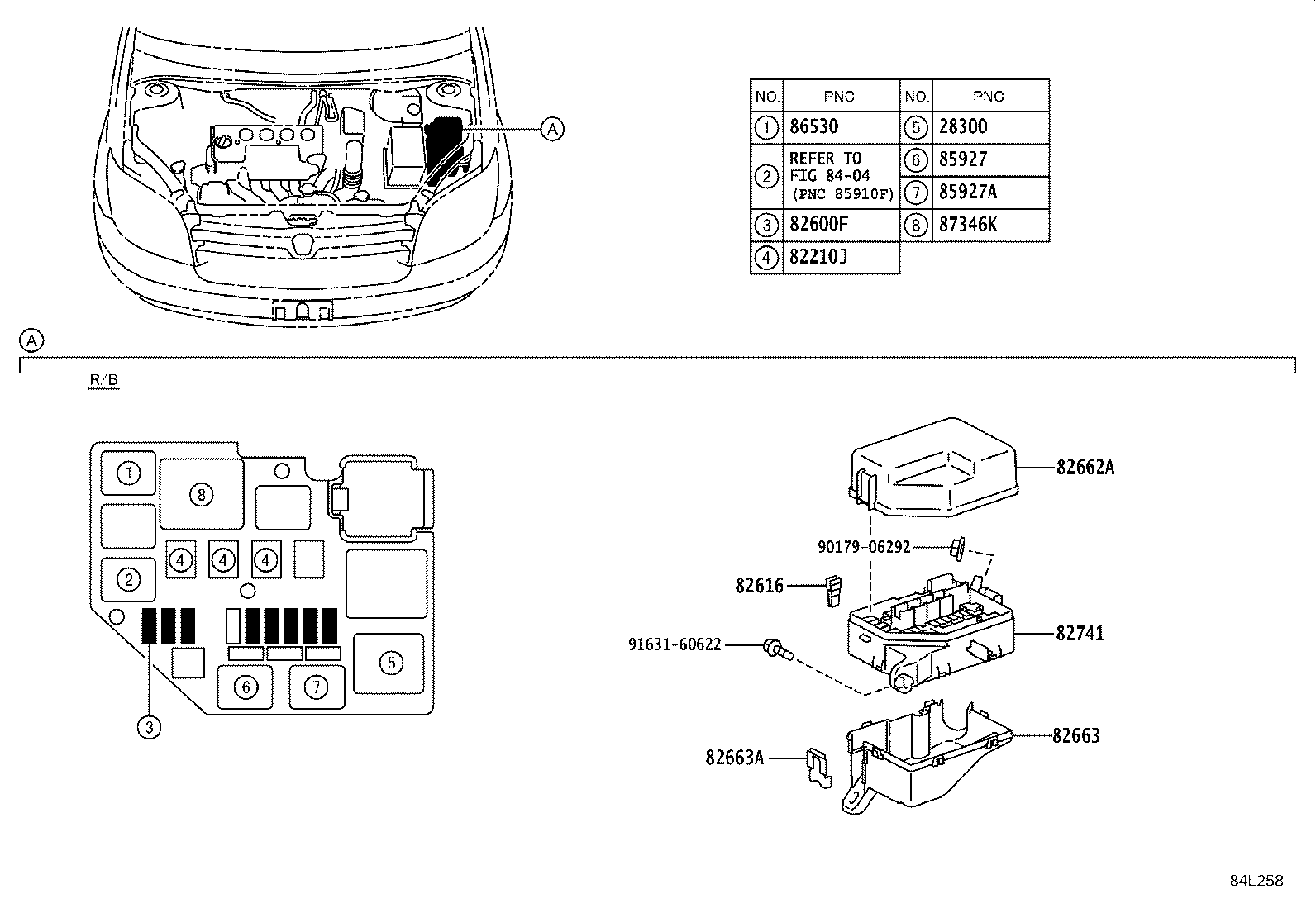

| 82741 | Block, Engine Room Relay |
| 82821B | Cover, Connector |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |

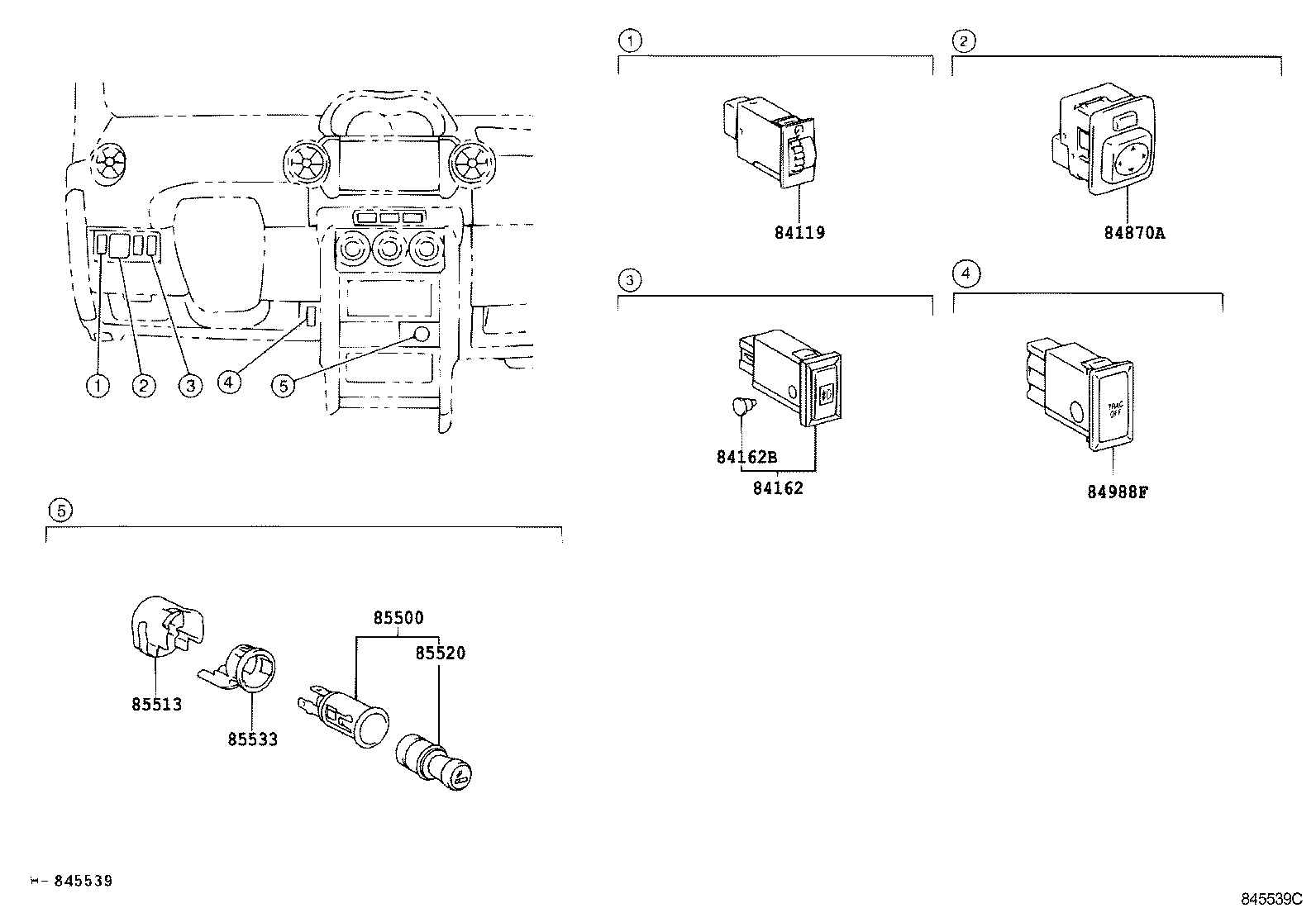

| 84119 | Rheostat, Light Control |

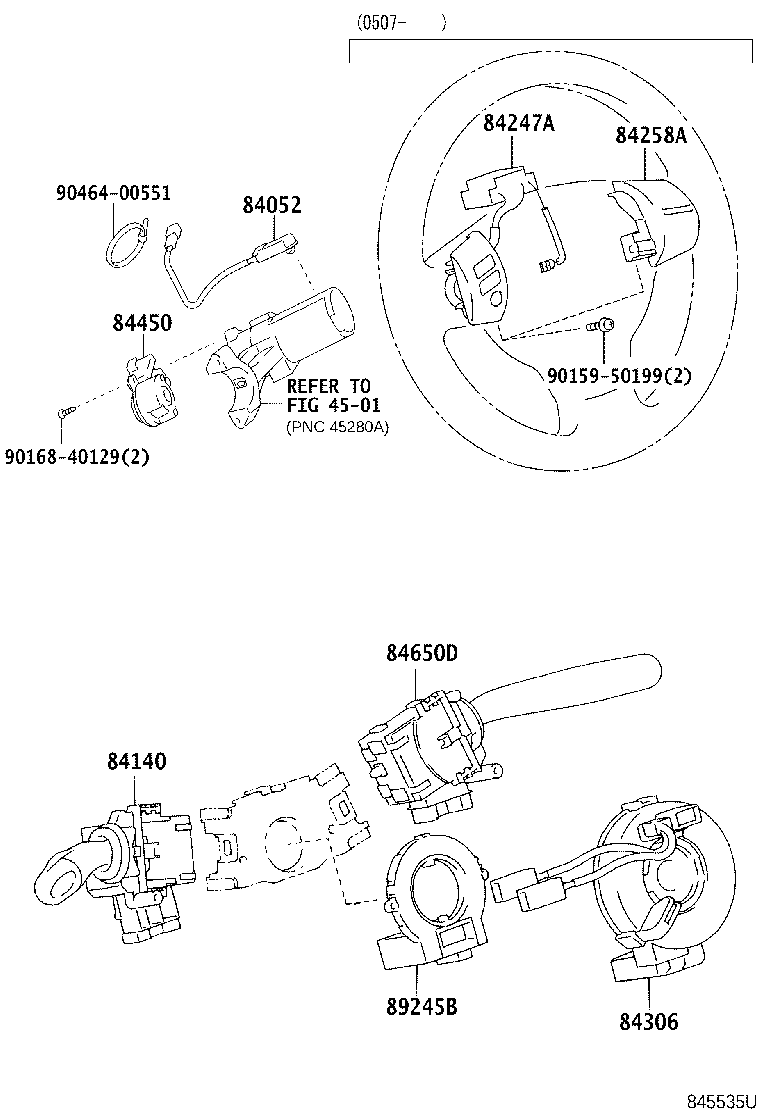

| 84140 | Switch Assy, Headlamp Dimmer |
| 84162 | Switch, Front Fog Lamp |
| 84162B | Bulb, Fog Lamp Switch |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84247A | Switch, Steering Pad, LH |
| 84258A | Cover, Steering Pad, RH |
| 84306 | Cable Sub-assy, Spiral |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84520 | Switch Assy, Clutch Start |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84727 | Switch, Shift Lock Control |

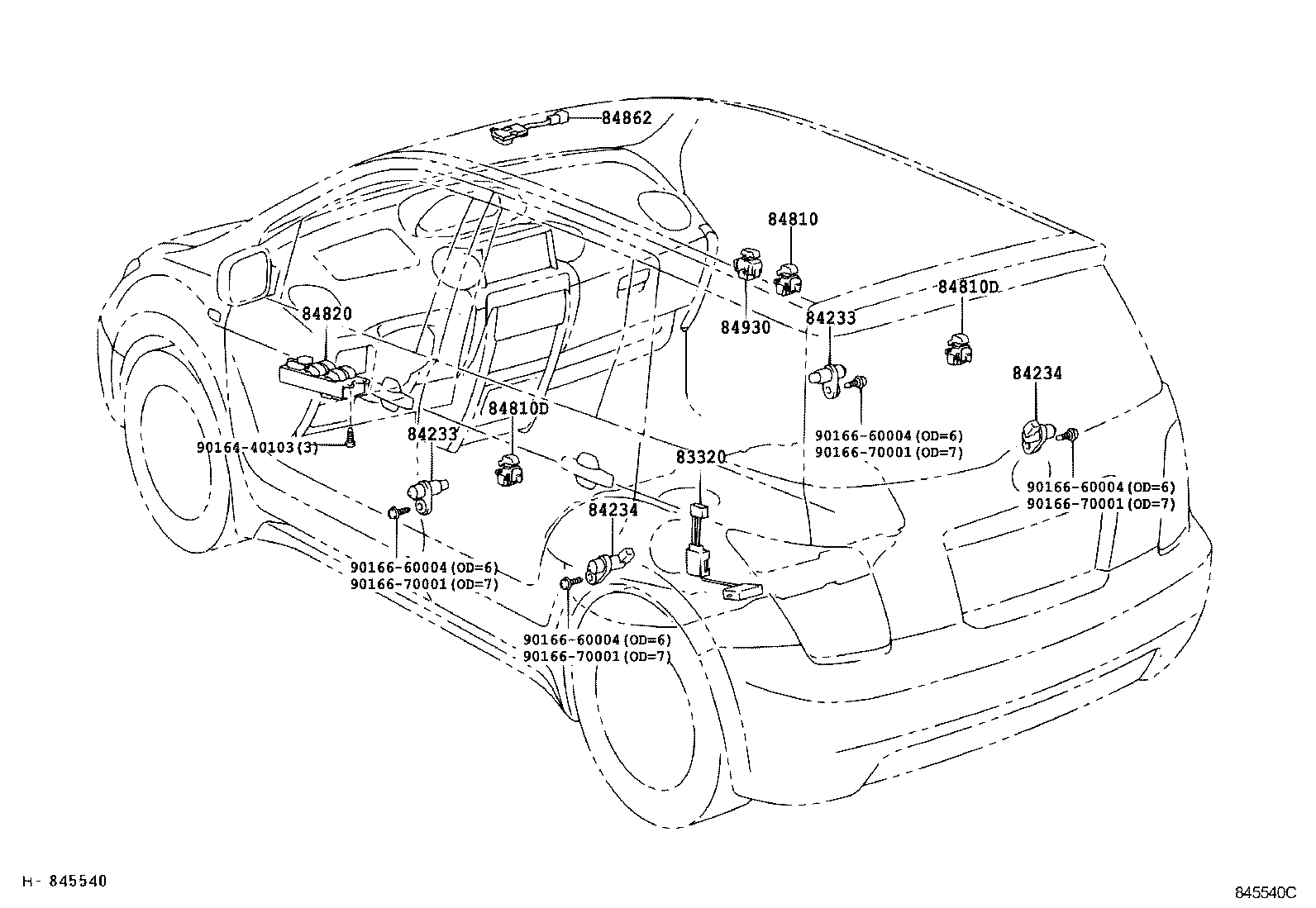

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84862 | Switch, Slide Roof Motor |
| 84870A | Switch Assy, Outer Mirror |
| 84930 | Switch Assy, Door Control |
| 84988F | Switch, Traction Control |
| 85431 | Solenoid, Shift Lock |
| 85500 | Lighter Assy, Cigarette |
| 85513 | Cover, Cigarette Lighter |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85916D | Relay, Fog Lamp |
| 85916X | Relay, Key Illumination |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85928B | Resistor, Cooling Fan |
| 85937 | Protector, Shift Lock Control |
| 85939 | Relay, Power Window |
| 85980 | Relay Assy, Door Control |
| 86530 | Relay Assy, Horn |
| 87346K | Relay, Ptc Heater |
| 89245B | Sensor, Steering |
| 89448A | Sensor, Power Steering Oil Pressure |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89615 | Sensor, Knock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
