Toyota Scion XA

2003-04 → 2006-12 · chassis NCP61 · catalogue 117410 · United States

Supported model Data version 2007-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

7 part groups · 2 illustrations

Illustrations

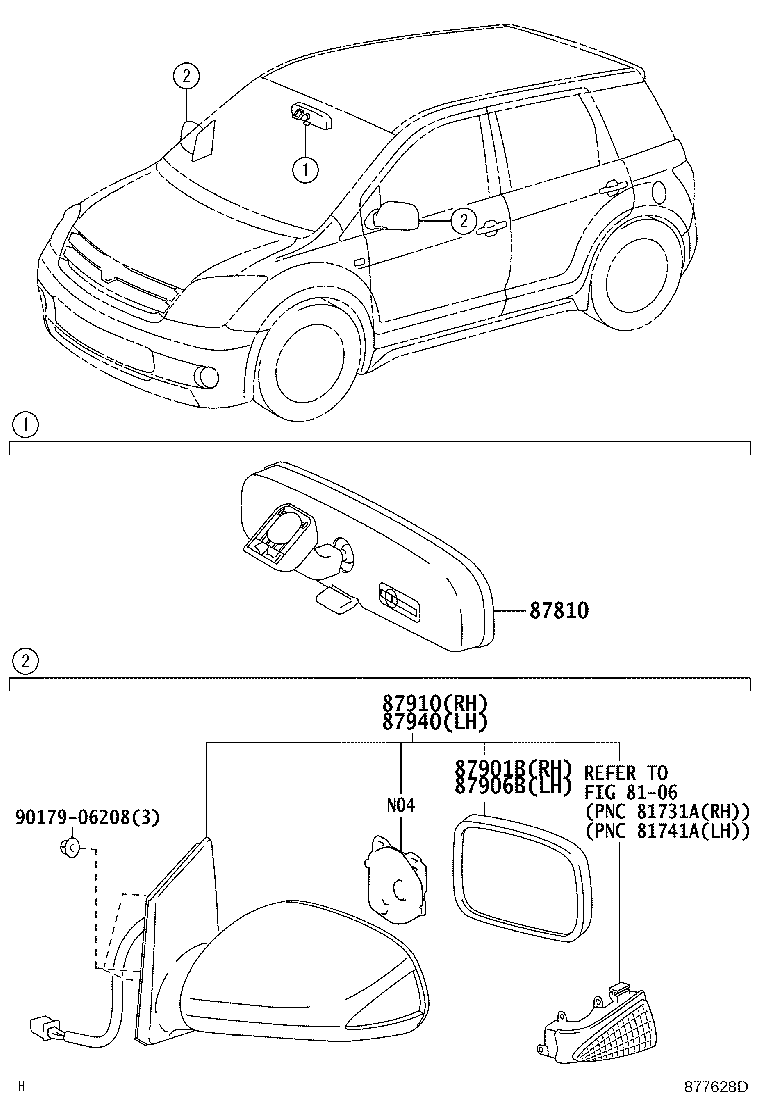

Figure 876187E 876187E 2003-04 → 2005-07 Figure 877628D 877628D 2005-07 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87910 Mirror Assy, Outer Rear View, RH
87915 Cover, Outer Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87945 Cover, Outer Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
