Toyota Scion XA
2003-04 → 2006-12 · chassis NCP61 · catalogue 117410 · United States
Supported model
Data version 2007-06

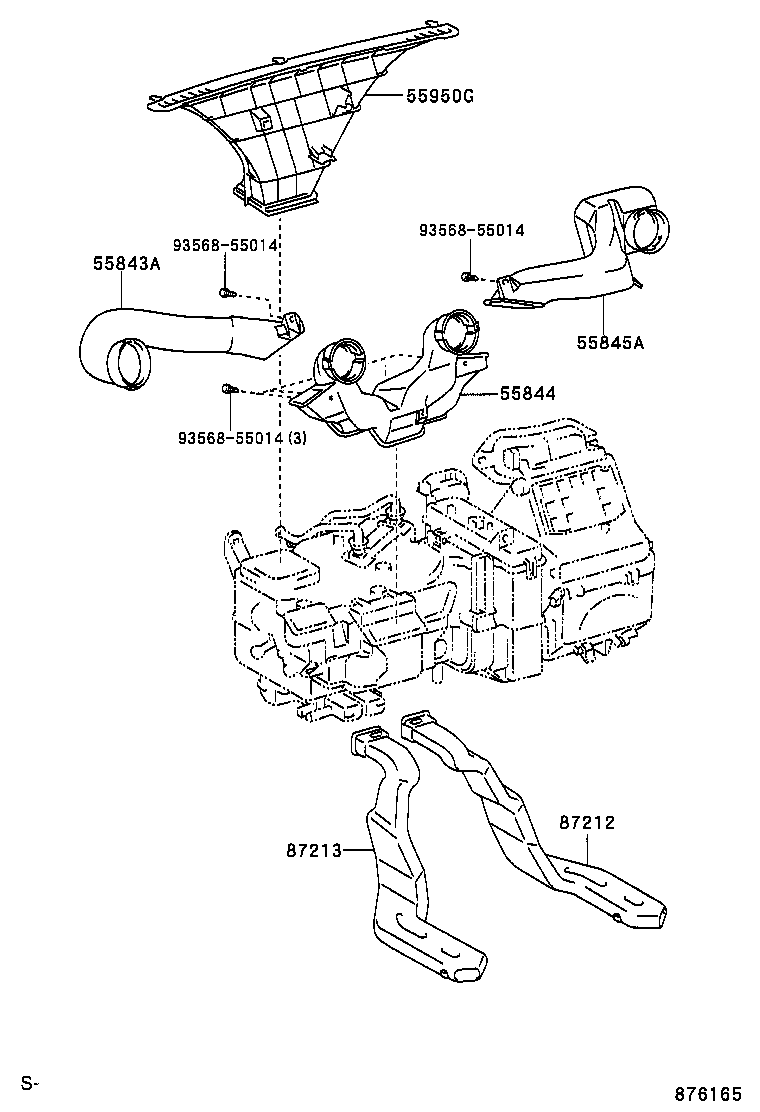

Heating & Air Conditioning - Control & Air Duct
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55905A | Knob, Heater Control |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55918A | Lever, Air Inlet Damper Control |
| 55936B | Switch, Center Cluster Module |
| 55936D | Blub, Center Cluster Module Switch |
| 55937H | Knob, Center Cluster Module, NO.5 |
| 55937J | Knob, Center Cluster Module, NO.6 |
| 55937K | Knob, Center Cluster Module, NO.7 |
| 55950G | Nozzle Assy, Defroster |
| 81940D | Lens Assy, Heater Control |
| 81942A | Sheet, Heater Control Name, NO.1 |
| 81942B | Sheet, Heater Control Name, NO.2 |
| 81942H | Sheet, Heater Control Name, NO.3 |
| 81942J | Sheet, Heater Control Name, NO.4 |
| 81942K | Sheet, Heater Control Name, NO.5 |
| 81950C | Lens Assy, Center Cluster Module Indicator |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87290E | Switch Assy, Heater |
| 88601H | Bulb, Indicator Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
