Toyota Scion XA

2003-04 → 2006-12 · chassis NCP61 · catalogue 117410 · United States

Supported model Data version 2007-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

8 part groups · 4 illustrations

Illustrations

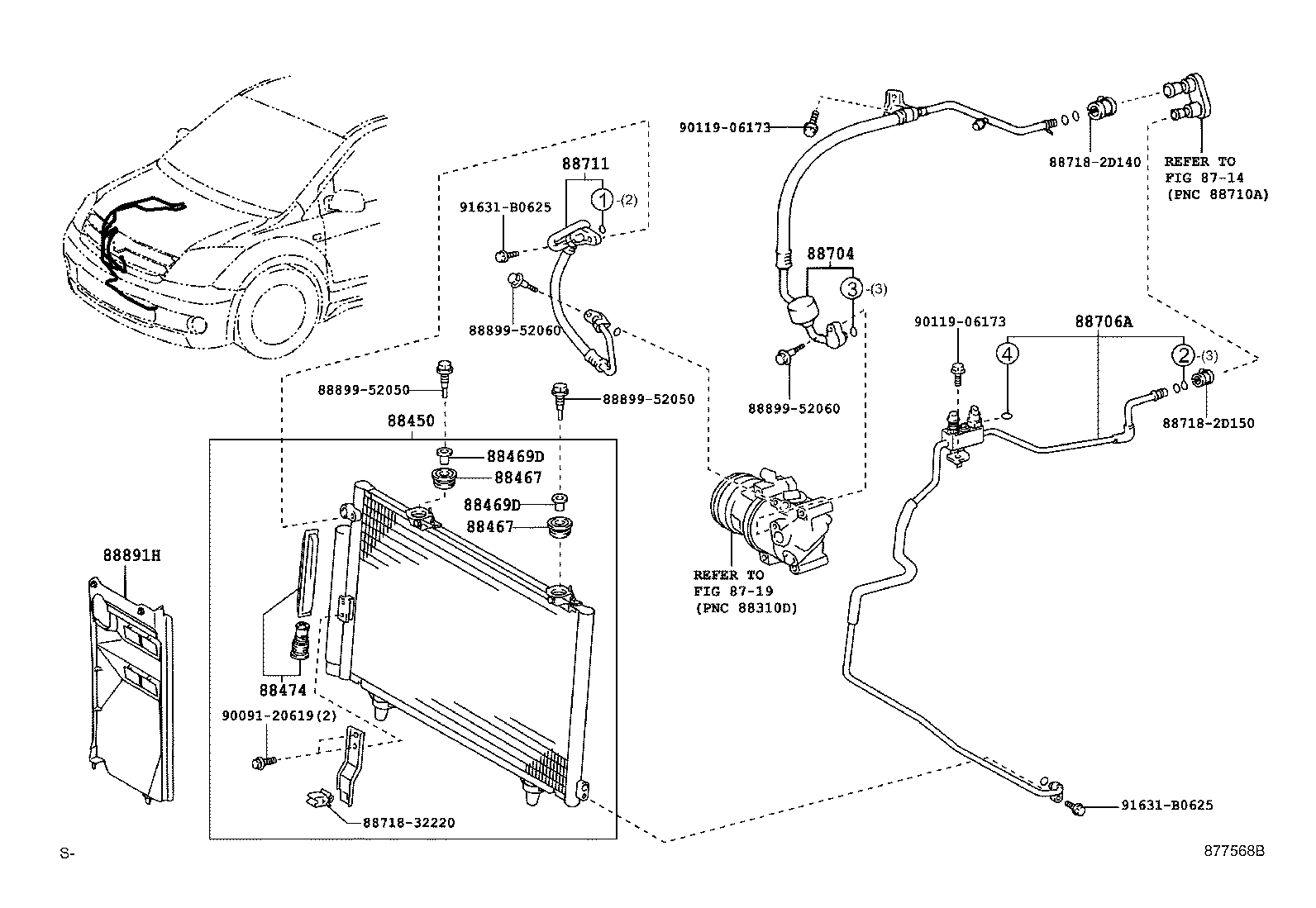

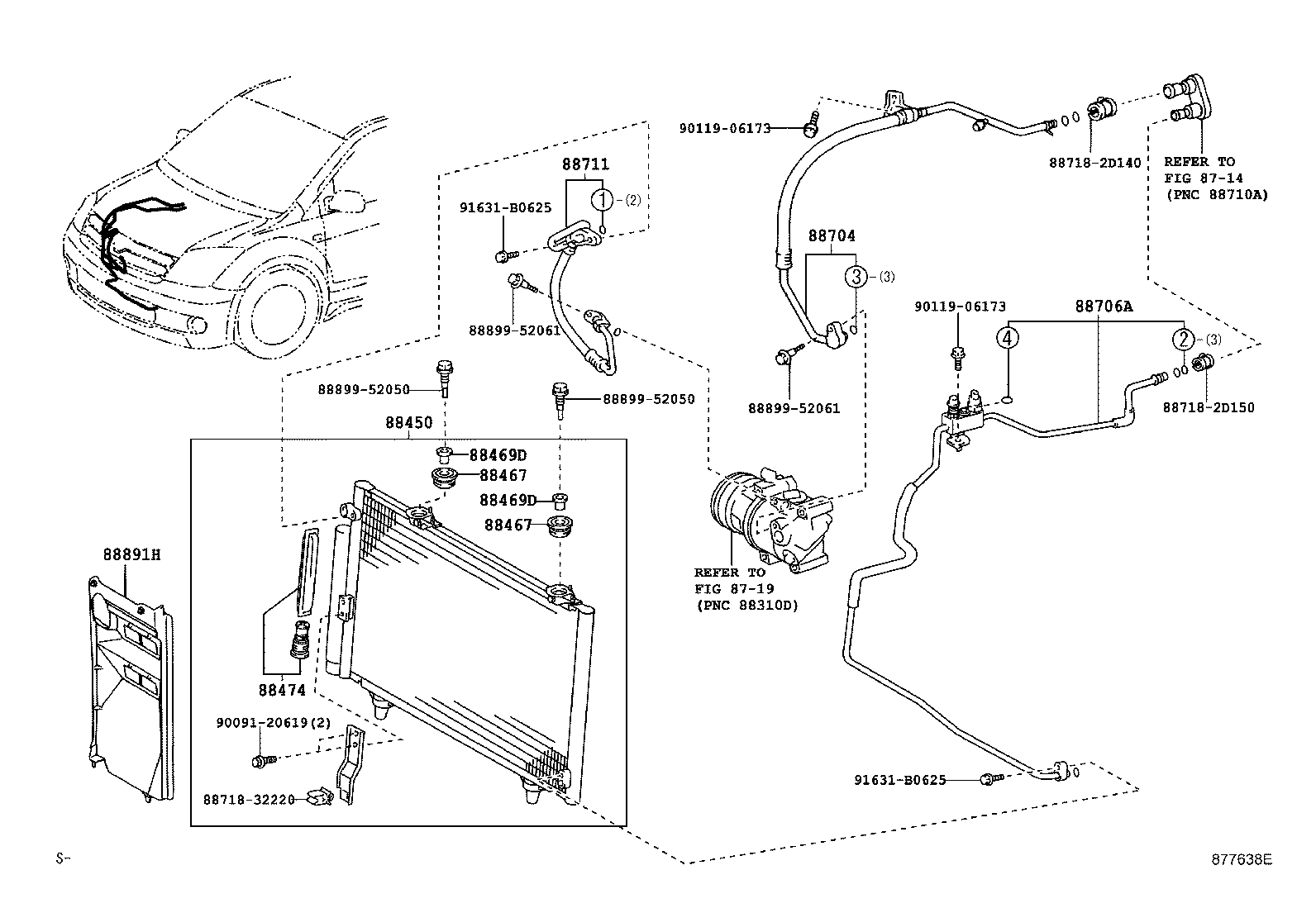

Figure 876192C 876192C 2003-04 → 2005-01 Figure 877568B 877568B 2005-01 → 2005-07 Figure 877638E 877638E 2005-07 → — Figure 874869 874869 2003-04 → —

Part groups

PNCDescription
88450 Condenser Assy, W/Receiver
88467 Cushion, Cooler Condenser, NO.1
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88711 Hose, Cooler Refrigerant Discharge, NO.1
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
