Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

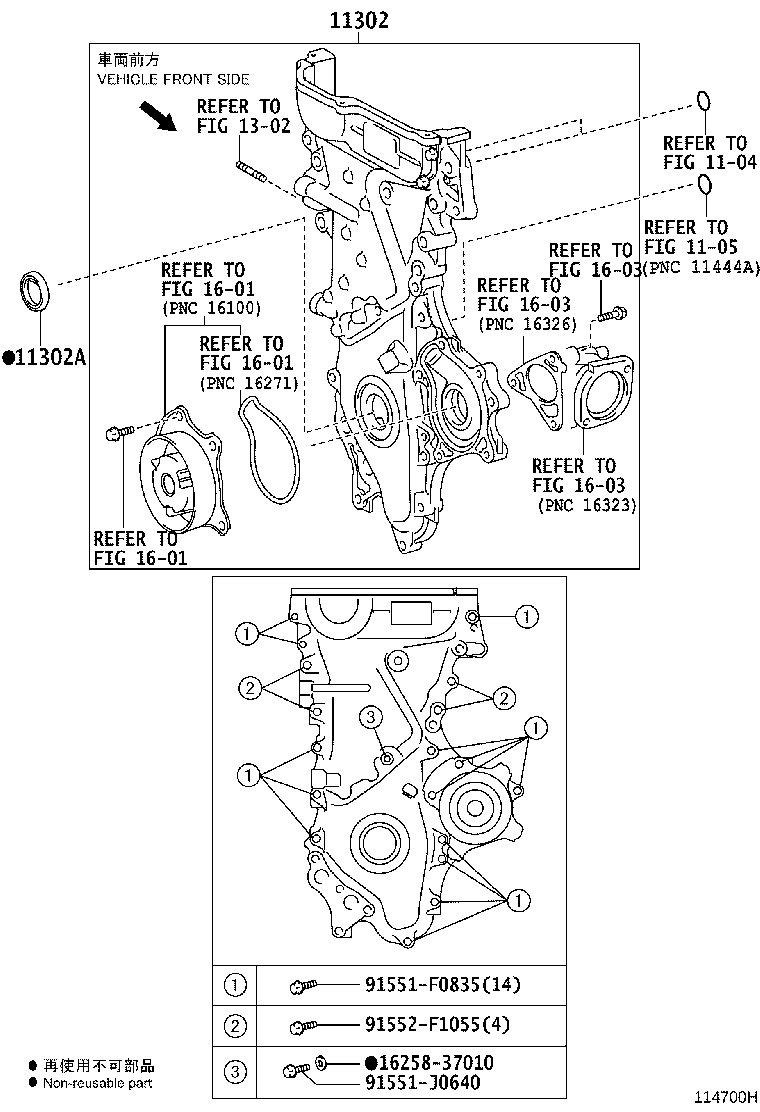

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11302 — Cover Sub-assy, Timing Chain OR Belt | ||||
| 11310-37020 |
Cover Sub-assy, Timing Chain OR Belt
2007-06 → 2012-01
ended
|
2ZRFE ZSP110 | — | |
| 11310-37021 |
Cover Sub-assy, Timing Chain OR Belt
2012-01 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 11302A — Seal, Oil(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-38089 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2007-06 → 2011-10
ended
|
2ZRFE ZSP110 | — | |
| 90311-38096 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2011-10 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
