Exploded illustration 114921G 12351 — DAMPER, ENGINE MOUNTING (2 parts) 12372A — INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (3 parts) 9010510539 — not listed in this catalogue 9010510539 — not listed in this catalogue 9010510539 — not listed in this catalogue 9010510494 — not listed in this catalogue 9010510550 — not listed in this catalogue 9017810029 — not listed in this catalogue 9017908068 — not listed in this catalogue 12511 — BRACKET, ALTERNATOR, NO.1 (1 parts) 91551F0825 — not listed in this catalogue 12315A — BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) (1 parts) 9017810028 — not listed in this catalogue 9155281080 — not listed in this catalogue 12313 — BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) (1 parts) 12363A — ROD, ENGINE MOVING CONTROL (2 parts) 9010510301 — not listed in this catalogue 9011914139 — not listed in this catalogue 9010514178 — not listed in this catalogue 12365 — COVER, ENGINE MOVING CONTROL ROD (1 parts) 12325A — BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (2 parts) 9011612053 — not listed in this catalogue 12305 — INSULATOR SUB-ASSY, ENGINE MOUNTING, RH (4 parts) 91552L1240 — not listed in this catalogue 12317 — STAY, ENGINE MOUNTING, RH (1 parts) 91553L0822 — not listed in this catalogue 9415121241 — not listed in this catalogue 9010510436 — not listed in this catalogue 91552L1240 — not listed in this catalogue 9010510539 — not listed in this catalogue 91552K1025 — not listed in this catalogue 9010510494 — not listed in this catalogue 12321B — INSULATOR SUB-ASSY, DRIVE SHAFT HEAT (3 parts) 12321B — INSULATOR SUB-ASSY, DRIVE SHAFT HEAT (3 parts) 1701 — not listed in this catalogue 9017908256 — not listed in this catalogue

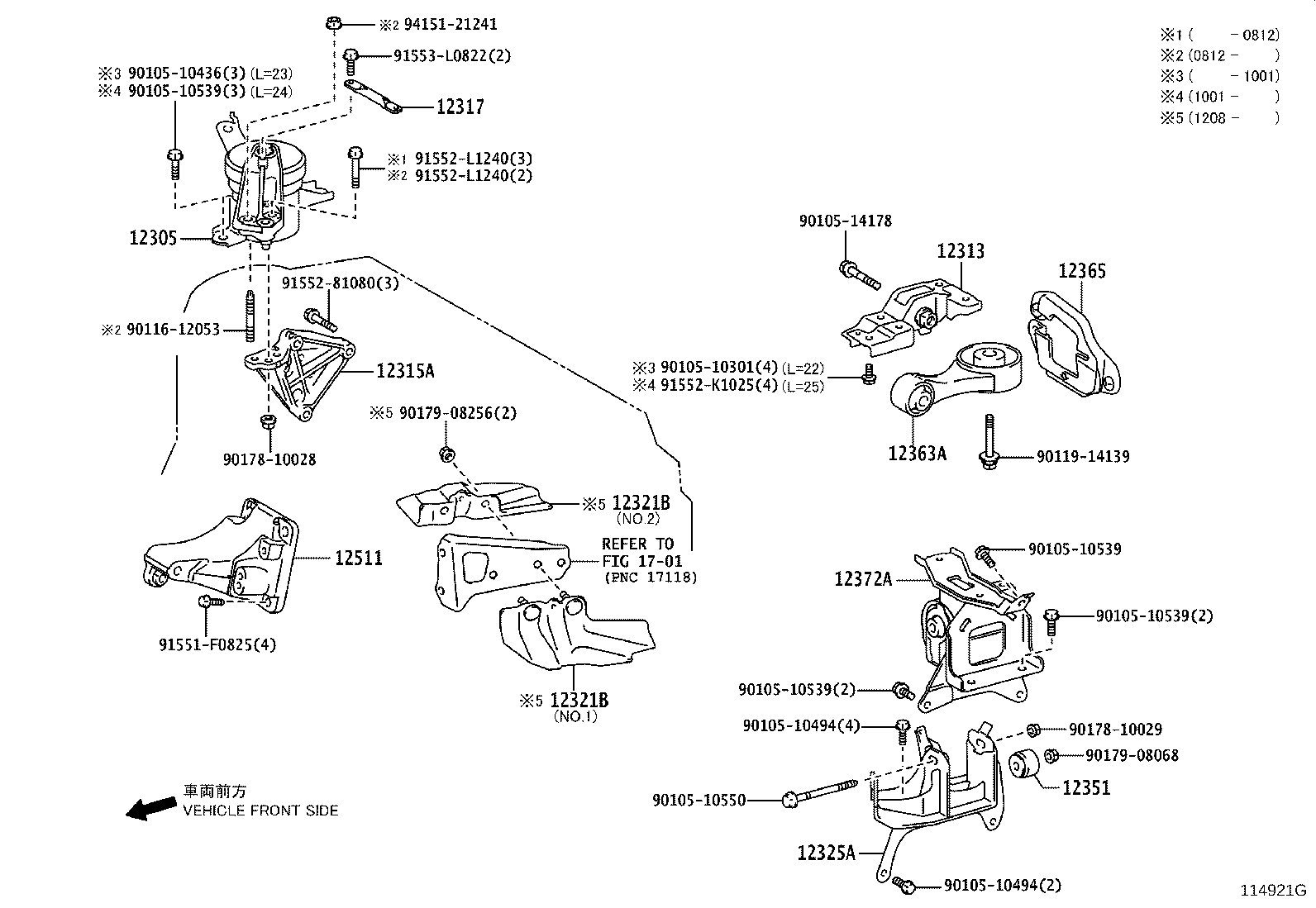

114921G · 12 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
21 parts on this figure
Part number Description Fitment Price
12305 — Insulator Sub-assy, Engine Mounting, RH
12305-37040 Insulator Sub-assy, Engine Mounting, RH
2007-06 → 2007-12 ended
2ZRFE ZSP110 5F —
12305-37090 Insulator Sub-assy, Engine Mounting, RH
2007-06 → 2008-01 ended
2ZRFE ZSP110 4FC —
12305-37091 Insulator Sub-assy, Engine Mounting, RH
2008-02 → 2014-07 ended
2ZRFE ZSP110 4FC —
12305-37190 Insulator Sub-assy, Engine Mounting, RH
2008-01 → 2014-07 ended
2ZRFE ZSP110 5F —
12313 — Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12313-37010 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2007-06 → 2014-07 ended
2ZRFE ZSP110 5F —
12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12315-37040 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
12317 — Stay, Engine Mounting, RH
12317-37010 Stay, Engine Mounting, RH
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
12321B — Insulator Sub-assy, Drive Shaft Heat
43409-12060 note Insulator Sub-assy, Drive Shaft Heat
2012-08 → 2014-07 ended
2ZRFE ZSP110 —
43409-52030 Insulator Sub-assy, Drive Shaft Heat
2007-06 → 2012-08 ended
2ZRFE ZSP110 4FC —
43498-12051 note Insulator Sub-assy, Drive Shaft Heat
2012-08 → 2014-07 ended
2ZRFE ZSP110 —
12325A — Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12325-37030 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-06 → 2014-07 ended
2ZRFE ZSP110 5F —
12325-37060 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-06 → 2014-07 ended
2ZRFE ZSP110 4FC —
12351 — Damper, Engine Mounting
12351-21070 Damper, Engine Mounting
2007-06 → 2014-07 ended
2ZRFE ZSP110 5F —
12351-21080 Damper, Engine Mounting
2007-06 → 2014-07 ended
2ZRFE ZSP110 4FC —
12363A — Rod, Engine Moving Control
12363-21080 Rod, Engine Moving Control
2007-06 → 2014-07 ended
2ZRFE ZSP110 4FC —
12363-37010 Rod, Engine Moving Control
2007-06 → 2014-07 ended
2ZRFE ZSP110 5F —
12365 — Cover, Engine Moving Control Rod
12365-40010 Cover, Engine Moving Control Rod
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12372-37020 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-06 → 2009-02 ended
2ZRFE ZSP110 5F —
12372-37021 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2009-03 → 2014-07 ended
2ZRFE ZSP110 5F —
12372-37100 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-06 → 2014-07 ended
2ZRFE ZSP110 4FC —
12511 — Bracket, Alternator, NO.1
12511-37010 Bracket, Alternator, NO.1
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
