Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

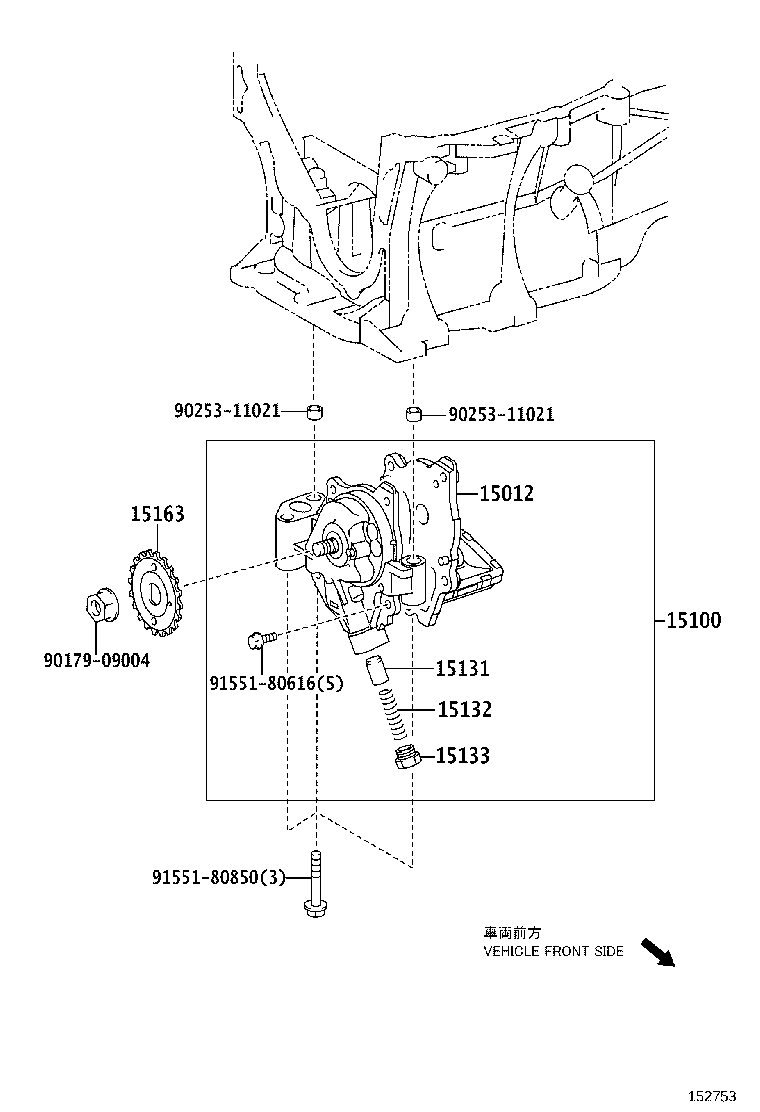

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15012 — Cover Sub-assy, Oil Pump | ||||
| 15012-37010 |
Cover Sub-assy, Oil Pump
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 15100 — Pump Assy, Oil | ||||
| 15100-37030 |
Pump Assy, Oil
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 15131 — Valve, Oil Pump Relief | ||||
| 15131-0A040 |
Valve, Oil Pump Relief
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 15132 — Spring, Oil Pump Relief Valve | ||||
| 15132-46060 |
Spring, Oil Pump Relief Valve
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 15133 — Plug, Oil Pump Relief Valve | ||||
| 15133-28020 |
Plug, Oil Pump Relief Valve
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 15163 — Gear, Oil Pump Drive Shaft | ||||
| 15163-28010 |
Gear, Oil Pump Drive Shaft
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
