Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

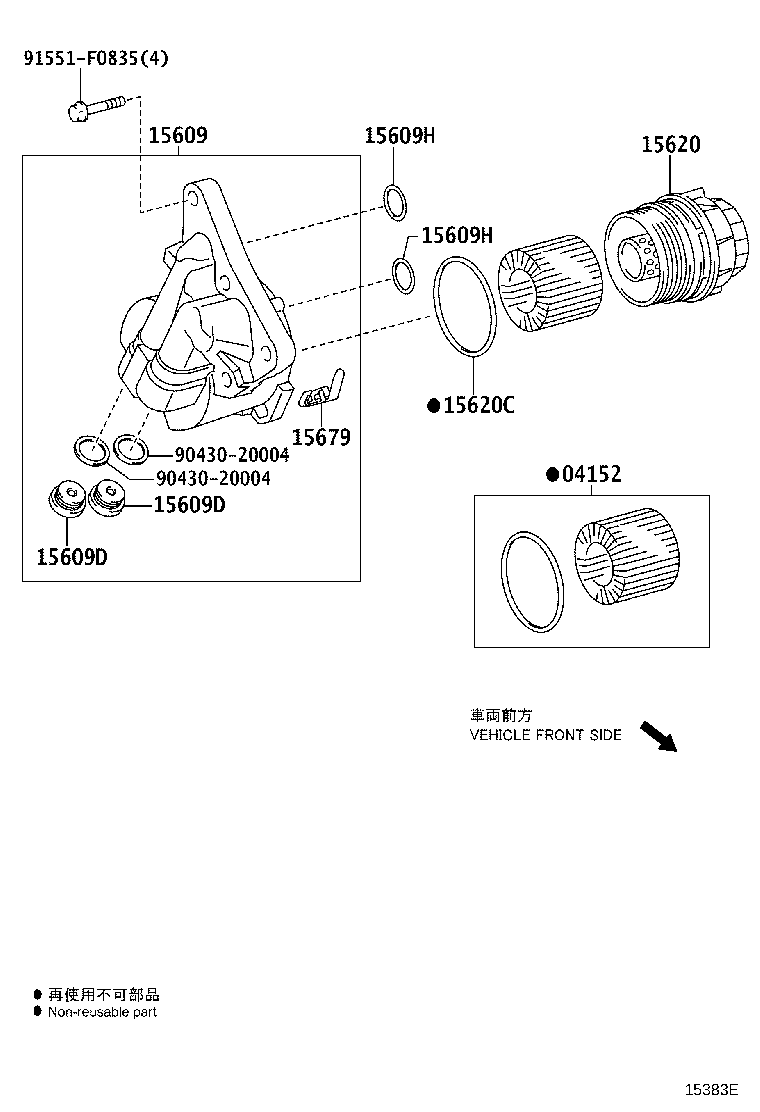

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04152 — Element Kit, Oil Filter | ||||
| 04152-37010 |
Element Kit, Oil Filter
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 15609 — Bracket Sub-assy, Oil Filter | ||||
| 15609-37020 |
Bracket Sub-assy, Oil Filter
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 15609D — Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 15609H — Ring, O(FOR OIL FILTER BRACKET) | ||||
| 96723-24020 |
Ring, O(FOR OIL FILTER BRACKET)
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 15620 — Cap Assy, Oil Filter | ||||
| 15620-37010 |
Cap Assy, Oil Filter
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 15620C — Gasket(FOR OIL FILTER CAP) | ||||
| 90301-69011 |
Gasket(FOR OIL FILTER CAP)
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 15679 — Clip, Oil Filter Bracket | ||||
| 15679-37010 |
Clip, Oil Filter Bracket
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
