Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

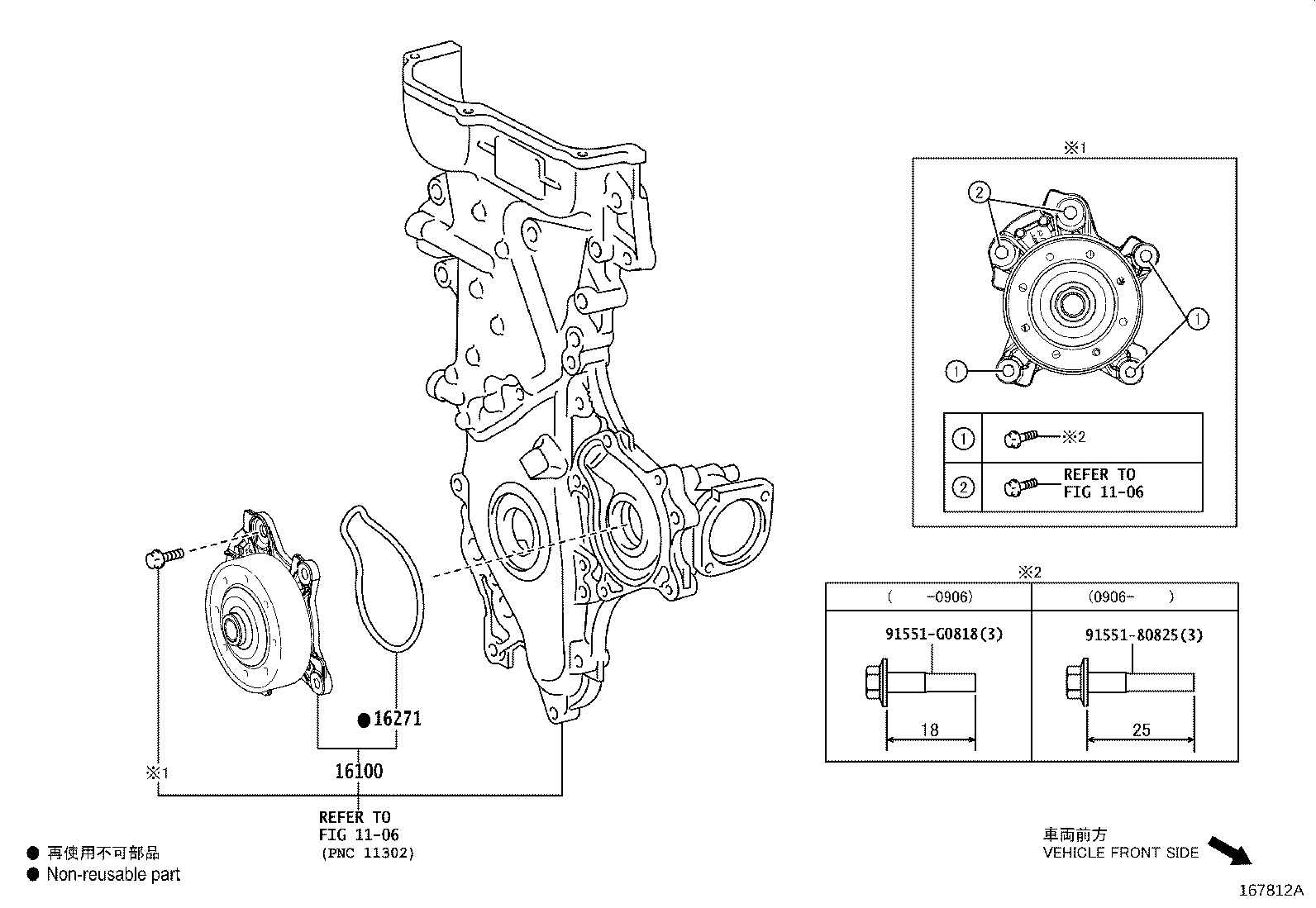

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-39465 |
Pump Assy, Engine Water
2007-06 → 2009-06
ended
|
2ZRFE ZSP110 | — | |
| 16100-39466 |
Pump Assy, Engine Water
2009-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 16271 — Gasket, Water Pump | ||||
| 16271-37010 |
Gasket, Water Pump
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
