Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

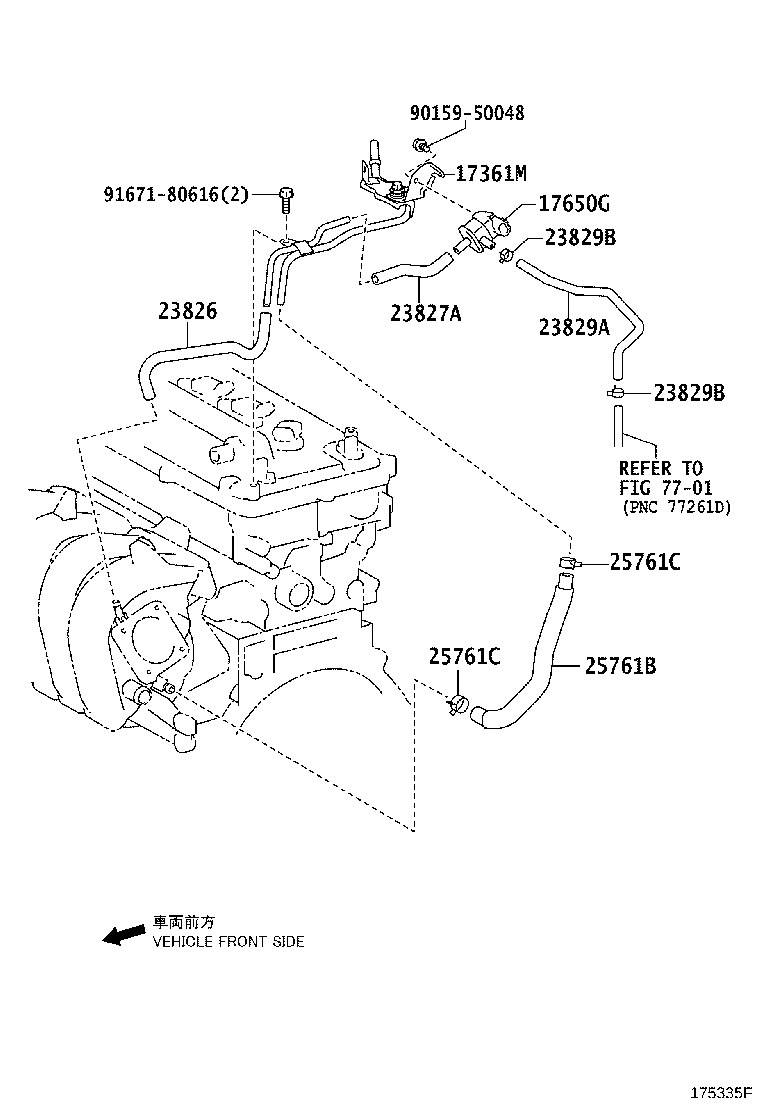

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17361M — Tube, Air | ||||
| 17361-37010 |
Tube, Air
2007-06 → 2009-06
ended
|
2ZRFE ZSP110 | — | |
| 17361-37011 |
Tube, Air
2009-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 17650G — Valve, Duty Vacuum Switching | ||||
| 90910-12276 |
Valve, Duty Vacuum Switching
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 23826 — Hose, Fuel Vapor Feed, NO.1 | ||||
| 23826-37020 |
Hose, Fuel Vapor Feed, NO.1
2007-06 → 2009-06
ended
|
2ZRFE ZSP110 | — | |
| 23826-37021 |
Hose, Fuel Vapor Feed, NO.1
2009-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 23827A — Hose, Fuel Vapor Feed, NO.2 | ||||
| 23827-37020 |
Hose, Fuel Vapor Feed, NO.2
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 23829A — Hose, Fuel Vapor Feed | ||||
| 23826-37030 |
Hose, Fuel Vapor Feed
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 23829B — Clip(FOR FUEL VAPOR FEED HOSE) | ||||
| 90466-11003 |
Clip(FOR FUEL VAPOR FEED HOSE)
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 25761B — Hose, Vaccum Transmitting, NO.1 | ||||
| 25761-37010 |
Hose, Vaccum Transmitting, NO.1
2007-06 → 2009-06
ended
|
2ZRFE ZSP110 | — | |
| 25761-37011 |
Hose, Vaccum Transmitting, NO.1
2009-09 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 25761-37060 |
Hose, Vaccum Transmitting, NO.1
2009-06 → 2009-09
ended
|
2ZRFE ZSP110 | — | |
| 25761C — Clip(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96133-41500 |
Clip(VACCUM TRANSMITTING HOSE NO.1)
2009-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 96136-41801 |
Clip(VACCUM TRANSMITTING HOSE NO.1)
2007-06 → 2009-06
ended
|
2ZRFE ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
