Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

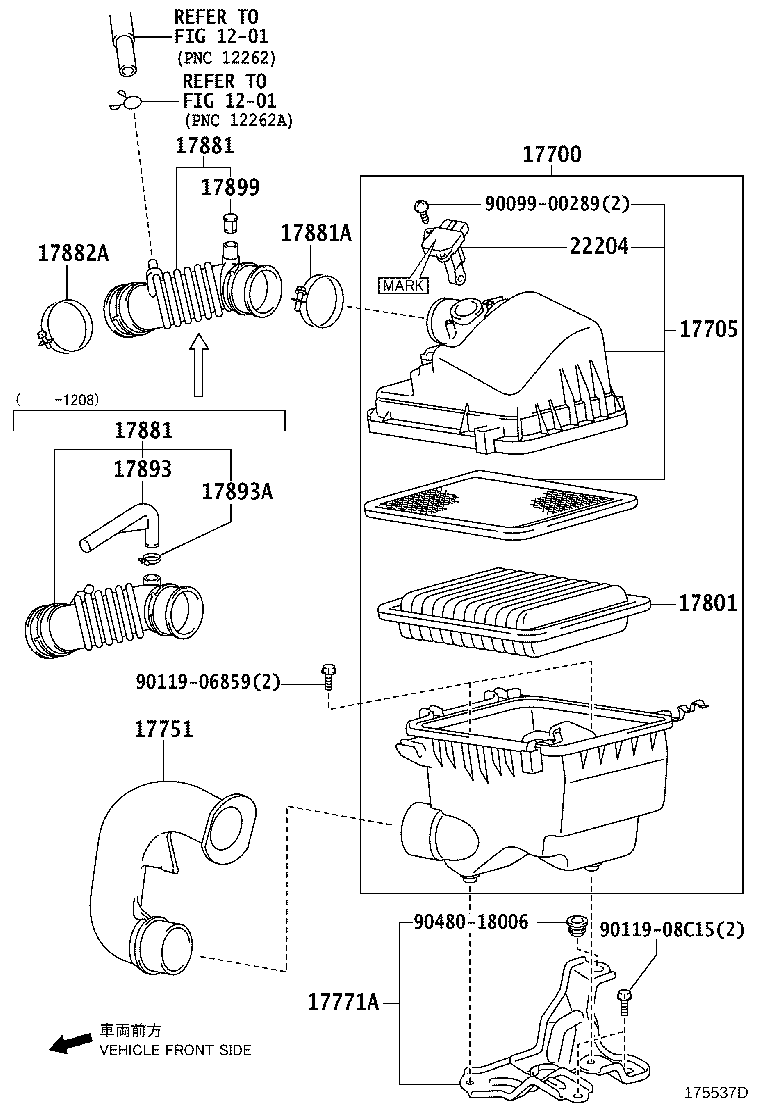

Exploded illustration 175537D 17700 — CLEANER ASSY, AIR (3 parts) 17751 — INLET, AIR CLEANER, NO.1 (1 parts) 17771A — BRACKET, AIR CLEANER (1 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (1 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (3 parts) 17881 — HOSE, AIR CLEANER, NO.1 (2 parts) 17899 — PLUG, RESONATOR HOSE (1 parts) 17881 — HOSE, AIR CLEANER, NO.1 (2 parts) 17893 — RESONATOR, INTAKE AIR (1 parts) 17893A — CLAMP, HOSE (1 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (2 parts) 22204 — METER SUB-ASSY, INTAKE AIR FLOW (9 parts) 9009900289 — not listed in this catalogue 9011906859 — not listed in this catalogue 9048018006 — not listed in this catalogue 9011908C15 — not listed in this catalogue 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (2 parts) 1201 — not listed in this catalogue 1201 — not listed in this catalogue
175537D · 13 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
27 parts on this figure
Part number Description Fitment Price
17700 — Cleaner Assy, Air
17700-37220 Cleaner Assy, Air
2007-06 → 2011-03 ended
2ZRFE ZSP110 —
17700-37221 Cleaner Assy, Air
2011-04 → 2012-08 ended
2ZRFE ZSP110 —
17700-37320 Cleaner Assy, Air
2012-08 → 2014-07 ended
2ZRFE ZSP110 —
17705 — Cap Sub-assy, Air Cleaner
17705-37090 Cap Sub-assy, Air Cleaner
2007-06 → 2011-03 ended
2ZRFE ZSP110 —
17705-37091 Cap Sub-assy, Air Cleaner
2011-04 → 2012-08 ended
2ZRFE ZSP110 —
17705-37190 Cap Sub-assy, Air Cleaner
2012-08 → 2014-07 ended
2ZRFE ZSP110 —
17751 — Inlet, Air Cleaner, NO.1
17751-21160 Inlet, Air Cleaner, NO.1
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
17771A — Bracket, Air Cleaner
17771-21050 Bracket, Air Cleaner
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
17801 — Element Sub-assy, Air Cleaner Filter
17801-21050 Element Sub-assy, Air Cleaner Filter
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
17881 — Hose, Air Cleaner, NO.1
17880-37050 Hose, Air Cleaner, NO.1
2007-06 → 2012-08 ended
2ZRFE ZSP110 —
17880-37220 Hose, Air Cleaner, NO.1
2012-08 → 2014-07 ended
2ZRFE ZSP110 —
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10690 Clamp(FOR AIR CLEANER HOSE, NO.1)
2012-08 → 2014-07 ended
2ZRFE ZSP110 —
96111-10780 Clamp(FOR AIR CLEANER HOSE, NO.1)
2007-06 → 2012-08 ended
2ZRFE ZSP110 —
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.2)
2012-08 → 2014-07 ended
2ZRFE ZSP110 —
96111-10780 Clamp(FOR AIR CLEANER HOSE, NO.2)
2007-06 → 2012-08 ended
2ZRFE ZSP110 —
17893 — Resonator, Intake Air
17893-37020 Resonator, Intake Air
2007-06 → 2012-08 ended
2ZRFE ZSP110 —
17893A — Clamp, Hose
96111-10330 Clamp, Hose
2007-06 → 2012-08 ended
2ZRFE ZSP110 —
17899 — Plug, Resonator Hose
17899-37010 Plug, Resonator Hose
2012-08 → 2014-07 ended
2ZRFE ZSP110 —
22204 — Meter Sub-assy, Intake Air Flow
22204-0H010 note Meter Sub-assy, Intake Air Flow
2011-04 → 2012-08 ended
2ZRFE ZSP110 —
22204-0P010 note Meter Sub-assy, Intake Air Flow
2011-04 → 2012-08 ended
2ZRFE ZSP110 —
22204-0T010 note Meter Sub-assy, Intake Air Flow
2011-04 → 2012-08 ended
2ZRFE ZSP110 —
22204-0T040 note Meter Sub-assy, Intake Air Flow
2012-08 → 2014-07 ended
2ZRFE ZSP110 —
22204-0V010 note Meter Sub-assy, Intake Air Flow
2012-08 → 2014-07 ended
2ZRFE ZSP110 —
22204-0V020 note Meter Sub-assy, Intake Air Flow
2012-08 → 2014-07 ended
2ZRFE ZSP110 —
22204-28010 note Meter Sub-assy, Intake Air Flow
2012-08 → 2014-07 ended
2ZRFE ZSP110 —
22204-31020 Meter Sub-assy, Intake Air Flow
2007-06 → 2011-03 ended
2ZRFE ZSP110 —
22204-31020 note Meter Sub-assy, Intake Air Flow
2011-04 → 2012-08 ended
2ZRFE ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
