Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

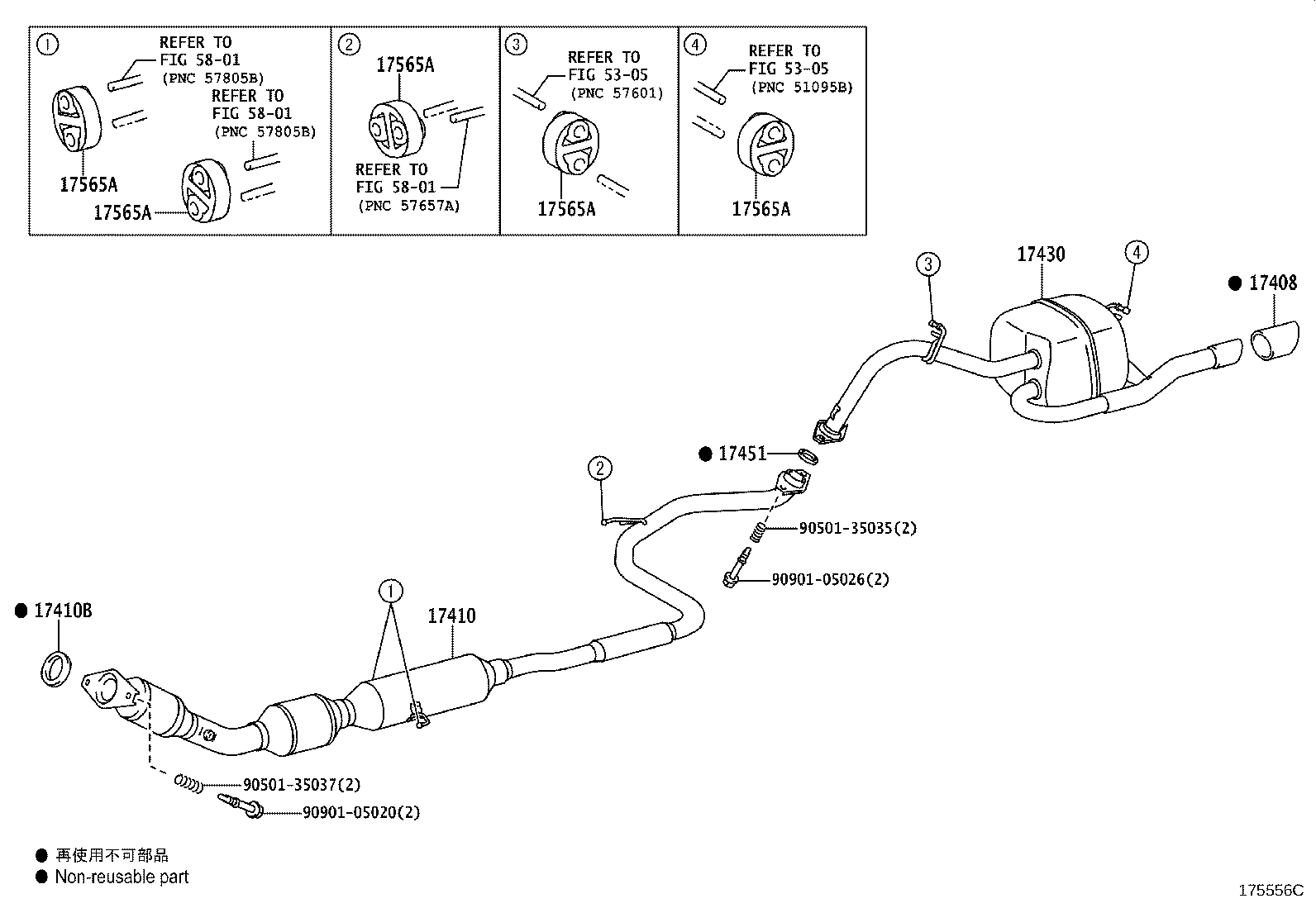

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17408 — Baffle Sub Assy, Exhaust Tailpipe | ||||
| 17408-46020 |
Baffle Sub Assy, Exhaust Tailpipe
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17410-37270 |
Pipe Assy, Exhaust, Front
2007-06 → 2012-08
ended
|
2ZRFE ZSP110 | — | |
| 17410-37271 |
Pipe Assy, Exhaust, Front
2012-08 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 17451-28040 |
Gasket, Exhaust Pipe
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17430-37290 |
Pipe Assy, Exhaust, Tail
2007-06 → 2011-05
ended
|
2ZRFE ZSP110 | — | |
| 17430-37291 |
Pipe Assy, Exhaust, Tail
2011-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 17451-23040 |
Gasket, Exhaust Pipe
2007-06 → 2007-07
ended
|
2ZRFE ZSP110 | — | |
| 17451-23041 |
Gasket, Exhaust Pipe
2007-08 → 2010-09
ended
|
2ZRFE ZSP110 | — | |
| 17451-23042 |
Gasket, Exhaust Pipe
2010-10 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 17565A — Support, Exhaust Pipe, NO.4 | ||||
| 17565-40010 |
Support, Exhaust Pipe, NO.4
2007-06 → 2010-11
ended
|
2ZRFE ZSP110 | — | |
| 17565-47010 |
Support, Exhaust Pipe, NO.4
2010-12 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
