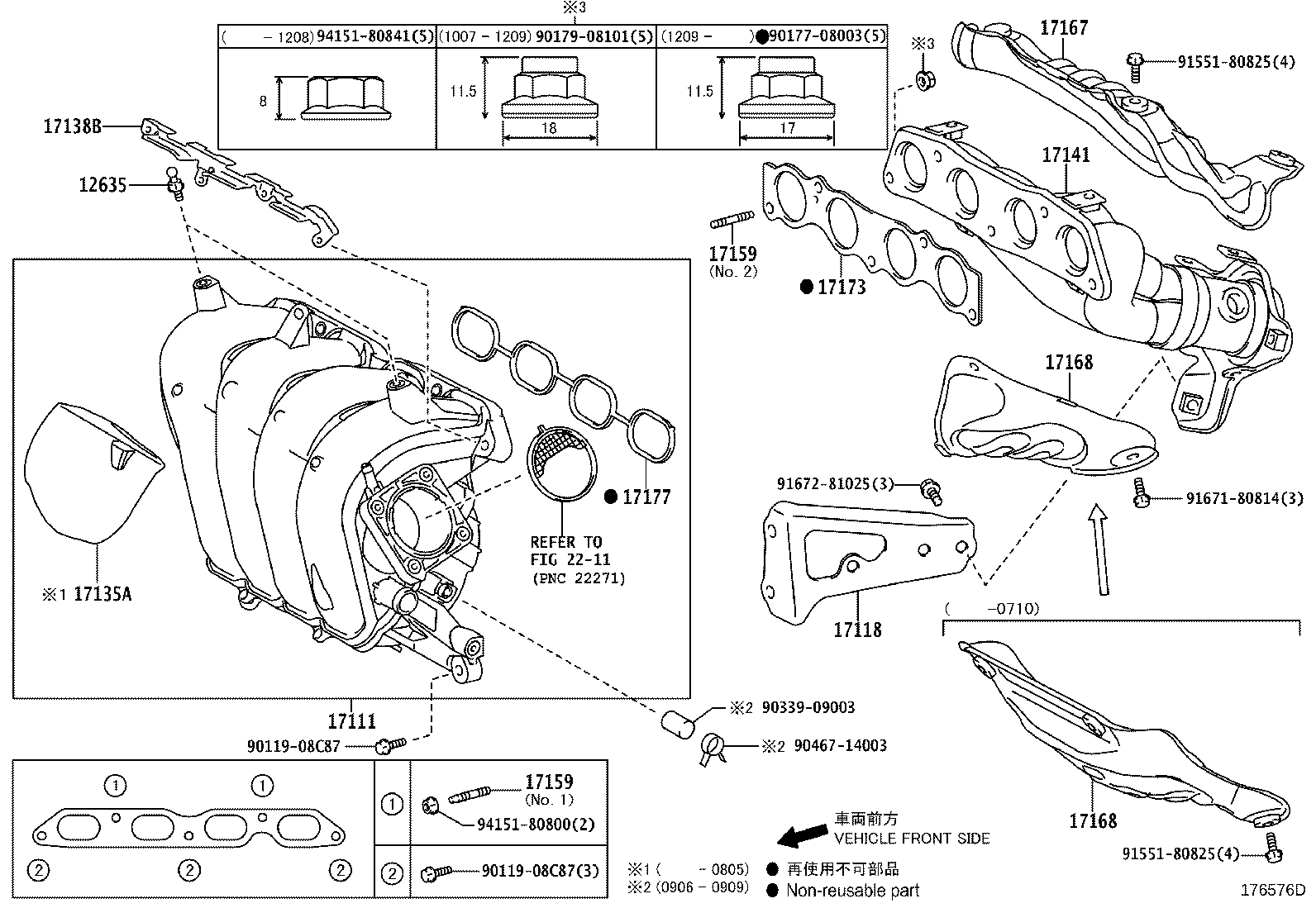

Exploded illustration 176576D 9046714003 — not listed in this catalogue 9033909003 — not listed in this catalogue 12635 — JOINT, ENGINE COVER (1 parts) 17138B — STAY, INTAKE MANIFOLD (2 parts) 17111 — MANIFOLD, INTAKE (5 parts) 17135A — INSULATOR, INTAKE MANIFOLD, NO.1 (1 parts) 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (5 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (2 parts) 9415180800 — not listed in this catalogue 9011908C87 — not listed in this catalogue 9011908C87 — not listed in this catalogue 2211 — not listed in this catalogue 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (2 parts) 17118 — STAY, MANIFOLD (1 parts) 17141 — MANIFOLD, EXHAUST (2 parts) 17167 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 (2 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (2 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (2 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (1 parts) 9155180825 — not listed in this catalogue 9167180814 — not listed in this catalogue 9155180825 — not listed in this catalogue 9167281025 — not listed in this catalogue 9415180841 — not listed in this catalogue 9017908101 — not listed in this catalogue 9017708003 — not listed in this catalogue
176576D · 13 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
12635 — Joint, Engine Cover
90109-06385 Joint, Engine Cover
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
17111 — Manifold, Intake
17120-0T011 note Manifold, Intake
2009-06 → 2009-09 ended
2ZRFE ZSP110 —
17120-37020 Manifold, Intake
2007-06 → 2008-05 ended
2ZRFE ZSP110 —
17120-37021 Manifold, Intake
2008-05 → 2009-06 ended
2ZRFE ZSP110 —
17120-37021 note Manifold, Intake
2009-06 → 2009-09 ended
2ZRFE ZSP110 —
17120-37022 Manifold, Intake
2009-09 → 2014-07 ended
2ZRFE ZSP110 —
17118 — Stay, Manifold
17118-37010 Stay, Manifold
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
17135A — Insulator, Intake Manifold, NO.1
17135-37010 Insulator, Intake Manifold, NO.1
2007-06 → 2008-05 ended
2ZRFE ZSP110 —
17138B — Stay, Intake Manifold
17138-37010 Stay, Intake Manifold
2007-06 → 2013-05 ended
2ZRFE ZSP110 —
17138-37011 Stay, Intake Manifold
2013-05 → 2014-07 ended
2ZRFE ZSP110 —
17141 — Manifold, Exhaust
17141-37051 Manifold, Exhaust
2007-06 → 2012-08 ended
2ZRFE ZSP110 —
17141-37130 Manifold, Exhaust
2012-08 → 2014-07 ended
2ZRFE ZSP110 —
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
90126-08052 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-37011 Insulator, Exhaust Manifold Heat, NO.1
2007-06 → 2012-08 ended
2ZRFE ZSP110 —
17167-37110 Insulator, Exhaust Manifold Heat, NO.1
2012-08 → 2014-07 ended
2ZRFE ZSP110 —
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-37030 Insulator, Exhaust Manifold Heat, NO.2
2007-06 → 2007-10 ended
2ZRFE ZSP110 —
17168-37100 Insulator, Exhaust Manifold Heat, NO.2
2007-10 → 2014-07 ended
2ZRFE ZSP110 —
17173 — Gasket, Exhaust Manifold TO Head
17173-37010 Gasket, Exhaust Manifold TO Head
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
17177 — Gasket, Intake Manifold TO Head, NO.1
17177-0T020 note Gasket, Intake Manifold TO Head, NO.1
2009-06 → 2009-09 ended
2ZRFE ZSP110 —
17177-37030 Gasket, Intake Manifold TO Head, NO.1
2007-06 → 2009-06 ended
2ZRFE ZSP110 —
17177-37030 note Gasket, Intake Manifold TO Head, NO.1
2009-06 → 2009-09 ended
2ZRFE ZSP110 —
17177-37030 Gasket, Intake Manifold TO Head, NO.1
2007-06 → 2014-07 ended
2ZRFE ZSP110 CND —
17177-37030 Gasket, Intake Manifold TO Head, NO.1
2009-09 → 2014-07 ended
2ZRFE ZSP110 USA —
