Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

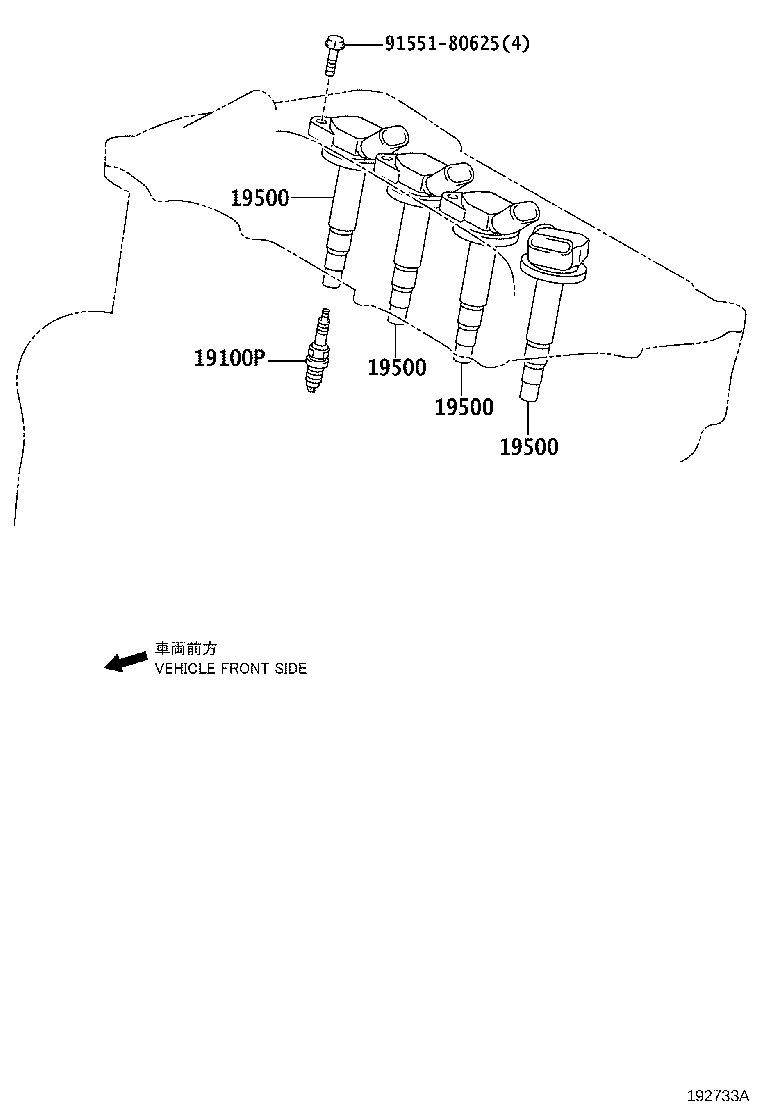

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19100P — Plug, Spark | ||||
| 90919-01253 note |
Plug, Spark
2007-06 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
| 19500 — Coil Assy, Ignition | ||||
| 90919-02252 |
Coil Assy, Ignition
2007-06 → 2010-07
ended
|
2ZRFE ZSP110 | — | |
| 90919-02258 |
Coil Assy, Ignition
2010-07 → 2014-07
ended
|
2ZRFE ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
