Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

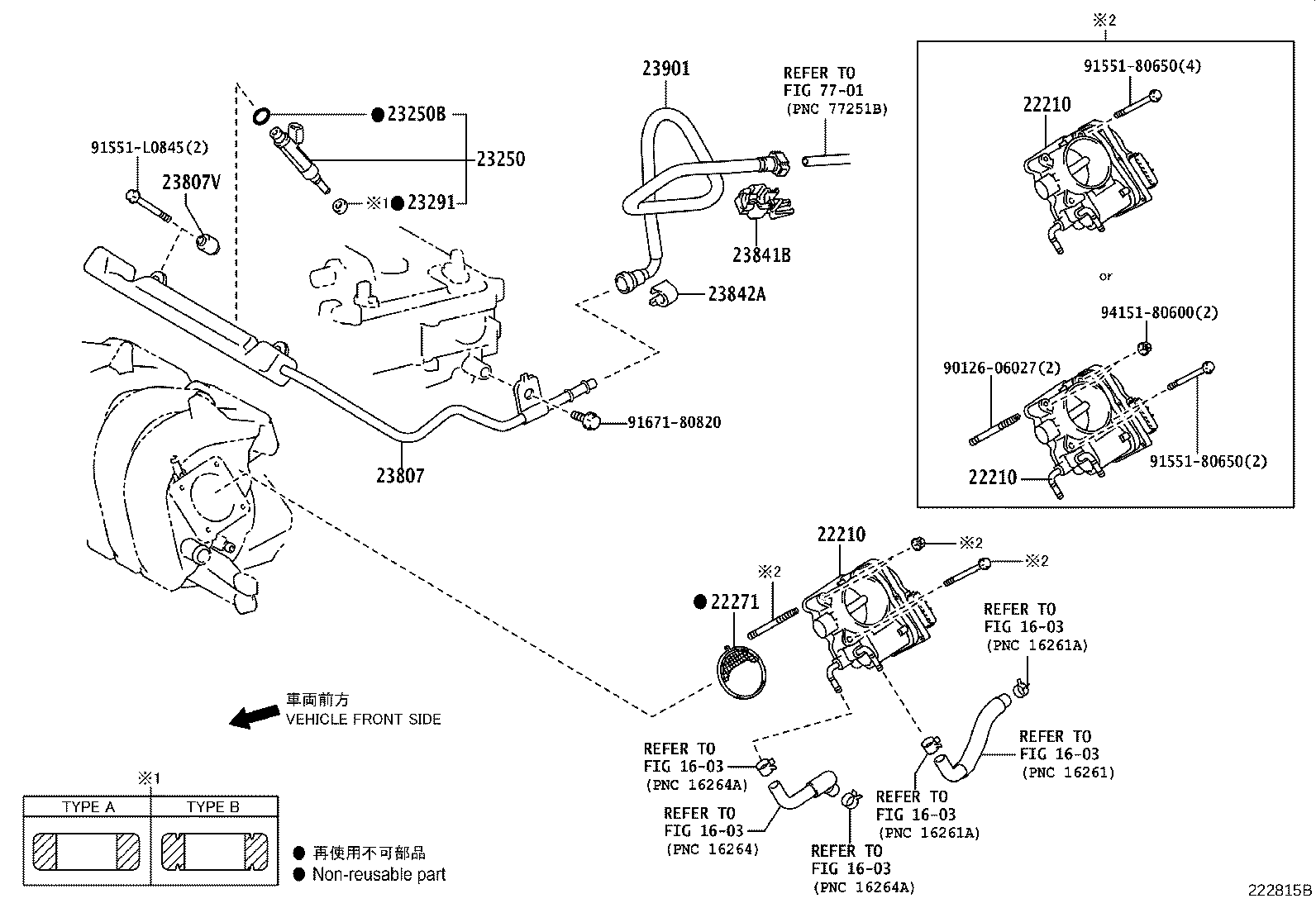

Exploded illustration 222815B 7701 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 22210 — BODY ASSY, THROTTLE (5 parts) 9012606027 — not listed in this catalogue 9415180600 — not listed in this catalogue 9155180650 — not listed in this catalogue 22210 — BODY ASSY, THROTTLE (5 parts) 9155180650 — not listed in this catalogue 22271 — GASKET, THROTTLE BODY (5 parts) 23807 — PIPE SUB-ASSY, FUEL DELIVERY (2 parts) 23807V — SPACER, NO.1(FOR DELIVERY PIPE) (1 parts) 23250 — INJECTOR ASSY, FUEL (2 parts) 23250B — RING, O(FOR FUEL INJECTOR) (1 parts) 23291 — INSULATOR, INJECTOR VIBRATION (5 parts) 23901 — TUBE SUB-ASSY, FUEL (1 parts) 23841B — CLAMP, FUEL PIPE, NO.1(FOR EFI) (1 parts) 23842A — CLAMP, FUEL PIPE, NO.2(FOR EFI) (1 parts) 91551L0845 — not listed in this catalogue 9167180820 — not listed in this catalogue 22210 — BODY ASSY, THROTTLE (5 parts)
222815B · 12 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
22210 — Body Assy, Throttle
22030-37020 Body Assy, Throttle
2007-06 → 2012-08 ended
2ZRFE ZSP110 CND —
22030-37020 Body Assy, Throttle
2009-09 → 2012-08 ended
2ZRFE ZSP110 USA —
22030-37020 Body Assy, Throttle
2007-06 → 2009-06 ended
2ZRFE ZSP110 —
22030-37040 Body Assy, Throttle
2012-08 → 2014-07 ended
2ZRFE ZSP110 —
22030-37080 Body Assy, Throttle
2009-06 → 2009-09 ended
2ZRFE ZSP110 —
22271 — Gasket, Throttle Body
22271-0D051 note Gasket, Throttle Body
2009-06 → 2009-09 ended
2ZRFE ZSP110 —
22271-75031 note Gasket, Throttle Body
2007-06 → 2009-06 ended
2ZRFE ZSP110 —
22271-75031 note Gasket, Throttle Body
2009-06 → 2009-09 ended
2ZRFE ZSP110 —
22271-75031 note Gasket, Throttle Body
2007-06 → 2014-07 ended
2ZRFE ZSP110 CND —
22271-75031 note Gasket, Throttle Body
2009-09 → 2014-07 ended
2ZRFE ZSP110 USA —
23250 — Injector Assy, Fuel
23209-39145 Injector Assy, Fuel
2007-06 → 2009-02 ended
2ZRFE ZSP110 —
23209-39146 Injector Assy, Fuel
2009-02 → 2014-07 ended
2ZRFE ZSP110 —
23250B — Ring, O(FOR FUEL INJECTOR)
90301-07037 Ring, O(FOR FUEL INJECTOR)
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
23291 — Insulator, Injector Vibration
23291-23010 Insulator, Injector Vibration
2008-05 → 2009-02 ended
2ZRFE ZSP110 —
23291-23010 note Insulator, Injector Vibration
2010-01 → 2014-07 ended
2ZRFE ZSP110 —
23291-28020 Insulator, Injector Vibration
2009-02 → 2010-01 ended
2ZRFE ZSP110 —
23291-28020 note Insulator, Injector Vibration
2010-01 → 2014-07 ended
2ZRFE ZSP110 —
23291-41010 Insulator, Injector Vibration
2007-06 → 2008-05 ended
2ZRFE ZSP110 —
23807 — Pipe Sub-assy, Fuel Delivery
23814-37050 Pipe Sub-assy, Fuel Delivery
2007-06 → 2011-08 ended
2ZRFE ZSP110 —
23814-37051 Pipe Sub-assy, Fuel Delivery
2011-08 → 2014-07 ended
2ZRFE ZSP110 —
23807V — Spacer, NO.1(FOR DELIVERY PIPE)
23891-37010 Spacer, NO.1(FOR DELIVERY PIPE)
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
23841B — Clamp, Fuel Pipe, NO.1(FOR EFI)
23841-21050 Clamp, Fuel Pipe, NO.1(FOR EFI)
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
23842A — Clamp, Fuel Pipe, NO.2(FOR EFI)
23842-22020 Clamp, Fuel Pipe, NO.2(FOR EFI)
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
23901 — Tube Sub-assy, Fuel
23901-37050 Tube Sub-assy, Fuel
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
