Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

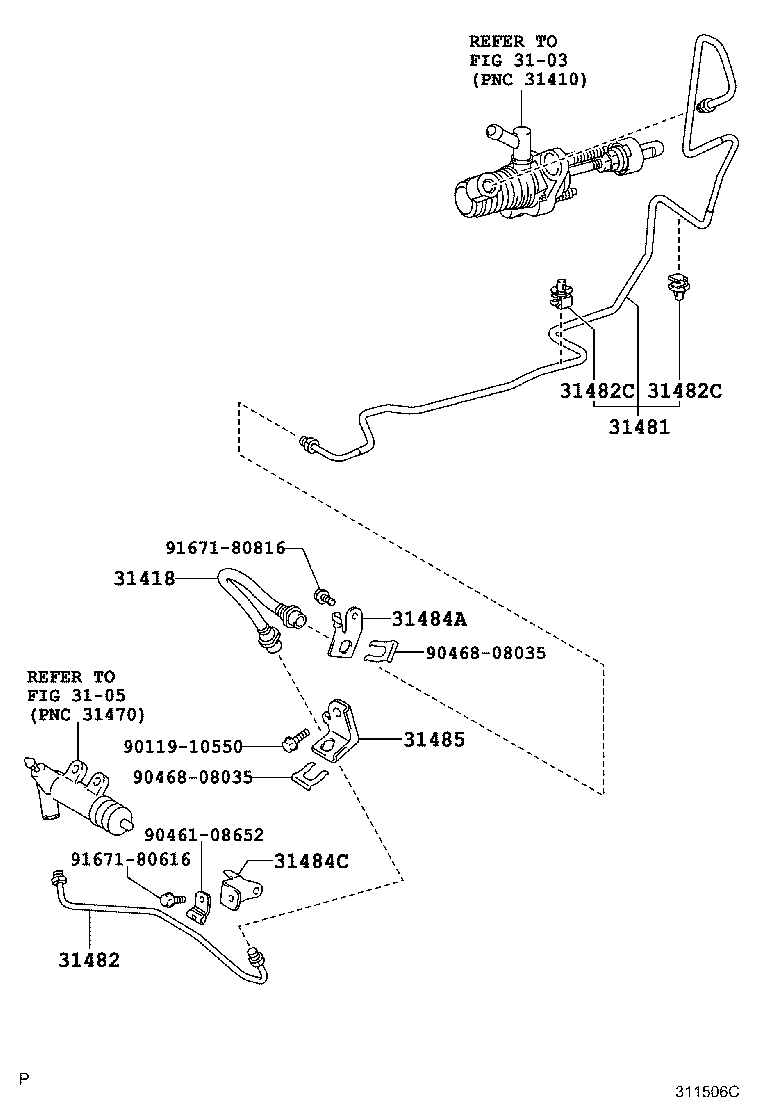

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31418 — Hose, Clutch | ||||
| 90947-02E09 |
Hose, Clutch
2007-06 → 2014-07
ended
|
ZSP110 5F | — | |
| 31481 — Tube, Clutch Master Cylinder TO Flexible Hose | ||||
| 31481-52110 |
Tube, Clutch Master Cylinder TO Flexible Hose
2007-06 → 2014-07
ended
|
ZSP110 5F | — | |
| 31482 — Tube, Clutch Release Cylinder TO Flexible Hose | ||||
| 31482-52070 |
Tube, Clutch Release Cylinder TO Flexible Hose
2007-06 → 2014-07
ended
|
ZSP110 5F | — | |
| 31482C — Clamp(FOR CLUTCH TUBE) | ||||
| 90949-01D17 |
Clamp(FOR CLUTCH TUBE)
2007-06 → 2014-07
ended
|
ZSP110 5F | — | |
| 31484A — Bracket, Flexible Hose, NO.1(FOR CLUTCH) | ||||
| 31484-52090 |
Bracket, Flexible Hose, NO.1(FOR CLUTCH)
2007-06 → 2014-07
ended
|
ZSP110 5F | — | |
| 31484C — Bracket, Clutch Tube, NO.1 | ||||
| 31484-52150 |
Bracket, Clutch Tube, NO.1
2007-06 → 2014-07
ended
|
ZSP110 5F | — | |
| 31485 — Bracket, Flexible Hose, NO.2(FOR CLUTCH) | ||||
| 31484-52050 |
Bracket, Flexible Hose, NO.2(FOR CLUTCH)
2007-06 → 2014-07
ended
|
ZSP110 5F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
