Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

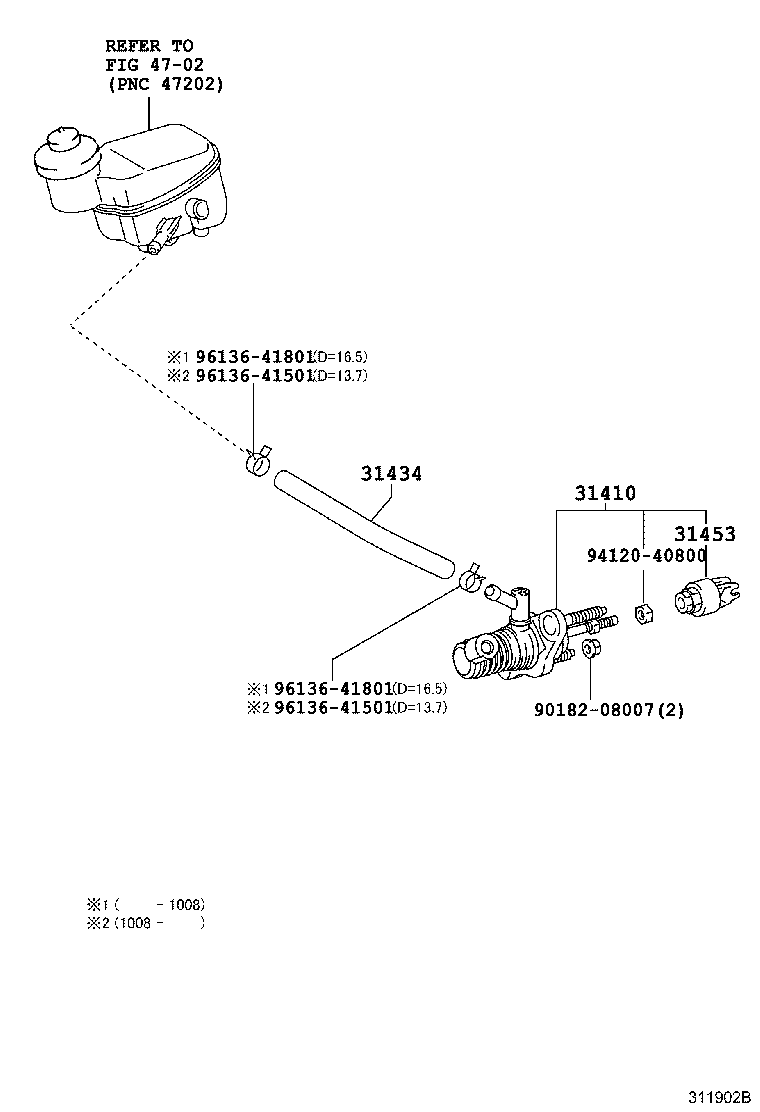

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31410 — Cylinder Assy, Clutch Master | ||||
| 31420-52070 |
Cylinder Assy, Clutch Master
2007-06 → 2014-07
ended
|
ZSP110 5F | — | |
| 31434 — Tube, Clutch Reservoir | ||||
| 31434-52150 |
Tube, Clutch Reservoir
2007-06 → 2010-08
ended
|
ZSP110 5F | — | |
| 31434-52230 |
Tube, Clutch Reservoir
2010-08 → 2014-07
ended
|
ZSP110 5F | — | |
| 31453 — Clevis, Clutch Master Cylinder Push Rod | ||||
| 31404-26020 |
Clevis, Clutch Master Cylinder Push Rod
2007-06 → 2014-07
ended
|
ZSP110 5F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
