Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

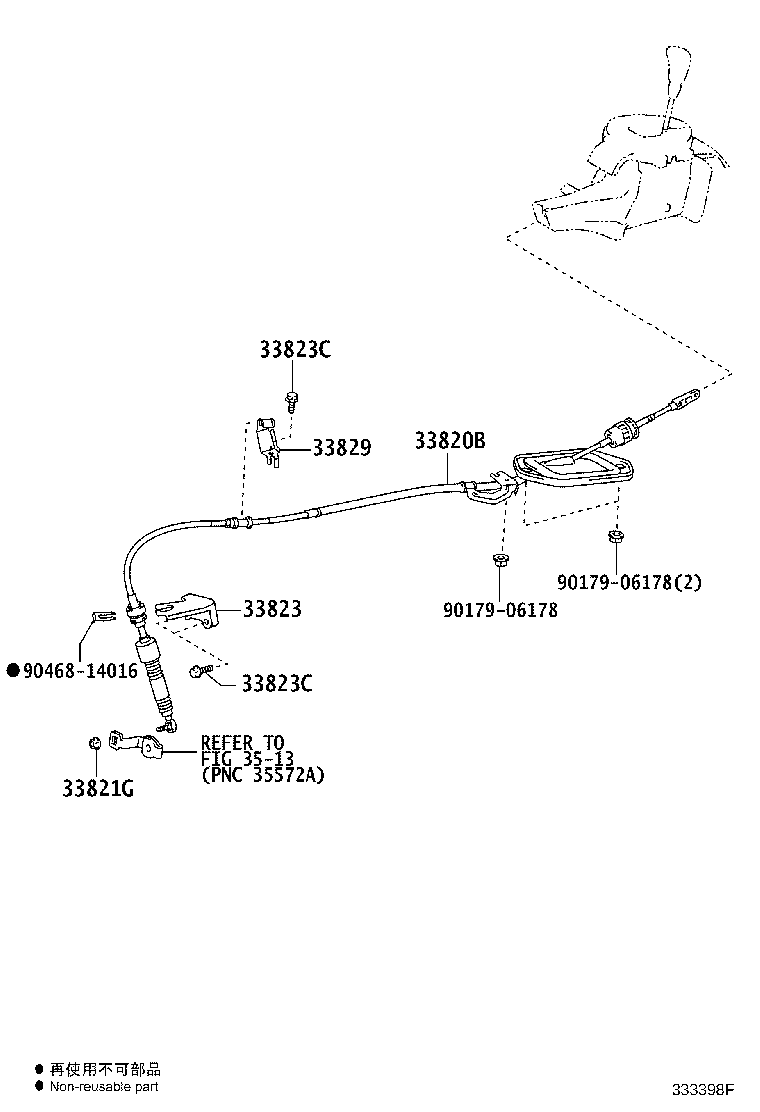

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33820B — Cable Assy, Transmission Control | ||||
| 33820-52550 |
Cable Assy, Transmission Control
2007-06 → 2014-07
ended
|
ZSP110 5F | — | |
| 33820-52580 |
Cable Assy, Transmission Control
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 33821G — Nut (FOR TRANSMISSION CONTROL CABLE) | ||||
| 94151-80800 |
Nut (FOR TRANSMISSION CONTROL CABLE)
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 33823 — Bracket, Transmission Control Cable, NO.1 | ||||
| 33823-52110 |
Bracket, Transmission Control Cable, NO.1
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 33823C — Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 33829 — Support, Transmission Control Cable | ||||
| 33829-52092 |
Support, Transmission Control Cable
2007-06 → 2007-12
ended
|
ZSP110 5F | — | |
| 33829-52092 |
Support, Transmission Control Cable
2008-01 → 2008-09
ended
|
ZSP110 5F | — | |
| 33829-52140 |
Support, Transmission Control Cable
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 33829-52150 |
Support, Transmission Control Cable
2008-09 → 2008-12
ended
|
ZSP110 5F | — | |
| 33829-52170 |
Support, Transmission Control Cable
2008-12 → 2014-07
ended
|
ZSP110 5F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
