Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

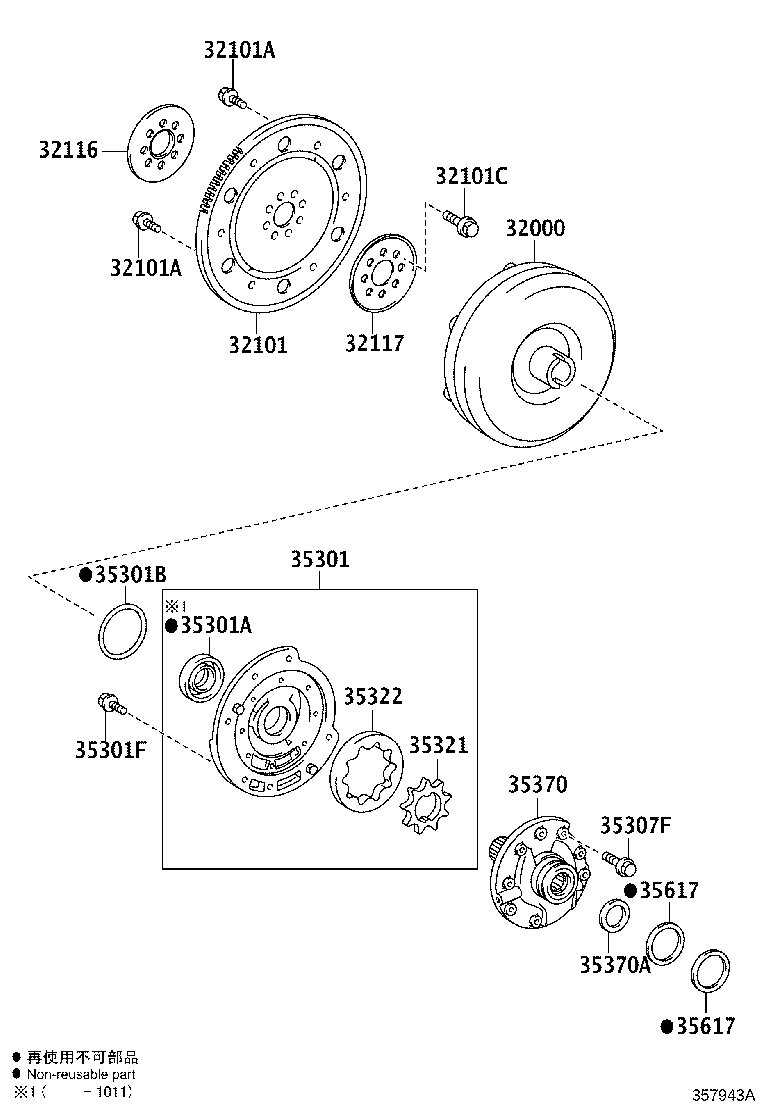

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 32000 — Converter Assy, Torque | ||||
| 32000-12420 |
Converter Assy, Torque
2009-07 → 2014-07
ended
|
ZSP110 4FC | — | |
| 32000-52150 |
Converter Assy, Torque
2007-06 → 2009-07
ended
|
ZSP110 4FC | — | |
| 32101 — Gear Sub-assy, Drive Plate & Ring | ||||
| 32101-12100 |
Gear Sub-assy, Drive Plate & Ring
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 32101A — Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-08113 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 90119-08498 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 32101C — Bolt, Hexagon(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 note |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 90105-A0022 note |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2007-06 → 2010-03
ended
|
ZSP110 4FC | — | |
| 32116 — Spacer, Drive Plate, Front | ||||
| 32116-12030 |
Spacer, Drive Plate, Front
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 32117 — Spacer, Drive Plate, Rear | ||||
| 32117-12040 |
Spacer, Drive Plate, Rear
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35301 — Body Sub-assy, Front Oil Pump | ||||
| 35035-52040 |
Body Sub-assy, Front Oil Pump
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35301A — Seal, Oil (FOR FRONT OIL PUMP) | ||||
| 90311-38064 |
Seal, Oil (FOR FRONT OIL PUMP)
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35301B — Ring, O (FOR FRONT OIL PUMP BODY) | ||||
| 35697-52010 |
Ring, O (FOR FRONT OIL PUMP BODY)
2014-01 → 2014-07
ended
|
ZSP110 4FC | — | |
| 90301-99124 |
Ring, O (FOR FRONT OIL PUMP BODY)
2007-06 → 2013-12
ended
|
ZSP110 4FC | — | |
| 35301F — Bolt (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08301 note |
Bolt (FOR FRONT OIL PUMP SETTING)
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35307F — Bolt (FOR STATOR SHAFT) | ||||
| 90148-60027 |
Bolt (FOR STATOR SHAFT)
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35321 — Gear, Front Oil Pump Drive | ||||
| 35321-52060 note |
Gear, Front Oil Pump Drive
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35321-52070 note |
Gear, Front Oil Pump Drive
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35321-52080 note |
Gear, Front Oil Pump Drive
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35321-52090 note |
Gear, Front Oil Pump Drive
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35321-52100 note |
Gear, Front Oil Pump Drive
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35322 — Gear, Front Oil Pump Driven | ||||
| 35322-52060 note |
Gear, Front Oil Pump Driven
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35322-52070 note |
Gear, Front Oil Pump Driven
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35322-52080 note |
Gear, Front Oil Pump Driven
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35322-52090 note |
Gear, Front Oil Pump Driven
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35322-52100 note |
Gear, Front Oil Pump Driven
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35370 — Shaft Assy, Stator | ||||
| 35370-52070 |
Shaft Assy, Stator
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35370A — Bearing, Thrust Needle Roller(FOR STATOR SHAFT) | ||||
| 90374-26003 |
Bearing, Thrust Needle Roller(FOR STATOR SHAFT)
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 35617 — Ring, Clutch Drum Oil Seal | ||||
| 35613-52020 |
Ring, Clutch Drum Oil Seal
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
