Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

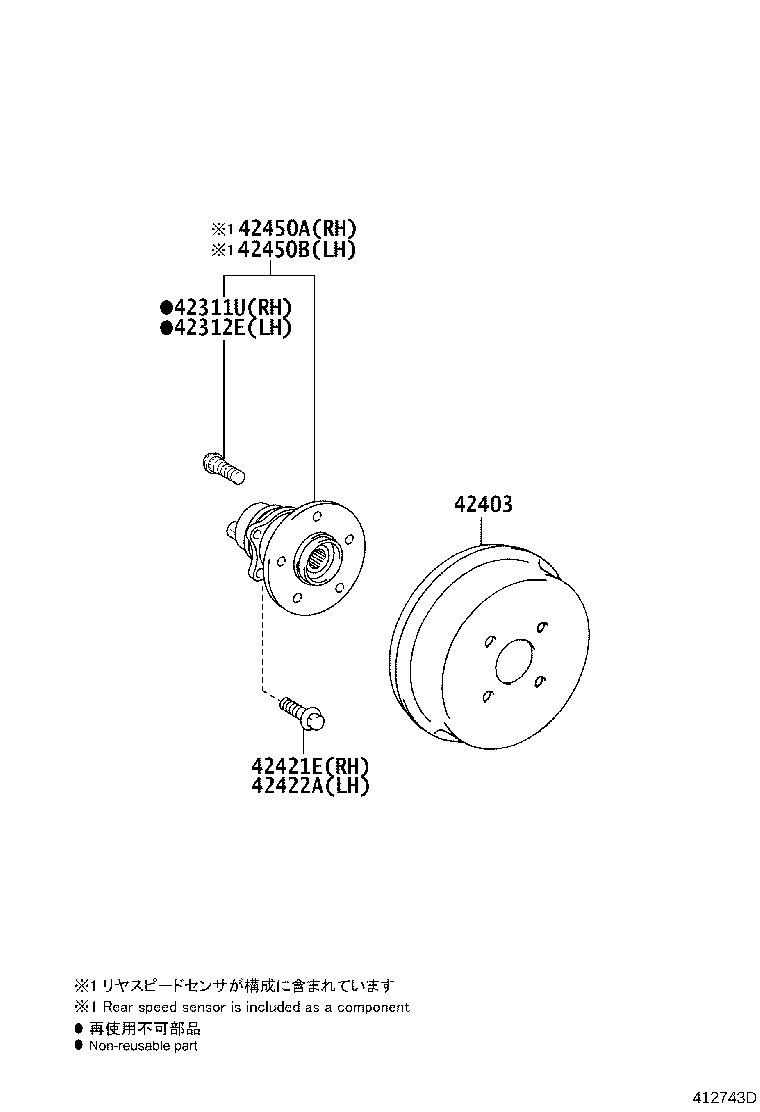

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42311U — Bolt, Hub(FOR REAR AXLE RH) | ||||
| 90942-02067 |
Bolt, Hub(FOR REAR AXLE RH)
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 42312E — Bolt, Hub(FOR REAR AXLE LH) | ||||
| 90942-02067 |
Bolt, Hub(FOR REAR AXLE LH)
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 42403 — Drum Sub-assy, Rear Brake | ||||
| 42431-52110 |
Drum Sub-assy, Rear Brake
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 42421E — Bolt (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-12350 |
Bolt (FOR REAR AXLE BEARING CASE RH)
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 42422A — Bolt (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-12350 |
Bolt (FOR REAR AXLE BEARING CASE LH)
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 42450A — Hub & Bearing Assy, Rear Axle, RH | ||||
| 42450-52080 |
Hub & Bearing Assy, Rear Axle, RH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 42450B — Hub & Bearing Assy, Rear Axle, LH | ||||
| 42450-52080 |
Hub & Bearing Assy, Rear Axle, LH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
