Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

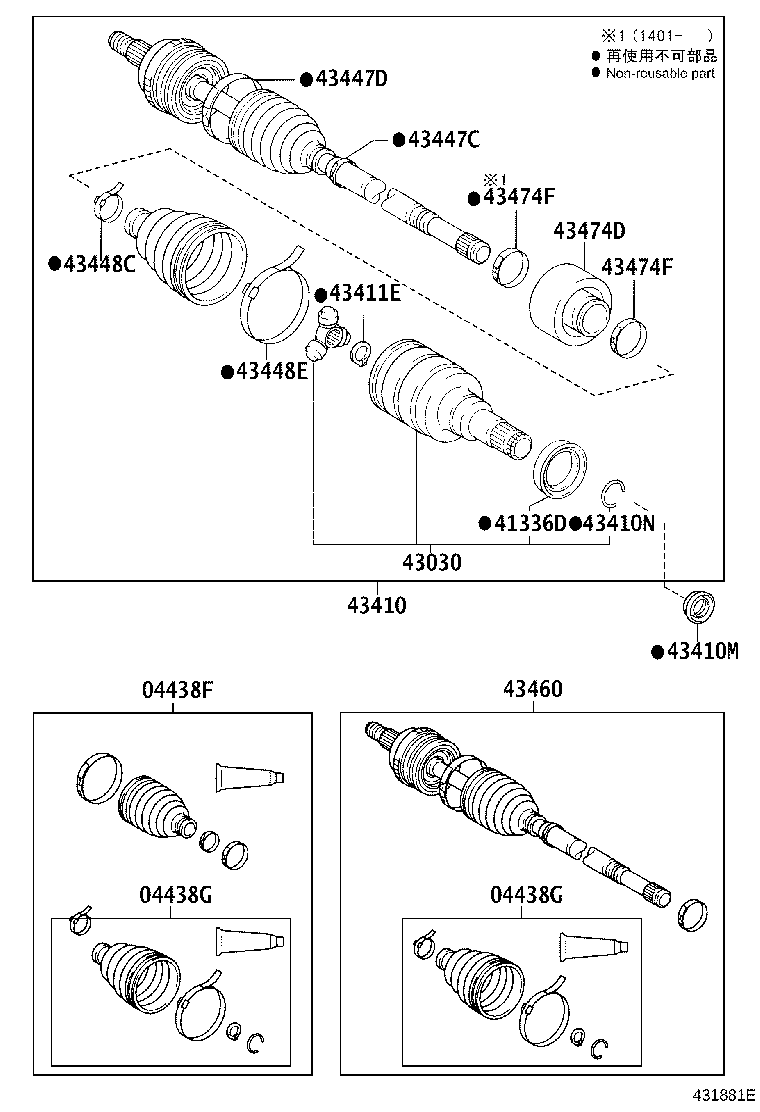

Exploded illustration 431881E 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (1 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (1 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (1 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (1 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (1 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (1 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (1 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (1 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (1 parts) 43474D — DAMPER, FRONT DRIVE SHAFT, RH (1 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (1 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (1 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (2 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (2 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (2 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (3 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (2 parts)
431881E · 17 callouts Full size ↗
20 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-12540 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2007-06 → 2010-03 ended
ZSP110 —
04428-12740 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2010-03 → 2014-07 ended
ZSP110 —
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-12310 Boot Kit, Front Drive Shaft Inboard Joint, RH
2007-06 → 2010-03 ended
ZSP110 —
04438-12A00 Boot Kit, Front Drive Shaft Inboard Joint, RH
2010-03 → 2014-07 ended
ZSP110 —
41336D — Cover, Front Drive Shaft Dust, RH
41336-12060 Cover, Front Drive Shaft Dust, RH
2007-06 → 2014-07 ended
ZSP110 —
43030 — Joint Assy, Front Drive Inboard, RH
43040-12120 Joint Assy, Front Drive Inboard, RH
2007-06 → 2014-07 ended
ZSP110 —
43410 — Shaft Assy, Front Drive, RH
43410-52250 Shaft Assy, Front Drive, RH
2007-06 → 2014-07 ended
ZSP110 —
43410M — Oil Seal, Front Drive Shaft, RH
90311-35055 Oil Seal, Front Drive Shaft, RH
2007-06 → 2014-07 ended
ZSP110 4FC —
90311-35057 Oil Seal, Front Drive Shaft, RH
2007-06 → 2010-11 ended
ZSP110 5F —
90311-35065 Oil Seal, Front Drive Shaft, RH
2010-11 → 2014-07 ended
ZSP110 5F —
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2007-06 → 2014-07 ended
ZSP110 —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-12070 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2007-06 → 2014-07 ended
ZSP110 —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12230 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2007-06 → 2014-07 ended
ZSP110 —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12240 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2007-06 → 2014-07 ended
ZSP110 —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12230 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2007-06 → 2014-07 ended
ZSP110 —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12180 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2007-06 → 2014-07 ended
ZSP110 —
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43460-59615 Shaft Assy, Front Drive Outboard Joint, RH
2010-03 → 2014-07 ended
ZSP110 —
43460-59655 Shaft Assy, Front Drive Outboard Joint, RH
2007-06 → 2010-02 ended
ZSP110 —
43474D — Damper, Front Drive Shaft, RH
43474-12120 Damper, Front Drive Shaft, RH
2007-06 → 2014-07 ended
ZSP110 —
43474F — Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2007-06 → 2014-07 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
