Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

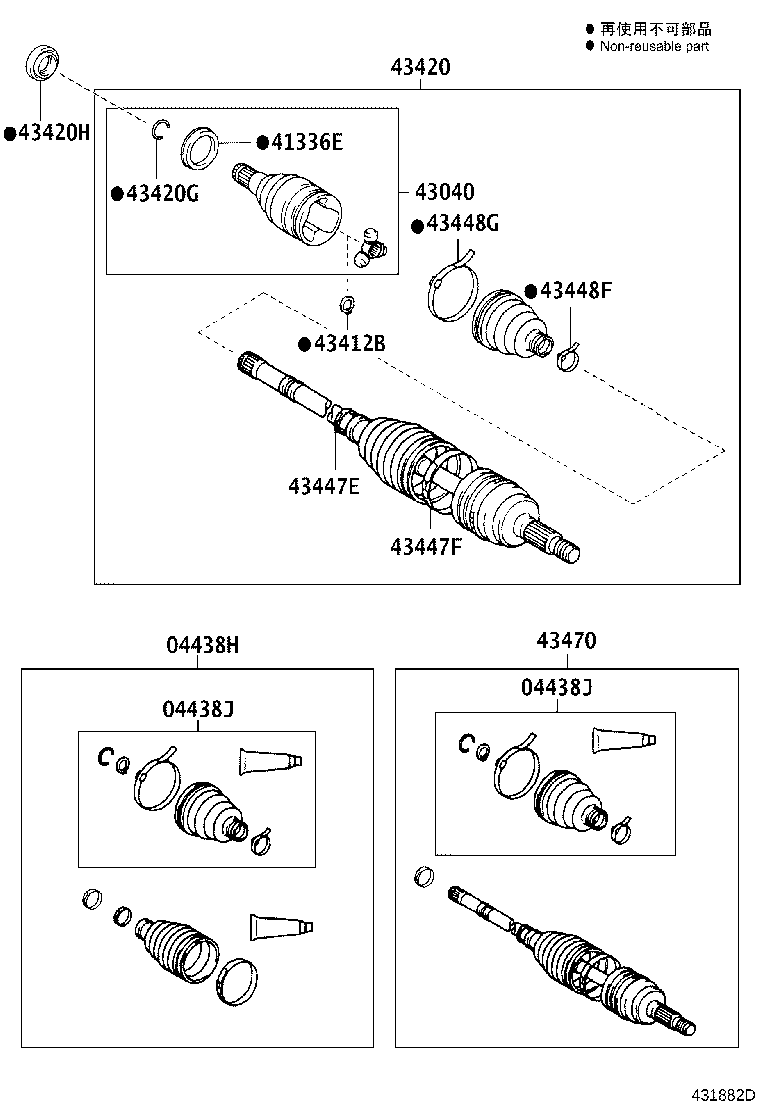

Exploded illustration 431882D 43420 — SHAFT ASSY, FRONT DRIVE, LH (1 parts) 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (1 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (1 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (4 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (1 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (1 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (1 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (1 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (1 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (1 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (2 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (2 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (2 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (2 parts)
431882D · 14 callouts Full size ↗
19 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04427-12540 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2007-06 → 2010-03 ended
ZSP110 —
04428-12740 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2010-03 → 2014-07 ended
ZSP110 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-12310 Boot Kit, Front Drive Shaft Inboard Joint, LH
2007-06 → 2010-03 ended
ZSP110 —
04438-12A00 Boot Kit, Front Drive Shaft Inboard Joint, LH
2010-03 → 2014-07 ended
ZSP110 —
41336E — Cover, Front Drive Shaft Dust, LH
41336-12060 Cover, Front Drive Shaft Dust, LH
2007-06 → 2014-07 ended
ZSP110 —
43040 — Joint Assy, Front Drive Inboard, LH
43040-12120 Joint Assy, Front Drive Inboard, LH
2007-06 → 2014-07 ended
ZSP110 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-12070 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2007-06 → 2014-07 ended
ZSP110 —
43420 — Shaft Assy, Front Drive, LH
43420-52250 Shaft Assy, Front Drive, LH
2007-06 → 2014-07 ended
ZSP110 —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2007-06 → 2014-07 ended
ZSP110 —
43420H — Oil Seal, Front Drive Shaft, LH
90311-35054 Oil Seal, Front Drive Shaft, LH
2007-06 → 2012-01 ended
ZSP110 4FC —
90311-35058 Oil Seal, Front Drive Shaft, LH
2007-06 → 2010-12 ended
ZSP110 5F —
90311-35064 Oil Seal, Front Drive Shaft, LH
2010-12 → 2014-07 ended
ZSP110 5F —
90311-35068 Oil Seal, Front Drive Shaft, LH
2012-01 → 2014-07 ended
ZSP110 4FC —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12230 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2007-06 → 2014-07 ended
ZSP110 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12240 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2007-06 → 2014-07 ended
ZSP110 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12230 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2007-06 → 2014-07 ended
ZSP110 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12180 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2007-06 → 2014-07 ended
ZSP110 —
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-59685 Shaft Assy, Front Drive Outboard Joint, LH
2007-06 → 2010-03 ended
ZSP110 —
43470-59686 Shaft Assy, Front Drive Outboard Joint, LH
2010-03 → 2014-07 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
