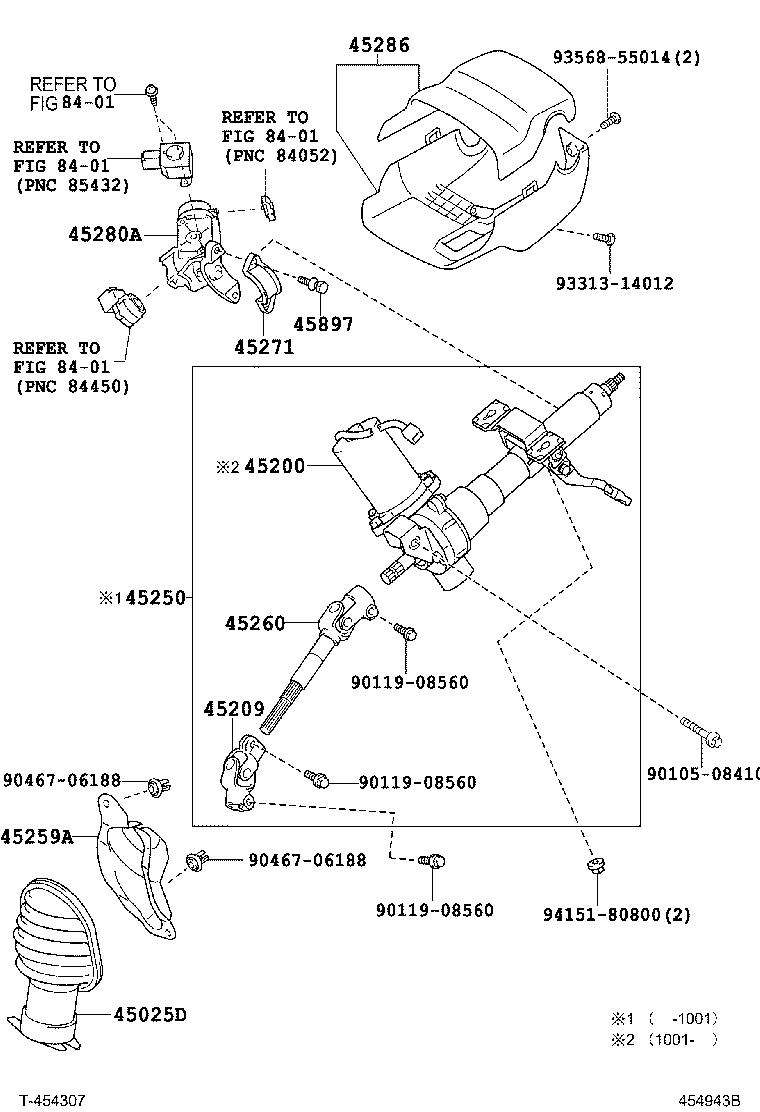

Exploded illustration 454943B 8401 — not listed in this catalogue 8401 — not listed in this catalogue 45271 — CLAMP, STEERING COLUMN, UPPER (1 parts) 45897 — BOLT, STEERING LOCK SET (1 parts) 45280A — BRACKET ASSY, STEERING COLUMN, UPPER (4 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 45025D — COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 (2 parts) 45250 — COLUMN ASSY, STEERING (1 parts) 45209 — YOKE SUB-ASSY, STEERING SLIDING (1 parts) 45259A — SHEET, COLUMN HOLE COVER SILENCER (1 parts) 45260 — SHAFT ASSY, STEERING INTERMEDIATE, NO.2 (1 parts) 9415180800 — not listed in this catalogue 9011908560 — not listed in this catalogue 9011908560 — not listed in this catalogue 9011908560 — not listed in this catalogue 9046706188 — not listed in this catalogue 9046706188 — not listed in this catalogue 45286 — COVER, STEERING COLUMN (2 parts) 9331314012 — not listed in this catalogue 9356855014 — not listed in this catalogue 9010508410 — not listed in this catalogue 45200 — POST ASSY, STEERING (2 parts)
454943B · 10 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
45025D — Cover Sub-assy, Steering Column Hole, NO.1
45025-52140 Cover Sub-assy, Steering Column Hole, NO.1
2007-06 → 2011-10 ended
ZSP110 —
45025-52170 Cover Sub-assy, Steering Column Hole, NO.1
2011-11 → 2014-07 ended
ZSP110 —
45200 — Post Assy, Steering
45200-52700 Post Assy, Steering
2010-01 → 2011-08 ended
ZSP110 —
45200-52701 Post Assy, Steering
2011-08 → 2014-07 ended
ZSP110 —
45209 — Yoke Sub-assy, Steering Sliding
45209-52070 Yoke Sub-assy, Steering Sliding
2007-06 → 2014-07 ended
ZSP110 —
45250 — Column Assy, Steering
45250-52340 Column Assy, Steering
2007-06 → 2010-01 ended
ZSP110 —
45259A — Sheet, Column Hole Cover Silencer
45259-52020 Sheet, Column Hole Cover Silencer
2007-06 → 2014-07 ended
ZSP110 —
45260 — Shaft Assy, Steering Intermediate, NO.2
45260-52280 Shaft Assy, Steering Intermediate, NO.2
2007-06 → 2014-07 ended
ZSP110 —
45271 — Clamp, Steering Column, Upper
45271-52030 Clamp, Steering Column, Upper
2007-06 → 2014-07 ended
ZSP110 —
45280A — Bracket Assy, Steering Column, Upper
45280-22510 Bracket Assy, Steering Column, Upper
2007-06 → 2011-08 ended
ZSP110 4FC —
45280-22520 Bracket Assy, Steering Column, Upper
2011-08 → 2014-07 ended
ZSP110 4FC —
45280-52090 Bracket Assy, Steering Column, Upper
2007-06 → 2011-08 ended
ZSP110 5F —
45280-60640 Bracket Assy, Steering Column, Upper
2011-08 → 2014-07 ended
ZSP110 5F —
45286 — Cover, Steering Column
45286-52929-B0 note Cover, Steering Column
2007-06 → 2008-12 ended
ZSP110 —
45286-52934-B0 note Cover, Steering Column
2008-12 → 2014-07 ended
ZSP110 —
45897 — Bolt, Steering Lock Set
45897-12020 Bolt, Steering Lock Set
2007-06 → 2014-07 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
