Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

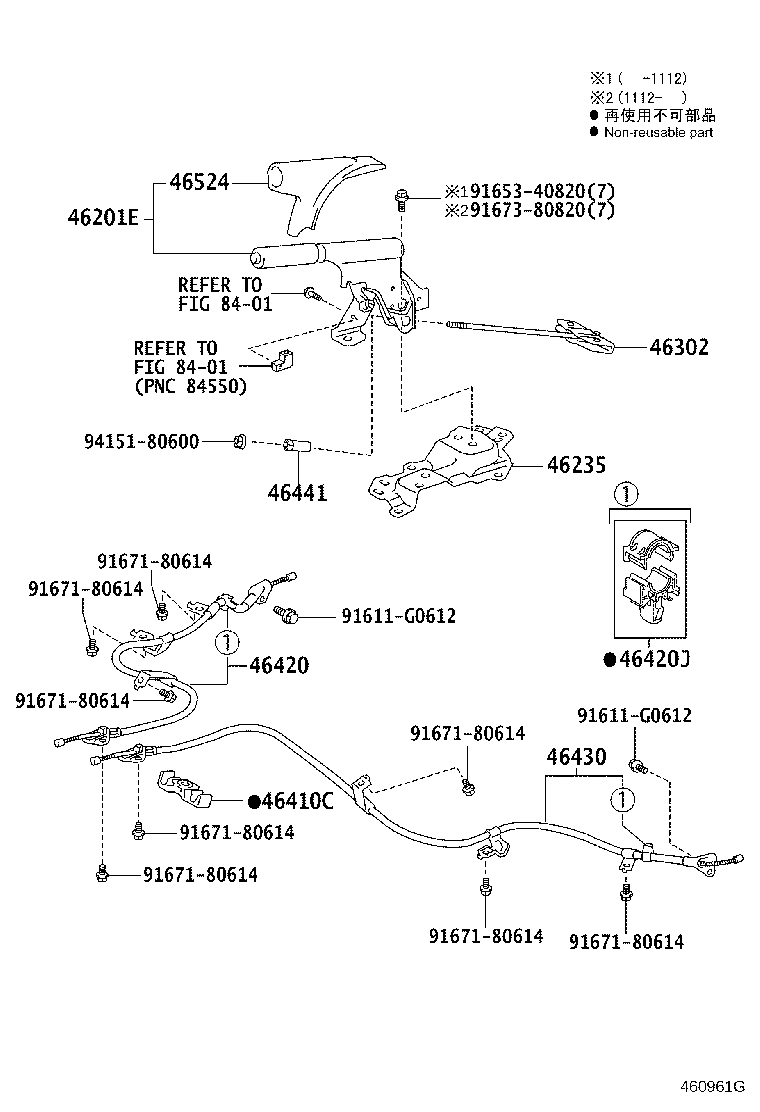

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46201E — Lever Sub-assy, Parking Brake | ||||
| 46201-52070-B0 note |
Lever Sub-assy, Parking Brake
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 46235 — Bracket, Parking Brake Lever Support | ||||
| 46235-52020 |
Bracket, Parking Brake Lever Support
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 46302 — Rod Sub-assy, Parking Brake Pull, NO.1 | ||||
| 46302-52030 |
Rod Sub-assy, Parking Brake Pull, NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 46410C — Clamp(FOR PARKING BRAKE FRONT CABLE) | ||||
| 46411-52030 |
Clamp(FOR PARKING BRAKE FRONT CABLE)
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 46420 — Cable Assy, Parking Brake, NO.2 | ||||
| 46420-52270 |
Cable Assy, Parking Brake, NO.2
2007-06 → 2012-04
ended
|
ZSP110 | — | |
| 46420-52271 |
Cable Assy, Parking Brake, NO.2
2012-05 → 2014-07
ended
|
ZSP110 | — | |
| 46420J — Clamp, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46402-52030 |
Clamp, NO.3(FOR PARKING BRAKE CABLE)
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 46430 — Cable Assy, Parking Brake, NO.3 | ||||
| 46430-52270 |
Cable Assy, Parking Brake, NO.3
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 46441 — Nut, Wire Adjusting, NO.1 | ||||
| 46441-52010 |
Nut, Wire Adjusting, NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 46524 — Cover, Parking Brake Dust | ||||
| 46524-52020 |
Cover, Parking Brake Dust
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
