Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

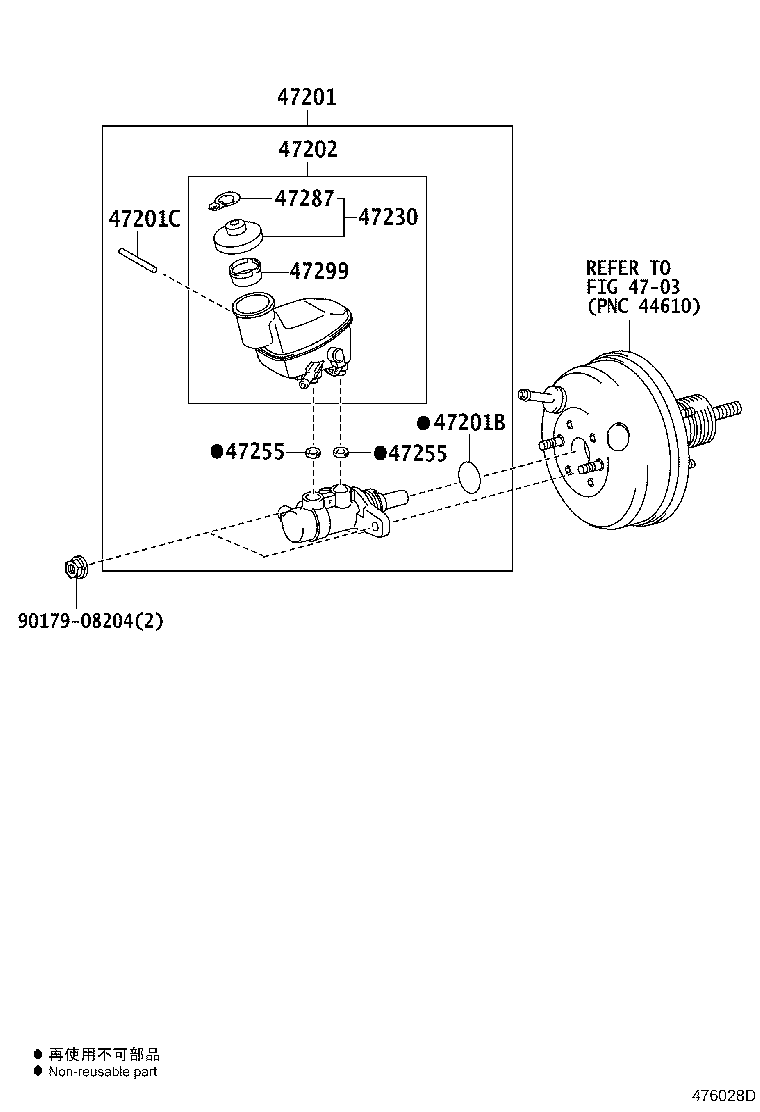

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47201 — Cylinder Sub-assy, Brake Master | ||||
| 47201-52420 |
Cylinder Sub-assy, Brake Master
2007-06 → 2010-08
ended
|
ZSP110 5F | — | |
| 47201-52430 |
Cylinder Sub-assy, Brake Master
2007-06 → 2010-08
ended
|
ZSP110 4FC | — | |
| 47201-52730 |
Cylinder Sub-assy, Brake Master
2010-08 → 2012-02
ended
|
ZSP110 5F | — | |
| 47201-52731 |
Cylinder Sub-assy, Brake Master
2012-03 → 2012-04
ended
|
ZSP110 5F | — | |
| 47201-52732 |
Cylinder Sub-assy, Brake Master
2012-05 → 2014-07
ended
|
ZSP110 5F | — | |
| 47201-52740 |
Cylinder Sub-assy, Brake Master
2010-08 → 2012-02
ended
|
ZSP110 4FC | — | |
| 47201-52741 |
Cylinder Sub-assy, Brake Master
2012-03 → 2012-04
ended
|
ZSP110 4FC | — | |
| 47201-52742 |
Cylinder Sub-assy, Brake Master
2012-05 → 2014-07
ended
|
ZSP110 4FC | — | |
| 47201B — Ring, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH002 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 47201C — Ring Pin, Brake Master Cylinder | ||||
| 90029-15803 |
Ring Pin, Brake Master Cylinder
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 47202 — Reservoir Sub-assy, Brake Master Cylinder | ||||
| 47220-52190 |
Reservoir Sub-assy, Brake Master Cylinder
2007-06 → 2014-07
ended
|
ZSP110 5F | — | |
| 47220-52200 |
Reservoir Sub-assy, Brake Master Cylinder
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-20140 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 47255 — Grommet, Master Cylinder Reservoir | ||||
| 90029-48001 |
Grommet, Master Cylinder Reservoir
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 47287 — Label, Brake Fluid Information | ||||
| 47287-20010 |
Label, Brake Fluid Information
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 47299 — Strainer, Brake Master Cylinder Reservoir | ||||
| 47299-25010 |
Strainer, Brake Master Cylinder Reservoir
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
