Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

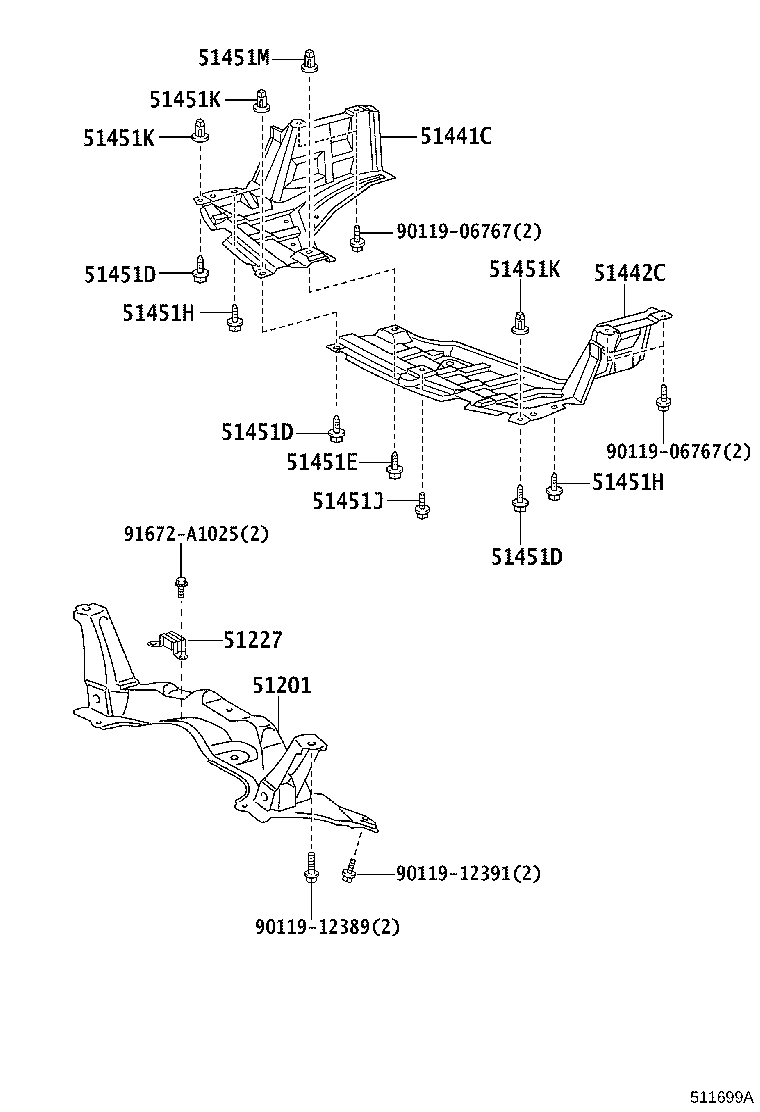

Exploded illustration 511699A 51227 — WEIGHT, FRONT SUSPENSION MEMBER DAMPER (1 parts) 51201 — CROSSMEMBER SUB-ASSY, FRONT SUSPENSION (6 parts) 9011912391 — not listed in this catalogue 9011912389 — not listed in this catalogue 91672A1025 — not listed in this catalogue 51441C — COVER, ENGINE UNDER, RH (3 parts) 51442C — COVER, ENGINE UNDER, LH (3 parts) 9011906767 — not listed in this catalogue 9011906767 — not listed in this catalogue 51451M — GROMMET, SCREW, NO.2 (1 parts) 51451K — GROMMET, SCREW, NO.1 (1 parts) 51451K — GROMMET, SCREW, NO.1 (1 parts) 51451D — SCREW, NO.1 (1 parts) 51451H — SCREW, NO.3 (1 parts) 51451K — GROMMET, SCREW, NO.1 (1 parts) 51451D — SCREW, NO.1 (1 parts) 51451E — SCREW, NO.2 (1 parts) 51451J — BOLT, NO.1 (1 parts) 51451D — SCREW, NO.1 (1 parts) 51451H — SCREW, NO.3 (1 parts)
511699A · 15 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
51201 — Crossmember Sub-assy, Front Suspension
51201-52090 Crossmember Sub-assy, Front Suspension
2007-06 → 2011-01 ended
ZSP110 —
51201-52093 Crossmember Sub-assy, Front Suspension
2011-02 → 2011-05 ended
ZSP110 —
51201-52094 Crossmember Sub-assy, Front Suspension
2011-06 → 2012-04 ended
ZSP110 —
51201-52095 Crossmember Sub-assy, Front Suspension
2012-05 → 2012-07 ended
ZSP110 —
51201-52096 Crossmember Sub-assy, Front Suspension
2012-08 → 2012-10 ended
ZSP110 —
51201-52097 Crossmember Sub-assy, Front Suspension
2012-11 → 2014-07 ended
ZSP110 —
51227 — Weight, Front Suspension Member Damper
51227-52070 Weight, Front Suspension Member Damper
2007-06 → 2014-07 ended
ZSP110 —
51441C — Cover, Engine Under, RH
51441-52141 Cover, Engine Under, RH
2007-06 → 2008-07 ended
ZSP110 —
51441-52180 Cover, Engine Under, RH
2012-05 → 2014-07 ended
ZSP110 —
51441-52250 Cover, Engine Under, RH
2008-08 → 2012-05 ended
ZSP110 —
51442C — Cover, Engine Under, LH
51442-52082 Cover, Engine Under, LH
2007-06 → 2008-07 ended
ZSP110 —
51442-52090 Cover, Engine Under, LH
2012-05 → 2014-07 ended
ZSP110 —
51442-52110 Cover, Engine Under, LH
2008-08 → 2012-05 ended
ZSP110 —
51451D — Screw, NO.1
90159-60383 Screw, NO.1
2007-06 → 2014-07 ended
ZSP110 —
51451E — Screw, NO.2
90159-60383 Screw, NO.2
2007-06 → 2014-07 ended
ZSP110 —
51451H — Screw, NO.3
90159-60383 Screw, NO.3
2007-06 → 2014-07 ended
ZSP110 —
51451J — Bolt, NO.1
90119-06767 Bolt, NO.1
2007-06 → 2014-07 ended
ZSP110 —
51451K — Grommet, Screw, NO.1
90189-06076 Grommet, Screw, NO.1
2007-06 → 2014-07 ended
ZSP110 —
51451M — Grommet, Screw, NO.2
90189-06076 Grommet, Screw, NO.2
2007-06 → 2014-07 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
