Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

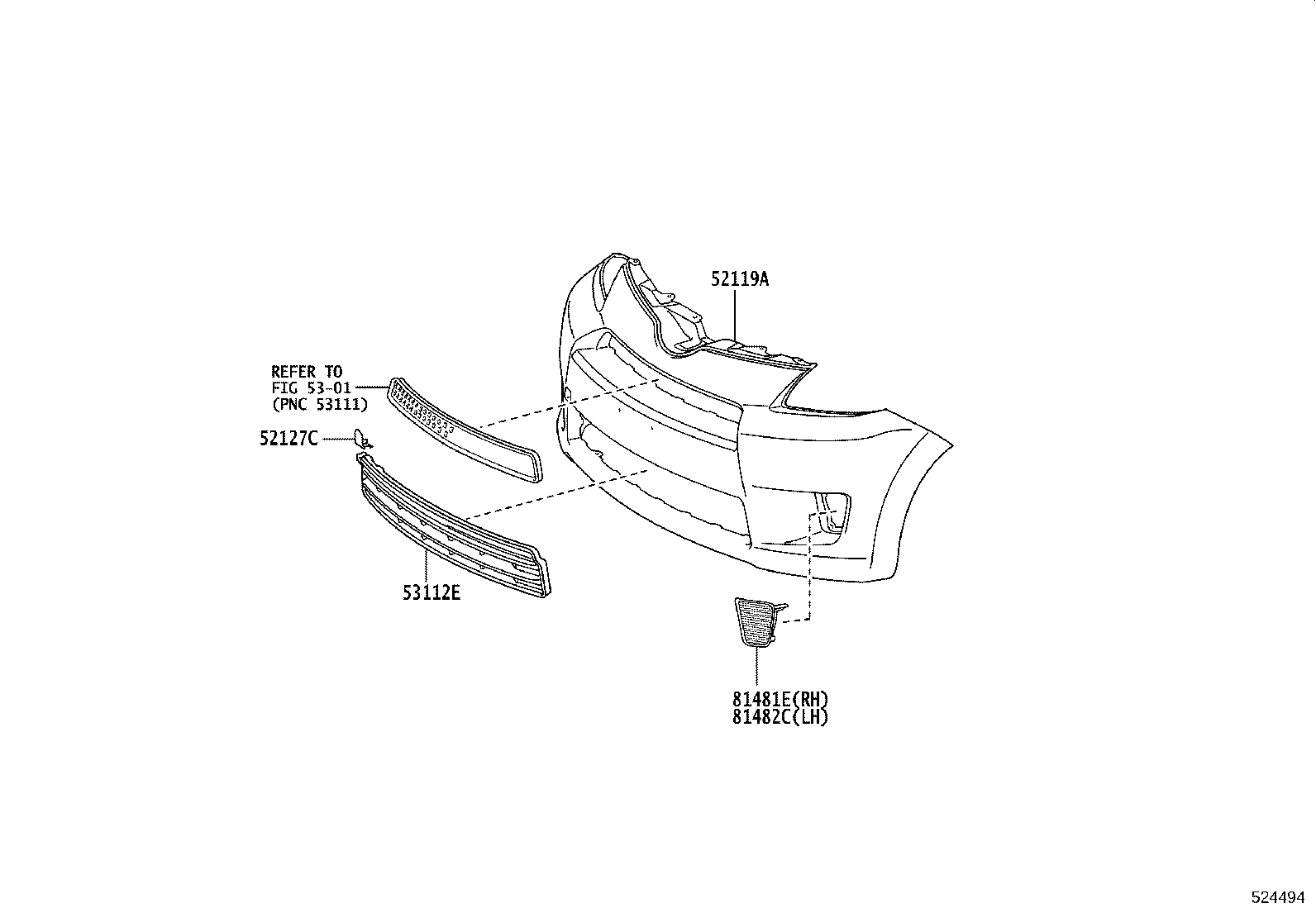

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52119A — Cover, Front Bumper | ||||
| 52119-52590-C1 note |
Cover, Front Bumper
2012-08 → 2013-08
ended
|
ZSP110 | — | |
| 52119-52590-C2 note |
Cover, Front Bumper
2013-08 → 2014-07
ended
|
ZSP110 | — | |
| 52119-52945 note |
Cover, Front Bumper
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 52127C — Cover, Front Bumper Hole | ||||
| 52127-52430-C1 note |
Cover, Front Bumper Hole
2012-08 → 2013-08
ended
|
ZSP110 | — | |
| 52127-52430-C2 note |
Cover, Front Bumper Hole
2013-08 → 2014-07
ended
|
ZSP110 | — | |
| 52127-52923 note |
Cover, Front Bumper Hole
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 53112E — Grille, Radiator, Lower NO.1 | ||||
| 53112-52290 note |
Grille, Radiator, Lower NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 81481E — Cover, Fog Lamp, RH | ||||
| 81481-52310 |
Cover, Fog Lamp, RH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 81482C — Cover, Fog Lamp, LH | ||||
| 81482-52240 |
Cover, Fog Lamp, LH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
