Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

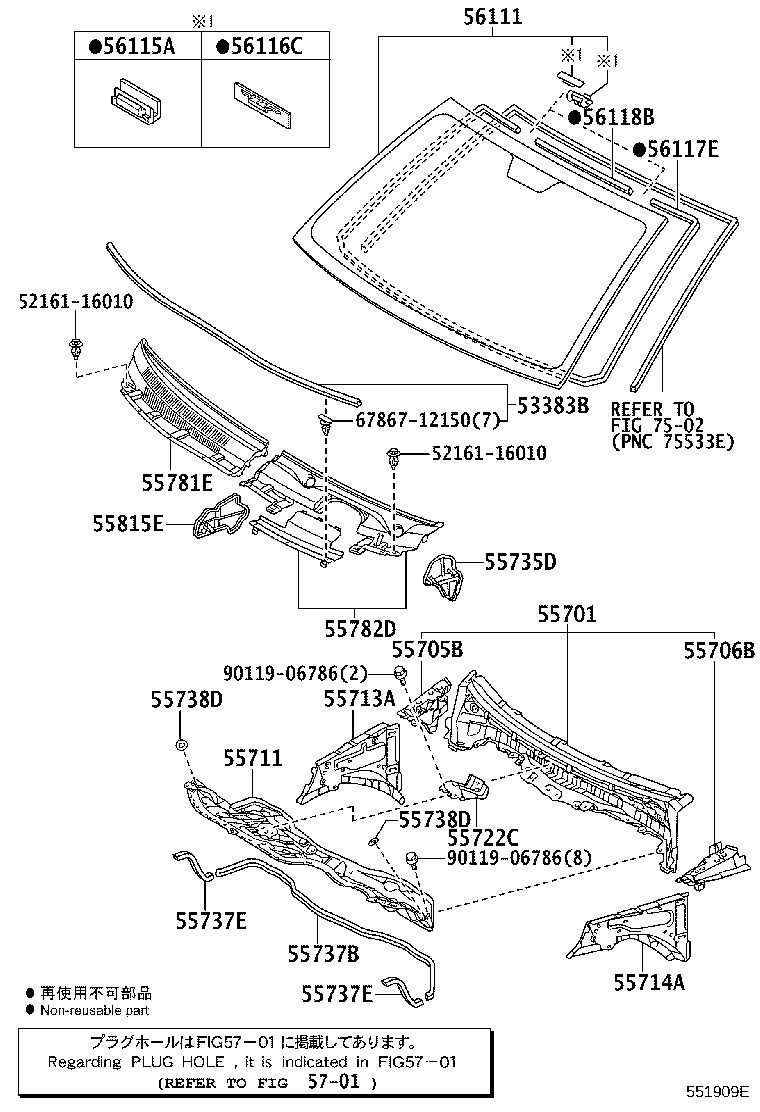

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53383B — Seal, Hood TO Cowl Top | ||||
| 53383-52110 |
Seal, Hood TO Cowl Top
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55701 — Panel Sub-assy, Cowl | ||||
| 55700-52330 |
Panel Sub-assy, Cowl
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55705B — Panel Sub-assy, Cowl Top Side, RH | ||||
| 55705-52130 |
Panel Sub-assy, Cowl Top Side, RH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55706B — Panel Sub-assy, Cowl Top Side, LH | ||||
| 55706-52130 |
Panel Sub-assy, Cowl Top Side, LH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55711 — Panel, Cowl Top, Outer | ||||
| 55701-52250 |
Panel, Cowl Top, Outer
2007-06 → 2010-03
ended
|
ZSP110 | — | |
| 55701-52251 |
Panel, Cowl Top, Outer
2010-04 → 2014-07
ended
|
ZSP110 | — | |
| 55713A — Panel, Cowl Top Side, RH | ||||
| 55713-52110 |
Panel, Cowl Top Side, RH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55714A — Panel, Cowl Top Side, LH | ||||
| 55714-52110 |
Panel, Cowl Top Side, LH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55722C — Brace, Cowl Top TO Cowl, Inner | ||||
| 55722-52080 |
Brace, Cowl Top TO Cowl, Inner
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55735D — Seal, Front Air Shutter, RH | ||||
| 55735-52070 |
Seal, Front Air Shutter, RH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55737B — Seal, Heater Air Duct Splash Shield, NO.1 | ||||
| 55737-52010 note |
Seal, Heater Air Duct Splash Shield, NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55737E — Seal, Heater Air Duct Splash Shield, NO.2 | ||||
| 55737-52050 note |
Seal, Heater Air Duct Splash Shield, NO.2
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55738D — Seal, Heater Air Duct Splash Shield, NO.2 | ||||
| 55737-52040 |
Seal, Heater Air Duct Splash Shield, NO.2
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55781E — Louver Sub-assy, Cowl Top Ventilator | ||||
| 55708-52160 |
Louver Sub-assy, Cowl Top Ventilator
2007-06 → 2012-09
ended
|
ZSP110 | — | |
| 55708-52161 |
Louver Sub-assy, Cowl Top Ventilator
2012-10 → 2014-07
ended
|
ZSP110 | — | |
| 55782D — Louver, Cowl Top Ventilator, LH | ||||
| 55709-52110 |
Louver, Cowl Top Ventilator, LH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55815E — Seal, Front Ventilator, NO.1 | ||||
| 55815-52030 |
Seal, Front Ventilator, NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 56111 — Glass, Windshield | ||||
| 56101-52370 note |
Glass, Windshield
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 56115A — Stopper, Windshield Glass, NO.1 | ||||
| 56115-30100 |
Stopper, Windshield Glass, NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 56116C — Stopper, Windshield Glass, NO.2 | ||||
| 56116-22050 |
Stopper, Windshield Glass, NO.2
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 56117E — Dam, Window Glass Adhesive | ||||
| 56117-52160 note |
Dam, Window Glass Adhesive
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 56118B — Dam, Window Glass Adhesive, NO.2 | ||||
| 56118-52110 note |
Dam, Window Glass Adhesive, NO.2
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
