Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

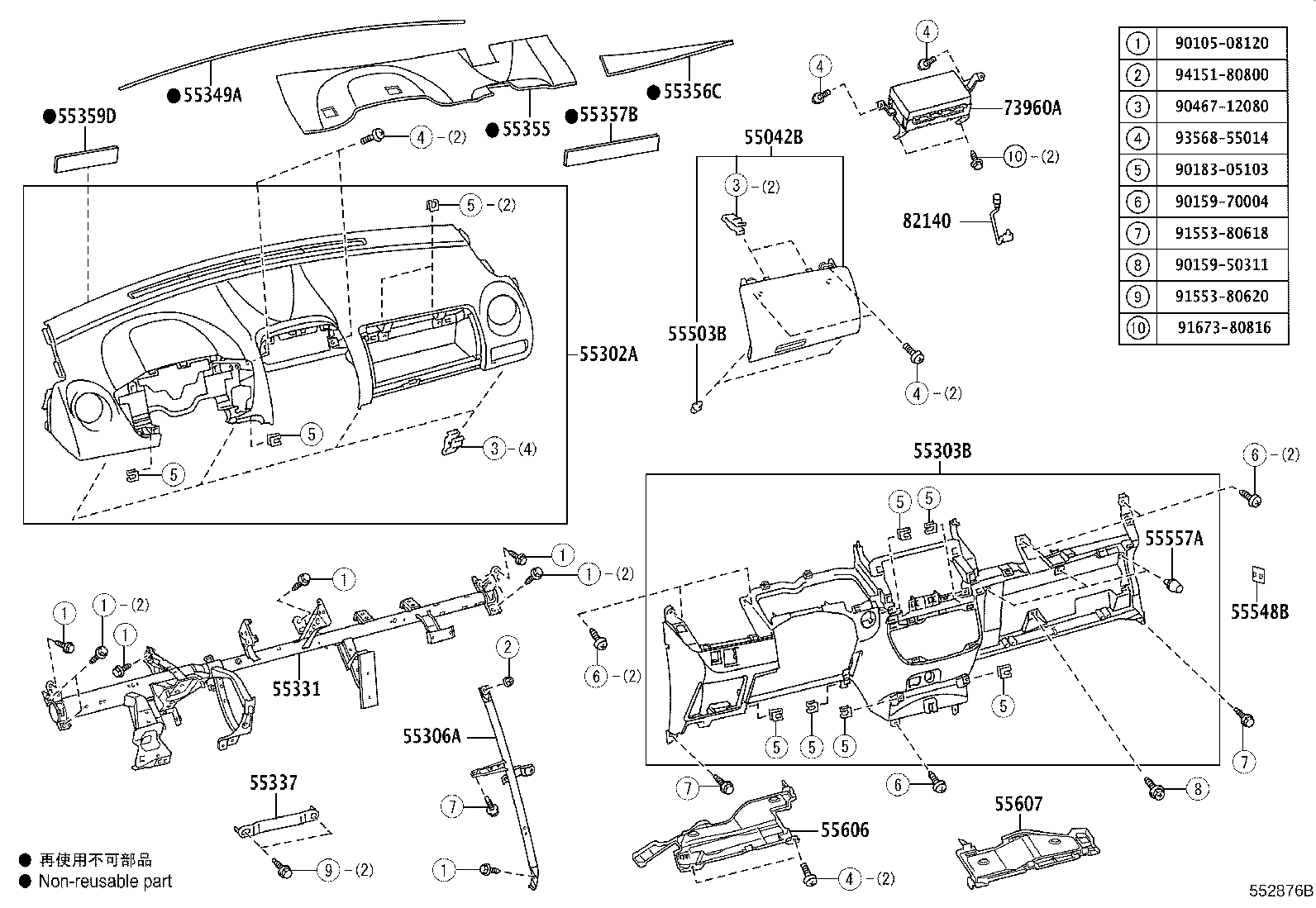

Exploded illustration 552876B 55548B — COVER, INSTRUMENT PANEL HOLE (2 parts) 55557A — CUSHION, GLOVE COMPARTMENT DOOR CHECK (1 parts) 73960A — AIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR (3 parts) 82140 — WIRE ASSY, INSTRUMENT PANEL (2 parts) 55503B — CUSHION(FOR GLOVE COMPARTMENT) (1 parts) 55302A — PANEL SUB-ASSY, INSTRUMENT, UPPER (2 parts) 55042B — DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 (1 parts) 55303B — PANEL SUB-ASSY, INSTRUMENT, LOWER (3 parts) 55607 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 (1 parts) 55606 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 (1 parts) 55337 — REINFORCEMENT, INSTRUMENT PANEL SUB (1 parts) 55306A — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 (1 parts) 55331 — REINFORCEMENT, INSTRUMENT PANEL (4 parts) 55357B — CUSHION, INSTRUMENT PANEL, NO.3 (1 parts) 55355 — CUSHION, INSTRUMENT PANEL, NO.1 (1 parts) 55356C — CUSHION, INSTRUMENT PANEL, NO.2 (1 parts) 55349A — CUSHION, INSTRUMENT PANEL (1 parts) 55359D — CUSHION, INSTRUMENT PANEL, NO.5 (1 parts) 9010508120 — not listed in this catalogue 9415180800 — not listed in this catalogue 9046712080 — not listed in this catalogue 9356855014 — not listed in this catalogue 9018305103 — not listed in this catalogue 9015970004 — not listed in this catalogue 9155380618 — not listed in this catalogue 9015950311 — not listed in this catalogue 9155380620 — not listed in this catalogue 9167380816 — not listed in this catalogue
552876B · 18 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
28 parts on this figure
Part number Description Fitment Price
55042B — Door Sub-assy, Instrument Panel Box, NO.2
55042-52040-B0 note Door Sub-assy, Instrument Panel Box, NO.2
2007-06 → 2014-07 ended
ZSP110 —
55302A — Panel Sub-assy, Instrument, Upper
55302-52080-B0 note Panel Sub-assy, Instrument, Upper
2007-06 → 2011-10 ended
ZSP110 —
55302-52081-B0 note Panel Sub-assy, Instrument, Upper
2011-11 → 2014-07 ended
ZSP110 —
55303B — Panel Sub-assy, Instrument, Lower
55303-52180-B0 note Panel Sub-assy, Instrument, Lower
2007-06 → 2011-10 ended
ZSP110 —
55303-52181-B0 note Panel Sub-assy, Instrument, Lower
2011-11 → 2012-08 ended
ZSP110 —
55303-52310-B0 note Panel Sub-assy, Instrument, Lower
2012-08 → 2014-07 ended
ZSP110 —
55306A — Brace Sub-assy, Instrument Panel, NO.1
55306-52160 Brace Sub-assy, Instrument Panel, NO.1
2007-06 → 2014-07 ended
ZSP110 —
55331 — Reinforcement, Instrument Panel
55330-52500 Reinforcement, Instrument Panel
2007-06 → 2009-08 ended
ZSP110 —
55330-52501 Reinforcement, Instrument Panel
2009-08 → 2010-07 ended
ZSP110 —
55330-52650 Reinforcement, Instrument Panel
2010-08 → 2012-08 ended
ZSP110 —
55330-52710 Reinforcement, Instrument Panel
2012-08 → 2014-07 ended
ZSP110 —
55337 — Reinforcement, Instrument Panel Sub
55337-52010 Reinforcement, Instrument Panel Sub
2007-06 → 2014-07 ended
ZSP110 —
55349A — Cushion, Instrument Panel
55349-52120 Cushion, Instrument Panel
2007-06 → 2014-07 ended
ZSP110 —
55355 — Cushion, Instrument Panel, NO.1
55355-52160 Cushion, Instrument Panel, NO.1
2007-06 → 2014-07 ended
ZSP110 —
55356C — Cushion, Instrument Panel, NO.2
55356-52150 Cushion, Instrument Panel, NO.2
2007-06 → 2014-07 ended
ZSP110 —
55357B — Cushion, Instrument Panel, NO.3
55357-52130 Cushion, Instrument Panel, NO.3
2007-06 → 2014-07 ended
ZSP110 —
55359D — Cushion, Instrument Panel, NO.5
55359-52130 Cushion, Instrument Panel, NO.5
2007-06 → 2014-07 ended
ZSP110 —
55503B — Cushion(FOR GLOVE COMPARTMENT)
58959-60060 Cushion(FOR GLOVE COMPARTMENT)
2007-06 → 2014-07 ended
ZSP110 —
55548B — Cover, Instrument Panel Hole
55548-12090-B0 note Cover, Instrument Panel Hole
2007-06 → 2012-08 ended
ZSP110 —
55548-12090-B0 note Cover, Instrument Panel Hole
2007-06 → 2012-08 ended
ZSP110 USA —
55557A — Cushion, Glove Compartment Door Check
55557-60050 Cushion, Glove Compartment Door Check
2012-08 → 2014-07 ended
ZSP110 —
55606 — Cover Sub-assy, Instrument Panel Under, NO.1
55606-52020 Cover Sub-assy, Instrument Panel Under, NO.1
2007-06 → 2014-07 ended
ZSP110 —
55607 — Cover Sub-assy, Instrument Panel Under, NO.2
55607-52020 Cover Sub-assy, Instrument Panel Under, NO.2
2007-06 → 2014-07 ended
ZSP110 —
73960A — Airbag Assy, Instrument Panel Passenger W/O Door
73960-52130 Airbag Assy, Instrument Panel Passenger W/O Door
2007-06 → 2011-12 ended
ZSP110 —
73960-52131 Airbag Assy, Instrument Panel Passenger W/O Door
2012-01 → 2012-08 ended
ZSP110 —
73960-52220 Airbag Assy, Instrument Panel Passenger W/O Door
2012-08 → 2014-07 ended
ZSP110 —
82140 — Wire Assy, Instrument Panel
82140-52041 Wire Assy, Instrument Panel
2007-06 → 2012-08 ended
ZSP110 —
82140-52050 Wire Assy, Instrument Panel
2012-08 → 2014-07 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
