Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

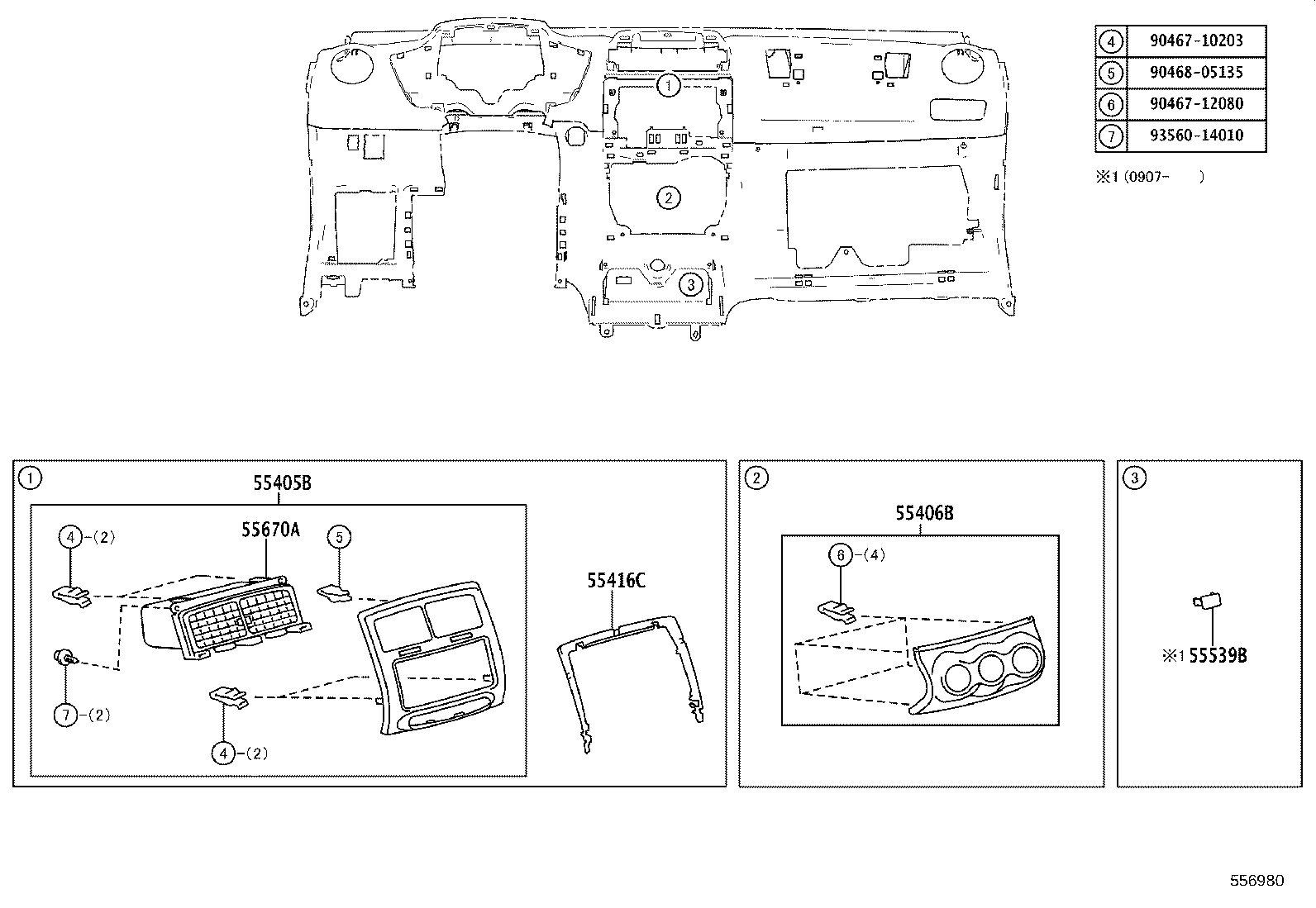

Exploded illustration 556980 9046710203 — not listed in this catalogue 9046805135 — not listed in this catalogue 9046712080 — not listed in this catalogue 9356014010 — not listed in this catalogue 55670A — REGISTER ASSY, INSTRUMENT PANEL, CENTER (1 parts) 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (5 parts) 55416C — RETAINER, INSTRUMENT CLUSTER FINISH PANEL (1 parts) 55539B — COVER, SPARE SWITCH HOLE, NO.2 (1 parts) 55406B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER (5 parts)
556980 · 5 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
13 parts on this figure
Part number Description Fitment Price
55405B — Panel Sub-assy, Instrument Cluster Finish, Center
55405-52670-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2007-06 → 2010-07 ended
ZSP110 —
55405-52671-B1 note Panel Sub-assy, Instrument Cluster Finish, Center
2010-08 → 2011-04 ended
ZSP110 —
55405-52671-B2 note Panel Sub-assy, Instrument Cluster Finish, Center
2011-04 → 2014-07 ended
ZSP110 —
55405-52840-E0 note Panel Sub-assy, Instrument Cluster Finish, Center
2008-05 → 2008-06 ended
ZSP110 USA —
55405-52A70-B0 note Panel Sub-assy, Instrument Cluster Finish, Center
2011-08 → 2011-10 ended
ZSP110 —
55406B — Panel Sub-assy, Instrument Cluster Finish, Lower Center
55406-52190-C0 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2007-06 → 2010-07 ended
ZSP110 —
55406-52191-B1 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2010-08 → 2012-08 ended
ZSP110 —
55406-52290-E0 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2008-05 → 2008-06 ended
ZSP110 USA —
55406-52370 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2011-08 → 2011-10 ended
ZSP110 —
55406-52390-B0 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2012-08 → 2014-07 ended
ZSP110 —
55416C — Retainer, Instrument Cluster Finish Panel
55416-52030-B0 note Retainer, Instrument Cluster Finish Panel
2007-06 → 2014-07 ended
ZSP110 —
55539B — Cover, Spare Switch Hole, NO.2
55539-52070-B0 note Cover, Spare Switch Hole, NO.2
2009-07 → 2012-08 ended
ZSP110 —
55670A — Register Assy, Instrument Panel, Center
55670-52040-B0 note Register Assy, Instrument Panel, Center
2007-06 → 2014-07 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
