Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

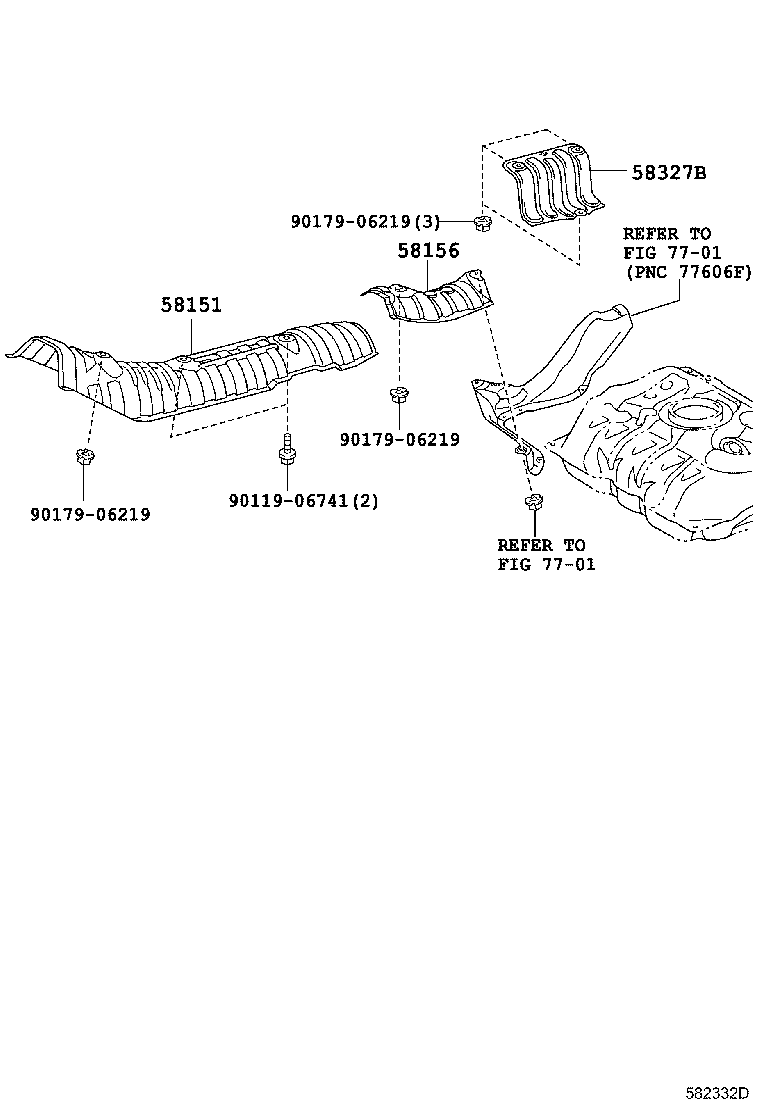

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58151 — Insulator, Front Floor Heat, NO.1 | ||||
| 58151-52061 |
Insulator, Front Floor Heat, NO.1
2007-06 → 2009-10
ended
|
ZSP110 | — | |
| 58151-52062 |
Insulator, Front Floor Heat, NO.1
2009-11 → 2014-07
ended
|
ZSP110 | — | |
| 58156 — Insulator, Front Floor Heat, NO.4 | ||||
| 58156-52010 |
Insulator, Front Floor Heat, NO.4
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 58327B — Insulator, Main Muffler Heat | ||||
| 58327-52120 |
Insulator, Main Muffler Heat
2007-06 → 2009-11
ended
|
ZSP110 | — | |
| 58327-52121 |
Insulator, Main Muffler Heat
2009-12 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
