Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

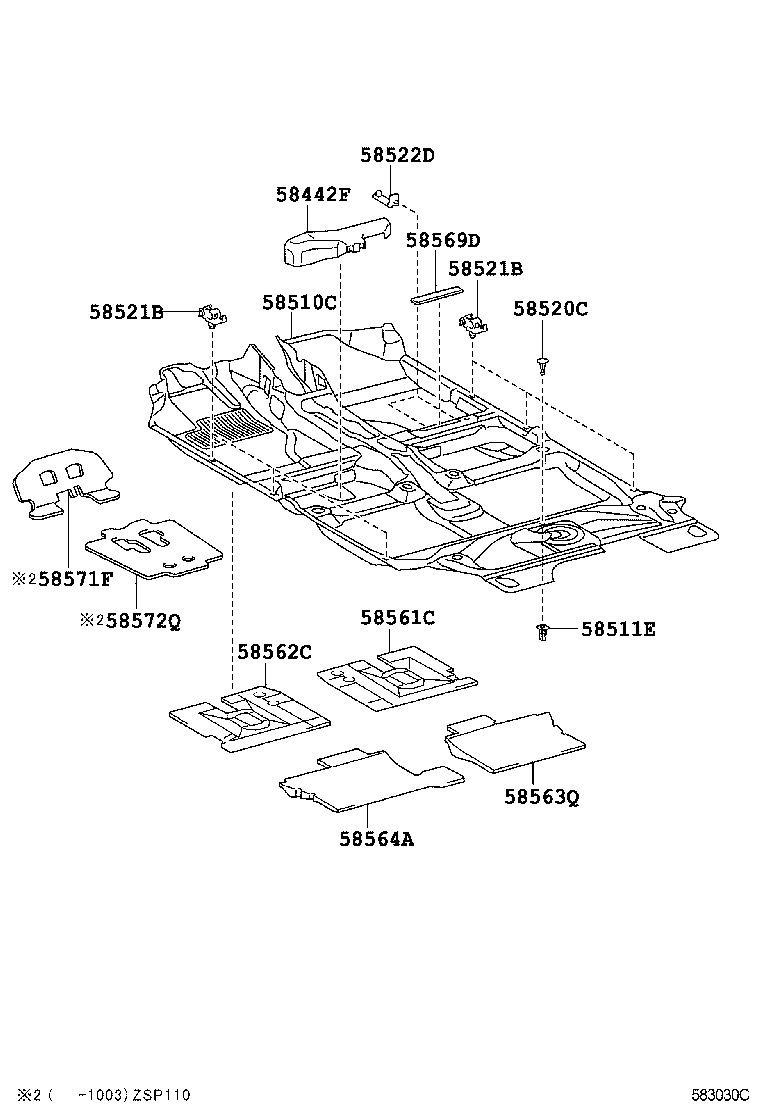

Exploded illustration 583030C 58442F — COVER, JACK (1 parts) 58510C — CARPET ASSY, FRONT FLOOR, FRONT (4 parts) 58511E — CLIP(FOR FRONT FLOOR MAT) (1 parts) 58520C — CLIP(FOR FRONT FLOOR CARPET) (2 parts) 58521B — HOOK, FLOOR CARPET (1 parts) 58561C — SILENCER, FRONT FLOOR, NO.1 (2 parts) 58562C — SILENCER, FRONT FLOOR, NO.2 (2 parts) 58563Q — SILENCER, FRONT FLOOR, NO.3 (2 parts) 58564A — SILENCER, FRONT FLOOR, NO.4 (2 parts) 58569D — COVER, FRONT FLOOR CAUTION PLATE (3 parts) 58521B — HOOK, FLOOR CARPET (1 parts) 58571F — PAD, FRONT FLOOR, FRONT (1 parts) 58572Q — PAD, FRONT FLOOR, FRONT NO.2 (1 parts) 58522D — HOOK, FLOOR CARPET, NO.2 (1 parts)
583030C · 14 callouts Full size ↗
23 parts on this figure
Part number Description Fitment Price
58442F — Cover, Jack
58442-52060 Cover, Jack
2007-06 → 2014-07 ended
ZSP110 —
58510C — Carpet Assy, Front Floor, Front
58510-52D90-B1 note Carpet Assy, Front Floor, Front
2007-06 → 2008-02 ended
ZSP110 —
58510-52D90-B2 note Carpet Assy, Front Floor, Front
2008-02 → 2009-12 ended
ZSP110 —
58510-52D91-B2 note Carpet Assy, Front Floor, Front
2010-01 → 2012-08 ended
ZSP110 —
58510-52M40-B2 note Carpet Assy, Front Floor, Front
2012-08 → 2014-07 ended
ZSP110 —
58511E — Clip(FOR FRONT FLOOR MAT)
90467-10023 Clip(FOR FRONT FLOOR MAT)
2007-06 → 2014-07 ended
ZSP110 —
58520C — Clip(FOR FRONT FLOOR CARPET)
90467-07115-B0 note Clip(FOR FRONT FLOOR CARPET)
2007-06 → 2011-11 ended
ZSP110 —
90467-07115-C0 note Clip(FOR FRONT FLOOR CARPET)
2011-11 → 2014-07 ended
ZSP110 —
58521B — Hook, Floor Carpet
58521-52040 Hook, Floor Carpet
2007-06 → 2014-07 ended
ZSP110 —
58522D — Hook, Floor Carpet, NO.2
58522-52030 Hook, Floor Carpet, NO.2
2012-08 → 2014-07 ended
ZSP110 —
58561C — Silencer, Front Floor, NO.1
58561-52130 Silencer, Front Floor, NO.1
2007-06 → 2009-12 ended
ZSP110 —
58561-52160 Silencer, Front Floor, NO.1
2010-01 → 2014-07 ended
ZSP110 —
58562C — Silencer, Front Floor, NO.2
58562-52090 Silencer, Front Floor, NO.2
2007-06 → 2009-12 ended
ZSP110 —
58562-52130 Silencer, Front Floor, NO.2
2010-01 → 2014-07 ended
ZSP110 —
58563Q — Silencer, Front Floor, NO.3
58563-52070 Silencer, Front Floor, NO.3
2007-06 → 2010-01 ended
ZSP110 —
58563-52250 Silencer, Front Floor, NO.3
2010-01 → 2014-07 ended
ZSP110 —
58564A — Silencer, Front Floor, NO.4
58564-52080 Silencer, Front Floor, NO.4
2007-06 → 2010-01 ended
ZSP110 —
58564-52260 Silencer, Front Floor, NO.4
2010-01 → 2014-07 ended
ZSP110 —
58569D — Cover, Front Floor Caution Plate
58569-52020-B0 note Cover, Front Floor Caution Plate
2007-06 → 2011-11 ended
ZSP110 —
58569-52020-C0 note Cover, Front Floor Caution Plate
2011-11 → 2013-05 ended
ZSP110 —
58569-52021-C0 note Cover, Front Floor Caution Plate
2013-06 → 2014-07 ended
ZSP110 —
58571F — Pad, Front Floor, Front
58571-52020 Pad, Front Floor, Front
2007-06 → 2010-03 ended
ZSP110 —
58572Q — Pad, Front Floor, Front NO.2
58572-52030 Pad, Front Floor, Front NO.2
2007-06 → 2010-03 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
