Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

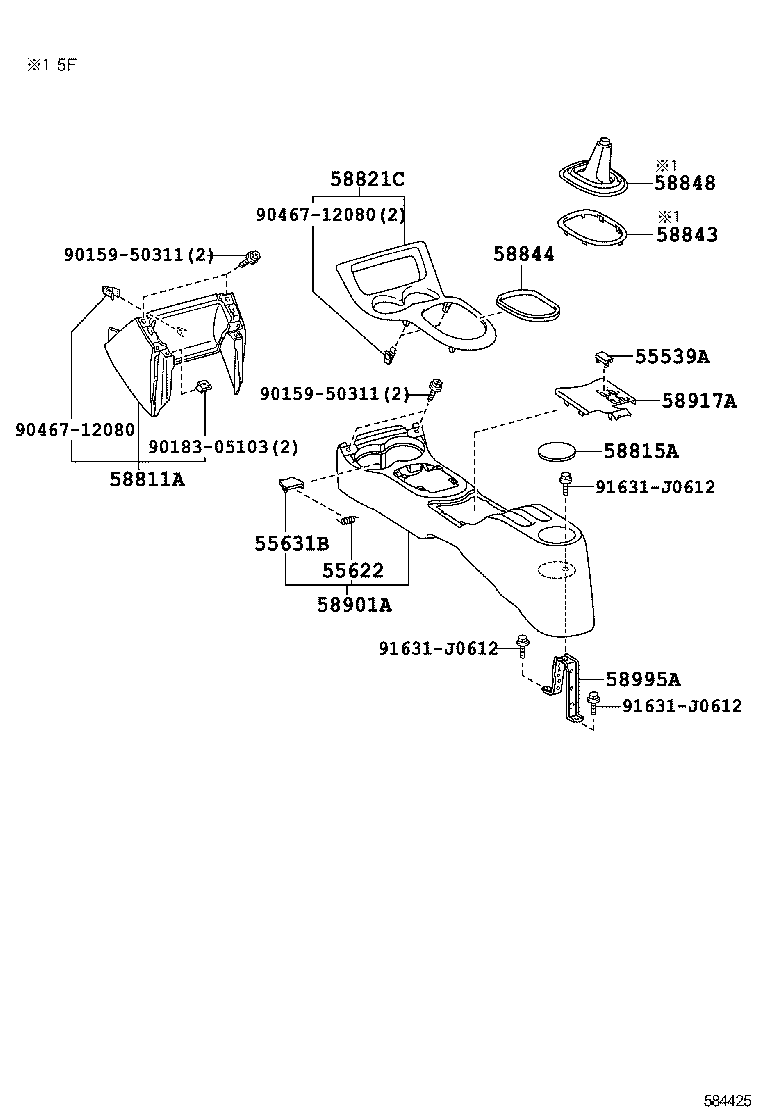

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55539A — Cover, Spare Switch Hole | ||||
| 55539-52070-B0 note |
Cover, Spare Switch Hole
2007-06 → 2009-07
ended
|
ZSP110 | — | |
| 55539-52070-B0 note |
Cover, Spare Switch Hole
2009-07 → 2011-12
ended
|
ZSP110 | — | |
| 55539-52070-B0 note |
Cover, Spare Switch Hole
2007-06 → 2009-07
ended
|
ZSP110 | — | |
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-12 → 2014-07
ended
|
ZSP110 | — | |
| 55622 — Spring, Instr Panel Cup Holder, NO.1 | ||||
| 55622-52040 |
Spring, Instr Panel Cup Holder, NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55631B — Lock, Instrument Panel Cup Holder, NO.1 | ||||
| 55631-52040-B0 note |
Lock, Instrument Panel Cup Holder, NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 58811A — Box, Console, Front | ||||
| 58811-52020-B0 note |
Box, Console, Front
2007-06 → 2012-08
ended
|
ZSP110 | — | |
| 58811-52060-B0 note |
Box, Console, Front
2012-08 → 2014-07
ended
|
ZSP110 | — | |
| 58815A — Carpet, Console Box | ||||
| 58815-52050 |
Carpet, Console Box
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 58821C — Panel, Console, Upper | ||||
| 58821-52050-C0 note |
Panel, Console, Upper
2007-06 → 2010-08
ended
|
ZSP110 | — | |
| 58821-52051-B1 note |
Panel, Console, Upper
2010-08 → 2010-09
ended
|
ZSP110 | — | |
| 58821-52071-B1 note |
Panel, Console, Upper
2010-10 → 2012-08
ended
|
ZSP110 | — | |
| 58821-52090-E0 note |
Panel, Console, Upper
2008-05 → 2008-06
ended
|
ZSP110 USA | — | |
| 58821-52130 note |
Panel, Console, Upper
2011-08 → 2011-10
ended
|
ZSP110 | — | |
| 58821-52140-B0 note |
Panel, Console, Upper
2012-08 → 2014-07
ended
|
ZSP110 | — | |
| 58843 — Bezel, Shifting Hole | ||||
| 58843-52030 |
Bezel, Shifting Hole
2007-06 → 2014-07
ended
|
ZSP110 5F | — | |
| 58844 — Bezel, Console Box | ||||
| 58844-52010 |
Bezel, Console Box
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 58848 — Cover, Shift Lever Hole | ||||
| 58848-52030 |
Cover, Shift Lever Hole
2007-06 → 2014-07
ended
|
ZSP110 5F | — | |
| 58901A — Box Sub-assy, Console, Rear | ||||
| 58901-52070-B0 note |
Box Sub-assy, Console, Rear
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 58917A — Cover, Console Box, Rear | ||||
| 58917-52070-B0 note |
Cover, Console Box, Rear
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 58995A — Bracket, Console Box Mounting, NO.1 | ||||
| 58902-52020 |
Bracket, Console Box Mounting, NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
