Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

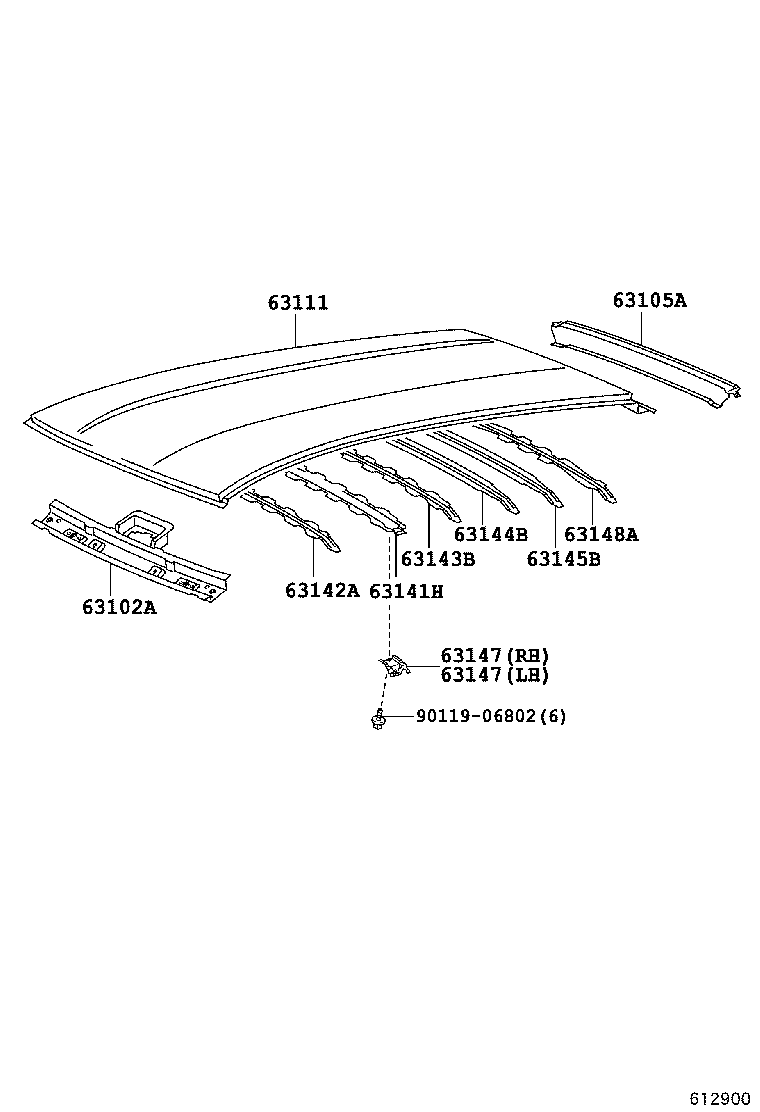

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63102A — Panel Sub-assy, Windshield Header | ||||
| 63102-52150 |
Panel Sub-assy, Windshield Header
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 63105A — Frame Sub-assy, Back Door Opening | ||||
| 63105-52130 |
Frame Sub-assy, Back Door Opening
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 63111 — Panel, Roof | ||||
| 63111-52260 |
Panel, Roof
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 63141H — Reinforcement, Roof Panel, Center | ||||
| 63141-52130 |
Reinforcement, Roof Panel, Center
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 63142A — Reinforcement, Roof Panel, NO.2 | ||||
| 63142-52070 |
Reinforcement, Roof Panel, NO.2
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 63143B — Reinforcement, Roof Panel, NO.3 | ||||
| 63143-52140 |
Reinforcement, Roof Panel, NO.3
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 63144B — Reinforcement, Roof Panel, NO.4 | ||||
| 63144-52110 |
Reinforcement, Roof Panel, NO.4
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 63145B — Reinforcement, Windshield Header Panel | ||||
| 63145-52030 |
Reinforcement, Windshield Header Panel
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 63147 — Bracket, Roof Panel Reinforcement | ||||
| 63147-52070 |
Bracket, Roof Panel Reinforcement
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 63148A — Reinforcement, Roof Panel, NO.7 | ||||
| 63148-52090 |
Reinforcement, Roof Panel, NO.7
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
