Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

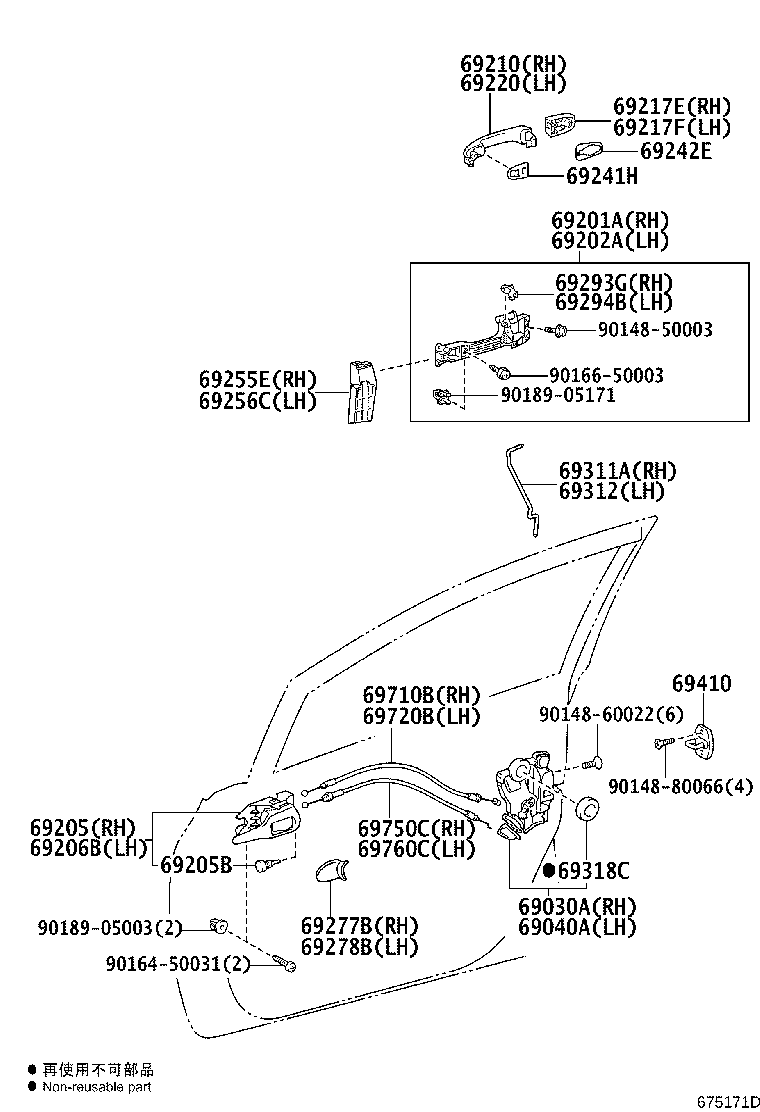

Exploded illustration 675171D 69255E — PROTECTOR, DOOR OUTSIDE HANDLE, RH (1 parts) 69256C — PROTECTOR, DOOR OUTSIDE HANDLE, LH (1 parts) 69201A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH (1 parts) 69202A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH (1 parts) 69205 — HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH (1 parts) 69205B — CUSHION(FOR FRONT DOOR INSIDE HANDLE) (1 parts) 69206B — HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH (1 parts) 69210 — HANDLE ASSY, FRONT DOOR, OUTSIDE RH (15 parts) 69217F — COVER, FRONT DOOR OUTSIDE HANDLE, LH (15 parts) 69220 — HANDLE ASSY, FRONT DOOR OUTSIDE, LH (15 parts) 69241H — PAD, FRONT DOOR OUTSIDE HANDLE, FRONT (1 parts) 69242E — PAD, FRONT DOOR OUTSIDE HANDLE, REAR (1 parts) 69277B — BEZEL, FRONT DOOR INSIDE HANDLE, RH (1 parts) 69278B — BEZEL, FRONT DOOR INSIDE HANDLE, LH (1 parts) 69293G — SNAP, FRONT DOOR OUTSIDE HANDLE, RH (1 parts) 69294B — SNAP, FRONT DOOR OUTSIDE HANDLE, LH (1 parts) 69030A — LOCK ASSY, FRONT DOOR W/MOTOR, RH (2 parts) 69311A — ROD, FRONT DOOR LOCK OPEN, RH (1 parts) 69312 — ROD, FRONT DOOR LOCK OPEN, LH (1 parts) 69318C — SEAL, DOOR LOCK WIRING HARNESS (1 parts) 69040A — LOCK ASSY, FRONT DOOR W/MOTOR, LH (2 parts) 69410 — PLATE ASSY, FRONT DOOR LOCK STRIKER (1 parts) 69710B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH (1 parts) 69720B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH (1 parts) 69750C — CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH (1 parts) 69760C — CABLE ASSY, FRONT DOOR INSIDE LOCKING LH (1 parts) 9014850003 — not listed in this catalogue 9014860022 — not listed in this catalogue 9014880066 — not listed in this catalogue 9016450031 — not listed in this catalogue 9016650003 — not listed in this catalogue 9018905003 — not listed in this catalogue 9018905171 — not listed in this catalogue 69217E — COVER, FRONT DOOR OUTSIDE HANDLE, RH (15 parts)
675171D · 27 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
85 parts on this figure
Part number Description Fitment Price
69030A — Lock Assy, Front Door W/Motor, RH
69030-42230 Lock Assy, Front Door W/Motor, RH
2007-06 → 2012-08 ended
ZSP110 —
69030-52520 Lock Assy, Front Door W/Motor, RH
2012-09 → 2014-07 ended
ZSP110 —
69040A — Lock Assy, Front Door W/Motor, LH
69040-42250 Lock Assy, Front Door W/Motor, LH
2007-06 → 2012-08 ended
ZSP110 —
69040-52410 Lock Assy, Front Door W/Motor, LH
2012-09 → 2014-07 ended
ZSP110 —
69201A — Frame Sub-assy, Front Door Outside Handle, RH
69201-52040 Frame Sub-assy, Front Door Outside Handle, RH
2007-06 → 2014-07 ended
ZSP110 —
69202A — Frame Sub-assy, Front Door Outside Handle, LH
69202-52020 Frame Sub-assy, Front Door Outside Handle, LH
2007-06 → 2014-07 ended
ZSP110 —
69205 — Handle Sub-assy, Front Door Inside, RH
69205-12230-B0 note Handle Sub-assy, Front Door Inside, RH
2007-06 → 2014-07 ended
ZSP110 —
69205B — Cushion(FOR FRONT DOOR INSIDE HANDLE)
90541-04027 Cushion(FOR FRONT DOOR INSIDE HANDLE)
2007-06 → 2014-07 ended
ZSP110 —
69206B — Handle Sub-assy, Front Door Inside, LH
69206-12230-B0 note Handle Sub-assy, Front Door Inside, LH
2007-06 → 2014-07 ended
ZSP110 —
69210 — Handle Assy, Front Door, Outside RH
69211-12220-03 note Handle Assy, Front Door, Outside RH
2011-08 → 2011-10 ended
ZSP110 —
69211-12220-A0 note Handle Assy, Front Door, Outside RH
2007-06 → 2014-07 ended
ZSP110 —
69211-12220-C2 note Handle Assy, Front Door, Outside RH
2007-06 → 2014-07 ended
ZSP110 —
69211-12220-K3 note Handle Assy, Front Door, Outside RH
2009-07 → 2014-07 ended
ZSP110 —
69211-12220-L5 note Handle Assy, Front Door, Outside RH
2010-09 → 2010-11 ended
ZSP110 USA —
69211-12220-M1 note Handle Assy, Front Door, Outside RH
2008-05 → 2008-06 ended
ZSP110 USA —
69211-12220-P0 note Handle Assy, Front Door, Outside RH
2007-06 → 2010-08 ended
ZSP110 —
69211-12220-P5 note Handle Assy, Front Door, Outside RH
2007-06 → 2014-07 ended
ZSP110 —
69211-12220-P6 note Handle Assy, Front Door, Outside RH
2010-08 → 2014-07 ended
ZSP110 —
69211-12220-Q7 note Handle Assy, Front Door, Outside RH
2010-08 → 2012-08 ended
ZSP110 —
69211-12220-R8 note Handle Assy, Front Door, Outside RH
2007-06 → 2014-07 ended
ZSP110 —
69211-12220-S1 note Handle Assy, Front Door, Outside RH
2013-05 → 2013-07 ended
ZSP110 —
69211-12220-V2 note Handle Assy, Front Door, Outside RH
2012-08 → 2013-08 ended
ZSP110 —
69211-12220-X4 note Handle Assy, Front Door, Outside RH
2007-06 → 2014-07 ended
ZSP110 —
69211-52090-G0 note Handle Assy, Front Door, Outside RH
2009-05 → 2009-06 ended
ZSP110 USA —
69217E — Cover, Front Door Outside Handle, RH
69217-12040-A0 note Cover, Front Door Outside Handle, RH
2007-06 → 2014-07 ended
ZSP110 —
69217-12040-A9 note Cover, Front Door Outside Handle, RH
2011-08 → 2011-10 ended
ZSP110 —
69217-12040-B4 note Cover, Front Door Outside Handle, RH
2007-06 → 2010-08 ended
ZSP110 —
69217-12040-C2 note Cover, Front Door Outside Handle, RH
2007-06 → 2014-07 ended
ZSP110 —
69217-12040-D9 note Cover, Front Door Outside Handle, RH
2007-06 → 2014-07 ended
ZSP110 —
69217-12040-G6 note Cover, Front Door Outside Handle, RH
2009-05 → 2009-06 ended
ZSP110 USA —
69217-12040-K3 note Cover, Front Door Outside Handle, RH
2009-07 → 2014-07 ended
ZSP110 —
69217-12040-L1 note Cover, Front Door Outside Handle, RH
2010-09 → 2010-11 ended
ZSP110 USA —
69217-12040-L6 note Cover, Front Door Outside Handle, RH
2008-05 → 2008-06 ended
ZSP110 USA —
69217-12040-P0 note Cover, Front Door Outside Handle, RH
2007-06 → 2014-07 ended
ZSP110 —
69217-12040-P1 note Cover, Front Door Outside Handle, RH
2010-08 → 2014-07 ended
ZSP110 —
69217-12040-P7 note Cover, Front Door Outside Handle, RH
2013-05 → 2013-07 ended
ZSP110 —
69217-12040-Q5 note Cover, Front Door Outside Handle, RH
2010-08 → 2012-08 ended
ZSP110 —
69217-12040-R5 note Cover, Front Door Outside Handle, RH
2007-06 → 2014-07 ended
ZSP110 —
69217-12040-V1 note Cover, Front Door Outside Handle, RH
2012-08 → 2013-08 ended
ZSP110 —
69217F — Cover, Front Door Outside Handle, LH
69217-42020-04 note Cover, Front Door Outside Handle, LH
2011-08 → 2011-10 ended
ZSP110 —
69217-42020-A3 note Cover, Front Door Outside Handle, LH
2007-06 → 2014-07 ended
ZSP110 —
69217-42020-C2 note Cover, Front Door Outside Handle, LH
2007-06 → 2014-07 ended
ZSP110 —
69217-42020-G9 note Cover, Front Door Outside Handle, LH
2009-05 → 2009-06 ended
ZSP110 USA —
69217-42020-K3 note Cover, Front Door Outside Handle, LH
2009-07 → 2014-07 ended
ZSP110 —
69217-42020-L7 note Cover, Front Door Outside Handle, LH
2010-09 → 2010-11 ended
ZSP110 USA —
69217-42020-M2 note Cover, Front Door Outside Handle, LH
2008-05 → 2008-06 ended
ZSP110 USA —
69217-42020-P0 note Cover, Front Door Outside Handle, LH
2007-06 → 2010-08 ended
ZSP110 —
69217-42020-P5 note Cover, Front Door Outside Handle, LH
2007-06 → 2014-07 ended
ZSP110 —
69217-42020-P6 note Cover, Front Door Outside Handle, LH
2010-08 → 2014-07 ended
ZSP110 —
69217-42020-Q8 note Cover, Front Door Outside Handle, LH
2010-08 → 2012-08 ended
ZSP110 —
69217-42020-R9 note Cover, Front Door Outside Handle, LH
2007-06 → 2014-07 ended
ZSP110 —
69217-42020-S1 note Cover, Front Door Outside Handle, LH
2013-05 → 2013-07 ended
ZSP110 —
69217-42020-V4 note Cover, Front Door Outside Handle, LH
2012-08 → 2013-08 ended
ZSP110 —
69217-42020-X4 note Cover, Front Door Outside Handle, LH
2007-06 → 2014-07 ended
ZSP110 —
69220 — Handle Assy, Front Door Outside, LH
69211-12220-03 note Handle Assy, Front Door Outside, LH
2011-08 → 2011-10 ended
ZSP110 —
69211-12220-A0 note Handle Assy, Front Door Outside, LH
2007-06 → 2014-07 ended
ZSP110 —
69211-12220-C2 note Handle Assy, Front Door Outside, LH
2007-06 → 2014-07 ended
ZSP110 —
69211-12220-K3 note Handle Assy, Front Door Outside, LH
2009-07 → 2014-07 ended
ZSP110 —
69211-12220-L5 note Handle Assy, Front Door Outside, LH
2010-09 → 2010-11 ended
ZSP110 USA —
69211-12220-M1 note Handle Assy, Front Door Outside, LH
2008-05 → 2008-06 ended
ZSP110 USA —
69211-12220-P0 note Handle Assy, Front Door Outside, LH
2007-06 → 2010-08 ended
ZSP110 —
69211-12220-P5 note Handle Assy, Front Door Outside, LH
2007-06 → 2014-07 ended
ZSP110 —
69211-12220-P6 note Handle Assy, Front Door Outside, LH
2010-08 → 2014-07 ended
ZSP110 —
69211-12220-Q7 note Handle Assy, Front Door Outside, LH
2010-08 → 2012-08 ended
ZSP110 —
69211-12220-R8 note Handle Assy, Front Door Outside, LH
2007-06 → 2014-07 ended
ZSP110 —
69211-12220-S1 note Handle Assy, Front Door Outside, LH
2013-05 → 2013-07 ended
ZSP110 —
69211-12220-V2 note Handle Assy, Front Door Outside, LH
2012-08 → 2013-08 ended
ZSP110 —
69211-12220-X4 note Handle Assy, Front Door Outside, LH
2007-06 → 2014-07 ended
ZSP110 —
69211-52090-G0 note Handle Assy, Front Door Outside, LH
2009-05 → 2009-06 ended
ZSP110 USA —
69241H — Pad, Front Door Outside Handle, Front
69241-42020 Pad, Front Door Outside Handle, Front
2007-06 → 2014-07 ended
ZSP110 —
69242E — Pad, Front Door Outside Handle, Rear
69242-52020 Pad, Front Door Outside Handle, Rear
2007-06 → 2014-07 ended
ZSP110 —
69255E — Protector, Door Outside Handle, RH
69255-52050 Protector, Door Outside Handle, RH
2007-06 → 2014-07 ended
ZSP110 —
69256C — Protector, Door Outside Handle, LH
69256-52070 Protector, Door Outside Handle, LH
2007-06 → 2014-07 ended
ZSP110 —
69277B — Bezel, Front Door Inside Handle, RH
69277-52010 Bezel, Front Door Inside Handle, RH
2007-06 → 2014-07 ended
ZSP110 —
69278B — Bezel, Front Door Inside Handle, LH
69278-52010 Bezel, Front Door Inside Handle, LH
2007-06 → 2014-07 ended
ZSP110 —
69293G — Snap, Front Door Outside Handle, RH
69293-12030 Snap, Front Door Outside Handle, RH
2007-06 → 2014-07 ended
ZSP110 —
69294B — Snap, Front Door Outside Handle, LH
69293-12040 Snap, Front Door Outside Handle, LH
2007-06 → 2014-07 ended
ZSP110 —
69311A — Rod, Front Door Lock Open, RH
69311-52190 Rod, Front Door Lock Open, RH
2007-06 → 2014-07 ended
ZSP110 —
69312 — Rod, Front Door Lock Open, LH
69312-52170 Rod, Front Door Lock Open, LH
2007-06 → 2014-07 ended
ZSP110 —
69318C — Seal, Door Lock Wiring Harness
69318-51010 Seal, Door Lock Wiring Harness
2007-06 → 2014-07 ended
ZSP110 —
69410 — Plate Assy, Front Door Lock Striker
69410-33010 Plate Assy, Front Door Lock Striker
2007-06 → 2014-07 ended
ZSP110 —
69710B — Cable Assy, Front Door Lock Remote Control, RH
69710-52160 Cable Assy, Front Door Lock Remote Control, RH
2007-06 → 2014-07 ended
ZSP110 —
69720B — Cable Assy, Front Door Lock Remote Control, LH
69710-52160 Cable Assy, Front Door Lock Remote Control, LH
2007-06 → 2014-07 ended
ZSP110 —
69750C — Cable Assy, Front Door Inside Locking, RH
69750-52090 Cable Assy, Front Door Inside Locking, RH
2007-06 → 2014-07 ended
ZSP110 —
69760C — Cable Assy, Front Door Inside Locking LH
69750-52090 Cable Assy, Front Door Inside Locking LH
2007-06 → 2014-07 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
