Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

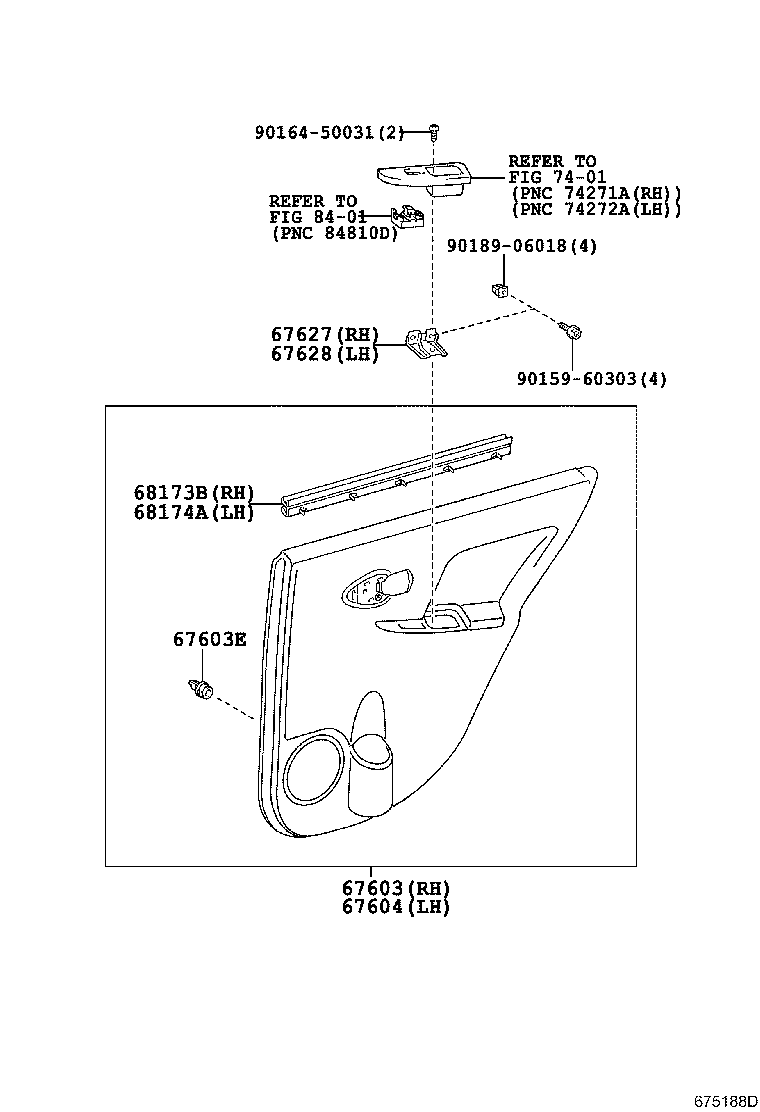

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67603 — Board Sub-assy, Rear Door Trim, RH | ||||
| 67630-52L40-B1 note |
Board Sub-assy, Rear Door Trim, RH
2007-06 → 2010-08
ended
|
ZSP110 | — | |
| 67630-52L40-B2 note |
Board Sub-assy, Rear Door Trim, RH
2008-05 → 2008-06
ended
|
ZSP110 USA | — | |
| 67630-52L41-B0 note |
Board Sub-assy, Rear Door Trim, RH
2010-08 → 2014-07
ended
|
ZSP110 | — | |
| 67630-52T20-B0 note |
Board Sub-assy, Rear Door Trim, RH
2009-05 → 2009-06
ended
|
ZSP110 USA | — | |
| 67630-52X50-B0 note |
Board Sub-assy, Rear Door Trim, RH
2011-08 → 2011-10
ended
|
ZSP110 | — | |
| 67603E — Clip(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
Clip(FOR REAR DOOR TRIM BOARD)
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 67604 — Board Sub-assy, Rear Door Trim, LH | ||||
| 67640-52P10-B1 note |
Board Sub-assy, Rear Door Trim, LH
2007-06 → 2010-08
ended
|
ZSP110 | — | |
| 67640-52P10-B2 note |
Board Sub-assy, Rear Door Trim, LH
2008-05 → 2008-06
ended
|
ZSP110 USA | — | |
| 67640-52P11-B0 note |
Board Sub-assy, Rear Door Trim, LH
2010-08 → 2014-07
ended
|
ZSP110 | — | |
| 67640-52S60-B0 note |
Board Sub-assy, Rear Door Trim, LH
2009-05 → 2009-06
ended
|
ZSP110 USA | — | |
| 67640-52W70-B0 note |
Board Sub-assy, Rear Door Trim, LH
2011-08 → 2011-10
ended
|
ZSP110 | — | |
| 67627 — Bracket, Rear Door Trim, RH | ||||
| 67625-52110 |
Bracket, Rear Door Trim, RH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 67628 — Bracket, Rear Door Trim, LH | ||||
| 67625-52110 |
Bracket, Rear Door Trim, LH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 68173B — Weatherstrip, Rear Door Glass, Inner RH | ||||
| 68173-52140 |
Weatherstrip, Rear Door Glass, Inner RH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 68174A — Weatherstrip, Rear Door Glass, Inner LH | ||||
| 68174-52140 |
Weatherstrip, Rear Door Glass, Inner LH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
