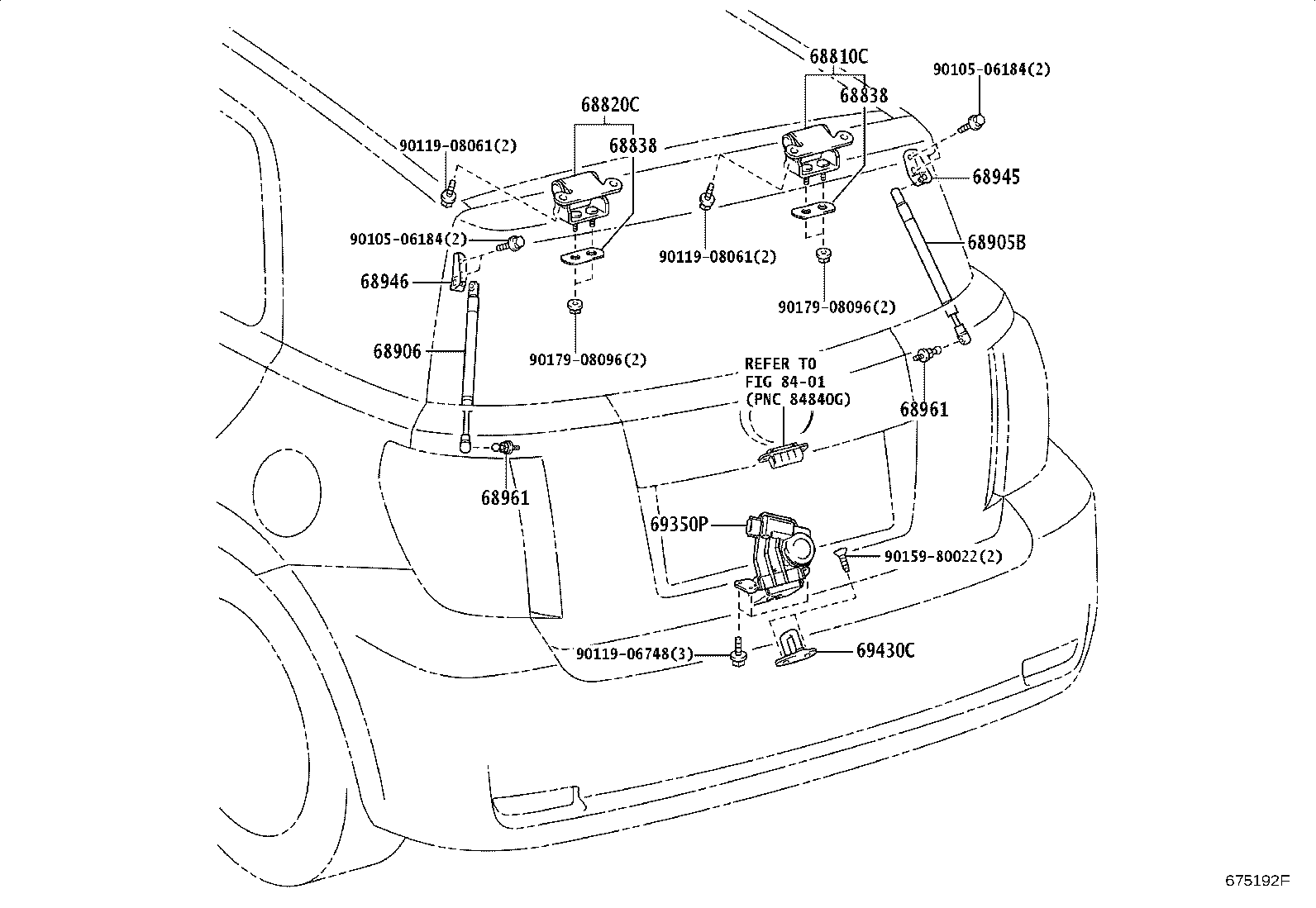

Exploded illustration 675192F 68810C — HINGE ASSY, BACK DOOR, RH (2 parts) 68820C — HINGE ASSY, BACK DOOR, LH (2 parts) 68838 — PAD, BACK DOOR HINGE, NO.1 (2 parts) 68838 — PAD, BACK DOOR HINGE, NO.1 (2 parts) 68905B — STAY SUB-ASSY, BACK DOOR, RH (2 parts) 68906 — STAY SUB-ASSY, BACK DOOR, LH (2 parts) 68945 — BRACKET, BACK DOOR DAMPER STAY, UPPER RH (2 parts) 68946 — BRACKET, BACK DOOR DAMPER STAY, UPPER LH (2 parts) 68961 — BOLT, BACK DOOR STAY (1 parts) 69350P — LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH (1 parts) 69430C — STRIKER ASSY, BACK DOOR LOCK (1 parts) 9010506184 — not listed in this catalogue 9010506184 — not listed in this catalogue 9011908061 — not listed in this catalogue 9011908061 — not listed in this catalogue 9011906748 — not listed in this catalogue 9015980022 — not listed in this catalogue 9017908096 — not listed in this catalogue 9017908096 — not listed in this catalogue 68961 — BOLT, BACK DOOR STAY (1 parts) 8401 — not listed in this catalogue
675192F · 12 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
68810C — Hinge Assy, Back Door, RH
68810-21050 Hinge Assy, Back Door, RH
2007-06 → 2007-08 ended
ZSP110 —
68810-52100 Hinge Assy, Back Door, RH
2007-08 → 2014-07 ended
ZSP110 —
68820C — Hinge Assy, Back Door, LH
68810-21050 Hinge Assy, Back Door, LH
2007-06 → 2007-08 ended
ZSP110 —
68810-52100 Hinge Assy, Back Door, LH
2007-08 → 2014-07 ended
ZSP110 —
68838 — Pad, Back Door Hinge, NO.1
68838-44020 Pad, Back Door Hinge, NO.1
2007-06 → 2007-08 ended
ZSP110 —
68838-52030 Pad, Back Door Hinge, NO.1
2007-08 → 2014-07 ended
ZSP110 —
68905B — Stay Sub-assy, Back Door, RH
68905-52010 Stay Sub-assy, Back Door, RH
2007-06 → 2011-12 ended
ZSP110 —
68905-52011 Stay Sub-assy, Back Door, RH
2012-01 → 2014-07 ended
ZSP110 —
68906 — Stay Sub-assy, Back Door, LH
68906-52010 Stay Sub-assy, Back Door, LH
2007-06 → 2011-12 ended
ZSP110 —
68906-52011 Stay Sub-assy, Back Door, LH
2012-01 → 2014-07 ended
ZSP110 —
68945 — Bracket, Back Door Damper Stay, Upper RH
68945-52070 Bracket, Back Door Damper Stay, Upper RH
2007-06 → 2013-07 ended
ZSP110 —
68945-52071 Bracket, Back Door Damper Stay, Upper RH
2013-08 → 2014-07 ended
ZSP110 —
68946 — Bracket, Back Door Damper Stay, Upper LH
68946-52030 Bracket, Back Door Damper Stay, Upper LH
2007-06 → 2013-07 ended
ZSP110 —
68946-52031 Bracket, Back Door Damper Stay, Upper LH
2013-08 → 2014-07 ended
ZSP110 —
68961 — Bolt, Back Door Stay
68961-30020 Bolt, Back Door Stay
2007-06 → 2014-07 ended
ZSP110 —
69350P — Lock Assy, Back Door, W/Courtesy Lamp Switch
69350-28150 Lock Assy, Back Door, W/Courtesy Lamp Switch
2007-06 → 2014-07 ended
ZSP110 —
69430C — Striker Assy, Back Door Lock
69430-20160 Striker Assy, Back Door Lock
2007-06 → 2014-07 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
