Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

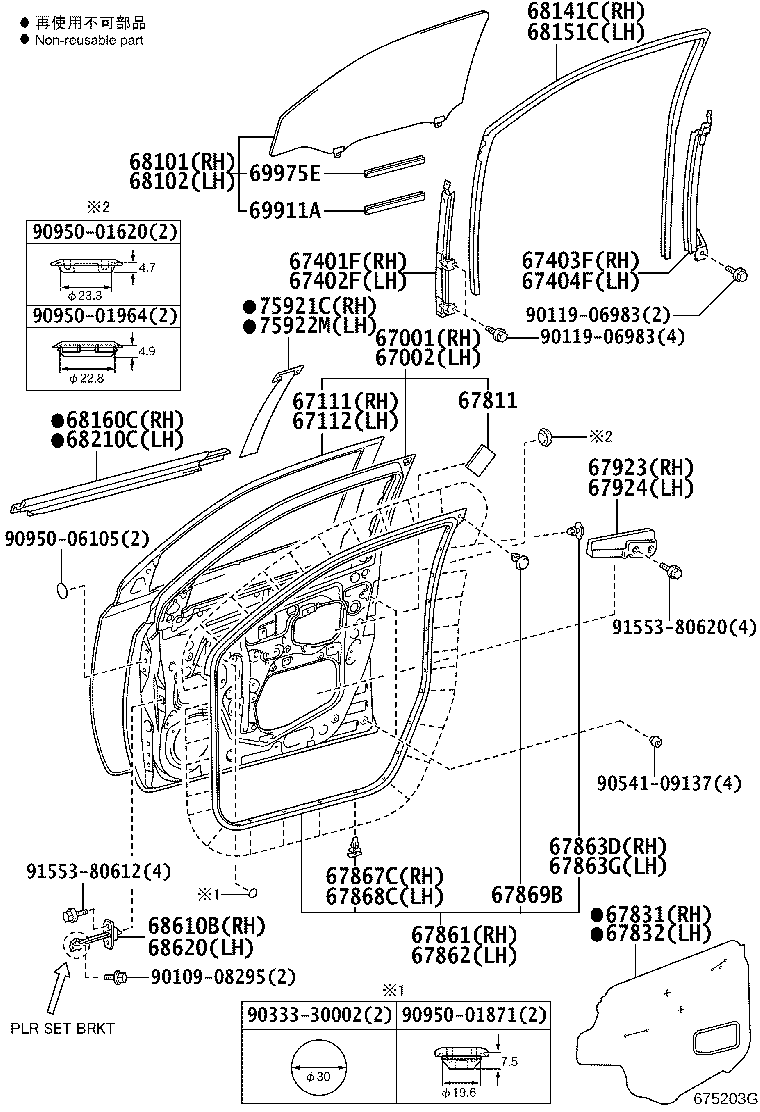

Exploded illustration 675203G 9054109137 — not listed in this catalogue 75921C — TAPE, BLACK OUT, NO.1 RH (2 parts) 75922M — TAPE, BLACK OUT, NO.1 LH (2 parts) 67001 — PANEL SUB-ASSY, FRONT DOOR, RH (1 parts) 67002 — PANEL SUB-ASSY, FRONT DOOR, LH (1 parts) 67111 — PANEL, FRONT DOOR, OUTER RH (1 parts) 67112 — PANEL, FRONT DOOR, OUTER LH (1 parts) 67401F — FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH (1 parts) 67402F — FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH (1 parts) 67403F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH (1 parts) 67404F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH (1 parts) 67811 — PAD, FRONT DOOR SILENCER (1 parts) 67861 — WEATHERSTRIP, FRONT DOOR, RH (1 parts) 67862 — WEATHERSTRIP, FRONT DOOR, LH (1 parts) 67923 — CUSHION, FRONT DOOR STIFFENER, NO.1 (1 parts) 67924 — CUSHION, FRONT DOOR STIFFENER, NO.2 (1 parts) 68101 — GLASS SUB-ASSY, FRONT DOOR, RH (1 parts) 68102 — GLASS SUB-ASSY, FRONT DOOR, LH (1 parts) 68141C — RUN, FRONT DOOR GLASS, RH (1 parts) 68151C — RUN, FRONT DOOR GLASS, LH (1 parts) 69911A — CHANNEL, FRONT DOOR GLASS, NO.1 (1 parts) 69975E — FILLER, FRONT DOOR GLASS CHANNEL, NO.1 (1 parts) 9095006105 — not listed in this catalogue 9155380620 — not listed in this catalogue 9011906983 — not listed in this catalogue 9011906983 — not listed in this catalogue 67869B — CLIP, FRONT DOOR WEATHERSTRIP (1 parts) 68160C — WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH (1 parts) 68210C — WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH (1 parts) 67867C — RETAINER, FRONT DOOR WEATHERSTRIP, RH (1 parts) 67868C — RETAINER, FRONT DOOR WEATHERSTRIP, LH (1 parts) 67863D — RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) (1 parts) 67863G — RETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP) (1 parts) 9095001620 — not listed in this catalogue 9095001964 — not listed in this catalogue 9010908295 — not listed in this catalogue 9033330002 — not listed in this catalogue 9095001871 — not listed in this catalogue 67831 — COVER, FRONT DOOR SERVICE HOLE, RH (1 parts) 67832 — COVER, FRONT DOOR SERVICE HOLE, LH (1 parts) 68610B — CHECK ASSY, FRONT DOOR, RH (2 parts) 68620 — CHECK ASSY, FRONT DOOR, LH (2 parts) 9155380612 — not listed in this catalogue
675203G · 32 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
36 parts on this figure
Part number Description Fitment Price
67001 — Panel Sub-assy, Front Door, RH
67001-52450 Panel Sub-assy, Front Door, RH
2007-06 → 2014-07 ended
ZSP110 —
67002 — Panel Sub-assy, Front Door, LH
67002-52450 Panel Sub-assy, Front Door, LH
2007-06 → 2014-07 ended
ZSP110 —
67111 — Panel, Front Door, Outer RH
67111-52190 Panel, Front Door, Outer RH
2007-06 → 2014-07 ended
ZSP110 —
67112 — Panel, Front Door, Outer LH
67112-52180 Panel, Front Door, Outer LH
2007-06 → 2014-07 ended
ZSP110 —
67401F — Frame Sub-assy, Front Door, Front Lower RH
67401-52140 Frame Sub-assy, Front Door, Front Lower RH
2007-06 → 2014-07 ended
ZSP110 —
67402F — Frame Sub-assy, Front Door, Front Lower LH
67402-52130 Frame Sub-assy, Front Door, Front Lower LH
2007-06 → 2014-07 ended
ZSP110 —
67403F — Frame Sub-assy, Front Door, Rear Lower RH
67403-52200 Frame Sub-assy, Front Door, Rear Lower RH
2007-06 → 2014-07 ended
ZSP110 —
67404F — Frame Sub-assy, Front Door, Rear Lower LH
67404-52170 Frame Sub-assy, Front Door, Rear Lower LH
2007-06 → 2014-07 ended
ZSP110 —
67811 — Pad, Front Door Silencer
67811-33040 Pad, Front Door Silencer
2007-06 → 2014-07 ended
ZSP110 —
67831 — Cover, Front Door Service Hole, RH
67831-52360 Cover, Front Door Service Hole, RH
2007-06 → 2014-07 ended
ZSP110 —
67832 — Cover, Front Door Service Hole, LH
67832-52240 Cover, Front Door Service Hole, LH
2007-06 → 2014-07 ended
ZSP110 —
67861 — Weatherstrip, Front Door, RH
67861-52210 Weatherstrip, Front Door, RH
2007-06 → 2014-07 ended
ZSP110 —
67862 — Weatherstrip, Front Door, LH
67862-52200 Weatherstrip, Front Door, LH
2007-06 → 2014-07 ended
ZSP110 —
67863D — Retainer, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67867-52040 Retainer, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
2007-06 → 2014-07 ended
ZSP110 —
67863G — Retainer, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67867-52010 Retainer, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
2007-06 → 2014-07 ended
ZSP110 —
67867C — Retainer, Front Door Weatherstrip, RH
67867-12150 Retainer, Front Door Weatherstrip, RH
2007-06 → 2014-07 ended
ZSP110 —
67868C — Retainer, Front Door Weatherstrip, LH
67867-12150 Retainer, Front Door Weatherstrip, LH
2007-06 → 2014-07 ended
ZSP110 —
67869B — Clip, Front Door Weatherstrip
90467-06084 Clip, Front Door Weatherstrip
2007-06 → 2014-07 ended
ZSP110 —
67923 — Cushion, Front Door Stiffener, NO.1
67923-52170 Cushion, Front Door Stiffener, NO.1
2007-06 → 2014-07 ended
ZSP110 —
67924 — Cushion, Front Door Stiffener, NO.2
67924-52180 Cushion, Front Door Stiffener, NO.2
2007-06 → 2014-07 ended
ZSP110 —
68101 — Glass Sub-assy, Front Door, RH
68110-52290 note Glass Sub-assy, Front Door, RH
2007-06 → 2014-07 ended
ZSP110 —
68102 — Glass Sub-assy, Front Door, LH
68120-52290 note Glass Sub-assy, Front Door, LH
2007-06 → 2014-07 ended
ZSP110 —
68141C — Run, Front Door Glass, RH
68141-52200 Run, Front Door Glass, RH
2007-06 → 2014-07 ended
ZSP110 —
68151C — Run, Front Door Glass, LH
68151-52190 Run, Front Door Glass, LH
2007-06 → 2014-07 ended
ZSP110 —
68160C — Weatherstrip Assy, Front Door Glass, Outer RH
68160-52160 Weatherstrip Assy, Front Door Glass, Outer RH
2007-06 → 2014-07 ended
ZSP110 —
68210C — Weatherstrip Assy, Front Door Glass, Outer LH
68210-52160 Weatherstrip Assy, Front Door Glass, Outer LH
2007-06 → 2014-07 ended
ZSP110 —
68610B — Check Assy, Front Door, RH
68610-52110 note Check Assy, Front Door, RH
2007-06 → 2010-05 ended
ZSP110 —
68610-52111 note Check Assy, Front Door, RH
2010-05 → 2014-07 ended
ZSP110 —
68620 — Check Assy, Front Door, LH
68620-52110 note Check Assy, Front Door, LH
2007-06 → 2010-05 ended
ZSP110 —
68620-52111 note Check Assy, Front Door, LH
2010-05 → 2014-07 ended
ZSP110 —
69911A — Channel, Front Door Glass, NO.1
69911-20050 Channel, Front Door Glass, NO.1
2007-06 → 2014-07 ended
ZSP110 —
69975E — Filler, Front Door Glass Channel, NO.1
69975-16020 Filler, Front Door Glass Channel, NO.1
2007-06 → 2014-07 ended
ZSP110 —
75921C — Tape, Black Out, NO.1 RH
75921-52110 Tape, Black Out, NO.1 RH
2007-06 → 2013-08 ended
ZSP110 —
75921-52110 Tape, Black Out, NO.1 RH
2013-08 → 2014-07 ended
ZSP110 —
75922M — Tape, Black Out, NO.1 LH
75922-52110 Tape, Black Out, NO.1 LH
2007-06 → 2013-08 ended
ZSP110 —
75922-52110 Tape, Black Out, NO.1 LH
2013-08 → 2014-07 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
