Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

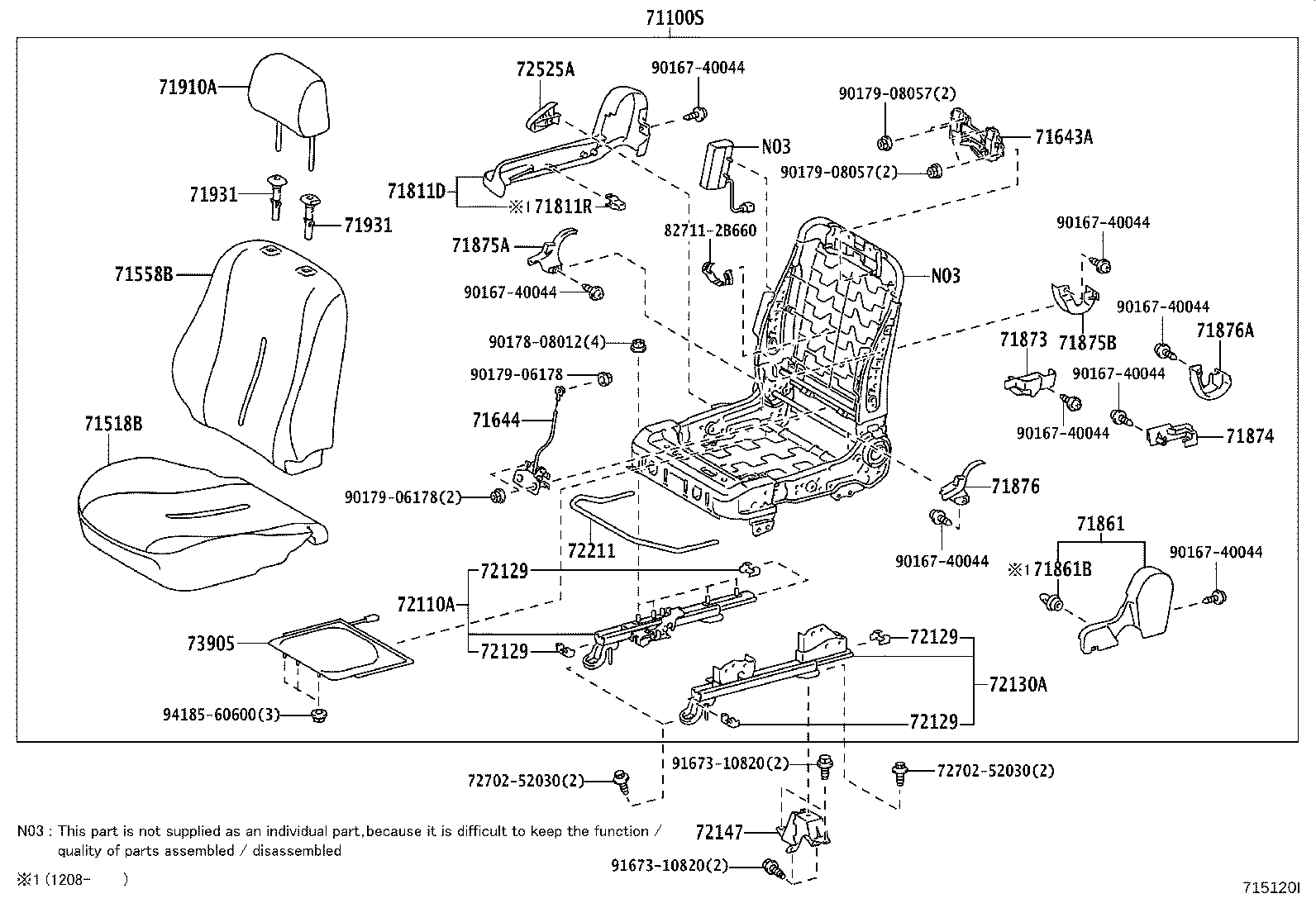

Exploded illustration 715120I 71558B — PAD, FRONT SEATBACK W/COVER, RH (6 parts) 71910A — HEADREST ASSY, FRONT SEAT (5 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (3 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (3 parts) 71644 — UNIT, ACTIVE HEADREST, LWR (3 parts) 72211 — HANDLE, SEAT TRACK ADJUSTING (2 parts) 71643A — UNIT, ACTIVE HEADREST, UPR (3 parts) 71875B — COVER, RECLINING ADJUSTER INSIDE, RH (1 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (1 parts) 71876A — COVER, RECLINING ADJUSTER INSIDE, LH (1 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (1 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (1 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (1 parts) 71100S — SEAT ASSY, FRONT RH (9 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (2 parts) 71811R — CLIP, FRONT SEAT CUSHION SHIELD, RH (1 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 827112B660 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (1 parts) 71518B — PAD, FRONT SEAT CUSHION W/COVER, RH (7 parts) 9017906178 — not listed in this catalogue 9017906178 — not listed in this catalogue 7270252030 — not listed in this catalogue 7270252030 — not listed in this catalogue 9017908057 — not listed in this catalogue 9017908057 — not listed in this catalogue 9167310820 — not listed in this catalogue 9167310820 — not listed in this catalogue 72147 — BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH (2 parts) 72110A — TRACK ASSY, FRONT SEAT, OUTER RH (5 parts) 72130A — TRACK ASSY, FRONT SEAT, INNER RH (5 parts) 9017808012 — not listed in this catalogue 73905 — AIRBAG SUB-ASSY, FRONT SEAT, RH (1 parts) 9418560600 — not listed in this catalogue 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (10 parts) 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (10 parts) 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (10 parts) 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (10 parts) 71861B — CLIP(FOR FRONT SEAT SHIELD, RH) (1 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (1 parts)
715120I · 28 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
73 parts on this figure
Part number Description Fitment Price
71100S — Seat Assy, Front RH
71010-52G20 Seat Assy, Front RH
2010-04 → 2010-08 ended
ZSP110 —
71010-52Z20-B1 note Seat Assy, Front RH
2011-08 → 2011-10 ended
ZSP110 —
71010-52Z90-B0 note Seat Assy, Front RH
2012-08 → 2014-07 ended
ZSP110 —
71100-5CB90-B4 note Seat Assy, Front RH
2007-06 → 2009-07 ended
ZSP110 —
71100-5CB90-B5 note Seat Assy, Front RH
2008-05 → 2008-06 ended
ZSP110 USA —
71100-5CB91-B0 note Seat Assy, Front RH
2009-07 → 2010-04 ended
ZSP110 —
71100-5CB93-B0 note Seat Assy, Front RH
2010-08 → 2012-08 ended
ZSP110 —
71100-5CU00-B0 note Seat Assy, Front RH
2009-05 → 2009-06 ended
ZSP110 USA —
71100-5DP10-B0 note Seat Assy, Front RH
2013-05 → 2013-07 ended
ZSP110 —
71518B — Pad, Front Seat Cushion W/Cover, RH
71518-52G40-B3 note Pad, Front Seat Cushion W/Cover, RH
2007-06 → 2010-08 ended
ZSP110 —
71518-52G40-B5 note Pad, Front Seat Cushion W/Cover, RH
2008-05 → 2008-06 ended
ZSP110 USA —
71518-52G41-B7 note Pad, Front Seat Cushion W/Cover, RH
2010-08 → 2012-08 ended
ZSP110 —
71518-52R50-B0 note Pad, Front Seat Cushion W/Cover, RH
2009-05 → 2009-06 ended
ZSP110 USA —
71518-52U20-B1 note Pad, Front Seat Cushion W/Cover, RH
2011-08 → 2011-10 ended
ZSP110 —
71518-52U30-B0 note Pad, Front Seat Cushion W/Cover, RH
2013-05 → 2013-07 ended
ZSP110 —
71518-52U40-B0 note Pad, Front Seat Cushion W/Cover, RH
2012-08 → 2014-07 ended
ZSP110 —
71558B — Pad, Front Seatback W/Cover, RH
71558-52K60-B1 note Pad, Front Seatback W/Cover, RH
2007-06 → 2010-08 ended
ZSP110 —
71558-52K60-B2 note Pad, Front Seatback W/Cover, RH
2008-05 → 2008-06 ended
ZSP110 USA —
71558-52K61-B4 note Pad, Front Seatback W/Cover, RH
2010-08 → 2014-07 ended
ZSP110 —
71558-52T90-B0 note Pad, Front Seatback W/Cover, RH
2009-05 → 2009-06 ended
ZSP110 USA —
71558-52X60-B1 note Pad, Front Seatback W/Cover, RH
2011-08 → 2011-10 ended
ZSP110 —
71558-5CA00-B0 note Pad, Front Seatback W/Cover, RH
2013-05 → 2013-07 ended
ZSP110 —
71643A — Unit, Active Headrest, Upr
71643-12011 Unit, Active Headrest, Upr
2007-06 → 2010-04 ended
ZSP110 —
71643-12011 Unit, Active Headrest, Upr
2010-08 → 2014-07 ended
ZSP110 USA —
71643-12011 Unit, Active Headrest, Upr
2007-06 → 2014-07 ended
ZSP110 CND —
71644 — Unit, Active Headrest, Lwr
71644-12030 Unit, Active Headrest, Lwr
2007-06 → 2010-04 ended
ZSP110 —
71644-12030 Unit, Active Headrest, Lwr
2007-06 → 2014-07 ended
ZSP110 CND —
71644-12030 Unit, Active Headrest, Lwr
2010-08 → 2014-07 ended
ZSP110 USA —
71811D — Shield, Front Seat Cushion, RH
71811-52200-B2 note Shield, Front Seat Cushion, RH
2007-06 → 2012-08 ended
ZSP110 —
71811-52400-B0 note Shield, Front Seat Cushion, RH
2012-08 → 2014-07 ended
ZSP110 —
71811R — Clip, Front Seat Cushion Shield, RH
90467-10203 Clip, Front Seat Cushion Shield, RH
2012-08 → 2014-07 ended
ZSP110 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-52190-B2 note Shield, Front Seat Cushion, Inner RH
2007-06 → 2014-07 ended
ZSP110 —
71861B — Clip(FOR FRONT SEAT SHIELD, RH)
71769-33020 Clip(FOR FRONT SEAT SHIELD, RH)
2012-08 → 2014-07 ended
ZSP110 —
71873 — Shield, Front Seat Cushion, Lower RH
71873-52080-B0 note Shield, Front Seat Cushion, Lower RH
2007-06 → 2014-07 ended
ZSP110 —
71874 — Shield, Front Seat Cushion, Lower LH
71874-52180-B0 note Shield, Front Seat Cushion, Lower LH
2007-06 → 2014-07 ended
ZSP110 —
71875A — Cover, Reclining Adjuster Inside, RH
71875-52090-B0 note Cover, Reclining Adjuster Inside, RH
2007-06 → 2014-07 ended
ZSP110 —
71875B — Cover, Reclining Adjuster Inside, RH
71875-52170-B0 note Cover, Reclining Adjuster Inside, RH
2007-06 → 2014-07 ended
ZSP110 —
71876 — Cover, Reclining Adjuster Inside, LH
71876-52090-B0 note Cover, Reclining Adjuster Inside, LH
2007-06 → 2014-07 ended
ZSP110 —
71876A — Cover, Reclining Adjuster Inside, LH
71876-52160-B0 note Cover, Reclining Adjuster Inside, LH
2007-06 → 2014-07 ended
ZSP110 —
71910A — Headrest Assy, Front Seat
71910-52680-B1 note Headrest Assy, Front Seat
2007-06 → 2009-11 ended
ZSP110 —
71910-52D60-B0 note Headrest Assy, Front Seat
2009-11 → 2010-08 ended
ZSP110 —
71910-52D61-B0 note Headrest Assy, Front Seat
2010-08 → 2014-07 ended
ZSP110 —
71910-52F60-B1 note Headrest Assy, Front Seat
2011-08 → 2011-10 ended
ZSP110 —
71910-52F60-B1 note Headrest Assy, Front Seat
2013-05 → 2013-07 ended
ZSP110 —
71931 — Support, Front Seat Headrest
71930-44020-B0 note Support, Front Seat Headrest
2007-06 → 2014-07 ended
ZSP110 —
71930-48010-B3 note Support, Front Seat Headrest
2007-06 → 2009-07 ended
ZSP110 —
71931-47010-B2 note Support, Front Seat Headrest
2009-07 → 2014-07 ended
ZSP110 —
72110A — Track Assy, Front Seat, Outer RH
72110-52070 Track Assy, Front Seat, Outer RH
2007-06 → 2010-03 ended
ZSP110 —
72110-52071 Track Assy, Front Seat, Outer RH
2010-08 → 2012-08 ended
ZSP110 —
72110-52200 Track Assy, Front Seat, Outer RH
2012-08 → 2012-11 ended
ZSP110 —
72110-52201 Track Assy, Front Seat, Outer RH
2012-12 → 2013-01 ended
ZSP110 —
72110-52202 Track Assy, Front Seat, Outer RH
2013-01 → 2014-07 ended
ZSP110 —
72129 — Protector, Seat Track Lower Rail, NO.1
72129-52030 note Protector, Seat Track Lower Rail, NO.1
2012-08 → 2014-07 ended
ZSP110 —
72129-52030 Protector, Seat Track Lower Rail, NO.1
2011-11 → 2012-08 ended
ZSP110 —
72129-52030 Protector, Seat Track Lower Rail, NO.1
2010-08 → 2011-11 ended
ZSP110 USA —
72129-52030 Protector, Seat Track Lower Rail, NO.1
2009-07 → 2010-04 ended
ZSP110 —
72129-52030 Protector, Seat Track Lower Rail, NO.1
2007-06 → 2009-07 ended
ZSP110 —
72129-52030 Protector, Seat Track Lower Rail, NO.1
2007-06 → 2011-11 ended
ZSP110 CND —
72129-52100 note Protector, Seat Track Lower Rail, NO.1
2012-08 → 2012-11 ended
ZSP110 —
72129-52101 note Protector, Seat Track Lower Rail, NO.1
2012-12 → 2014-07 ended
ZSP110 —
72129-52110 note Protector, Seat Track Lower Rail, NO.1
2012-08 → 2012-11 ended
ZSP110 —
72129-52111 note Protector, Seat Track Lower Rail, NO.1
2012-12 → 2014-07 ended
ZSP110 —
72130A — Track Assy, Front Seat, Inner RH
72130-52240 Track Assy, Front Seat, Inner RH
2007-06 → 2010-03 ended
ZSP110 —
72130-52241 Track Assy, Front Seat, Inner RH
2010-08 → 2012-08 ended
ZSP110 —
72130-52400 Track Assy, Front Seat, Inner RH
2012-08 → 2012-11 ended
ZSP110 —
72130-52401 Track Assy, Front Seat, Inner RH
2012-12 → 2013-01 ended
ZSP110 —
72130-52402 Track Assy, Front Seat, Inner RH
2013-01 → 2014-07 ended
ZSP110 —
72147 — Bracket, Front Inner Seat Track, Lower Rear RH
72147-52020 Bracket, Front Inner Seat Track, Lower Rear RH
2007-06 → 2010-06 ended
ZSP110 —
72147-52060 Bracket, Front Inner Seat Track, Lower Rear RH
2010-07 → 2014-07 ended
ZSP110 —
72211 — Handle, Seat Track Adjusting
72211-52030 Handle, Seat Track Adjusting
2007-06 → 2009-06 ended
ZSP110 —
72211-52110 Handle, Seat Track Adjusting
2009-06 → —
ZSP110 —
72525A — Handle, Reclining Adjuster Release, RH
72525-58030-B0 note Handle, Reclining Adjuster Release, RH
2007-06 → 2014-07 ended
ZSP110 —
73905 — Airbag Sub-assy, Front Seat, RH
73905-52030 Airbag Sub-assy, Front Seat, RH
2012-08 → 2014-07 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
