Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

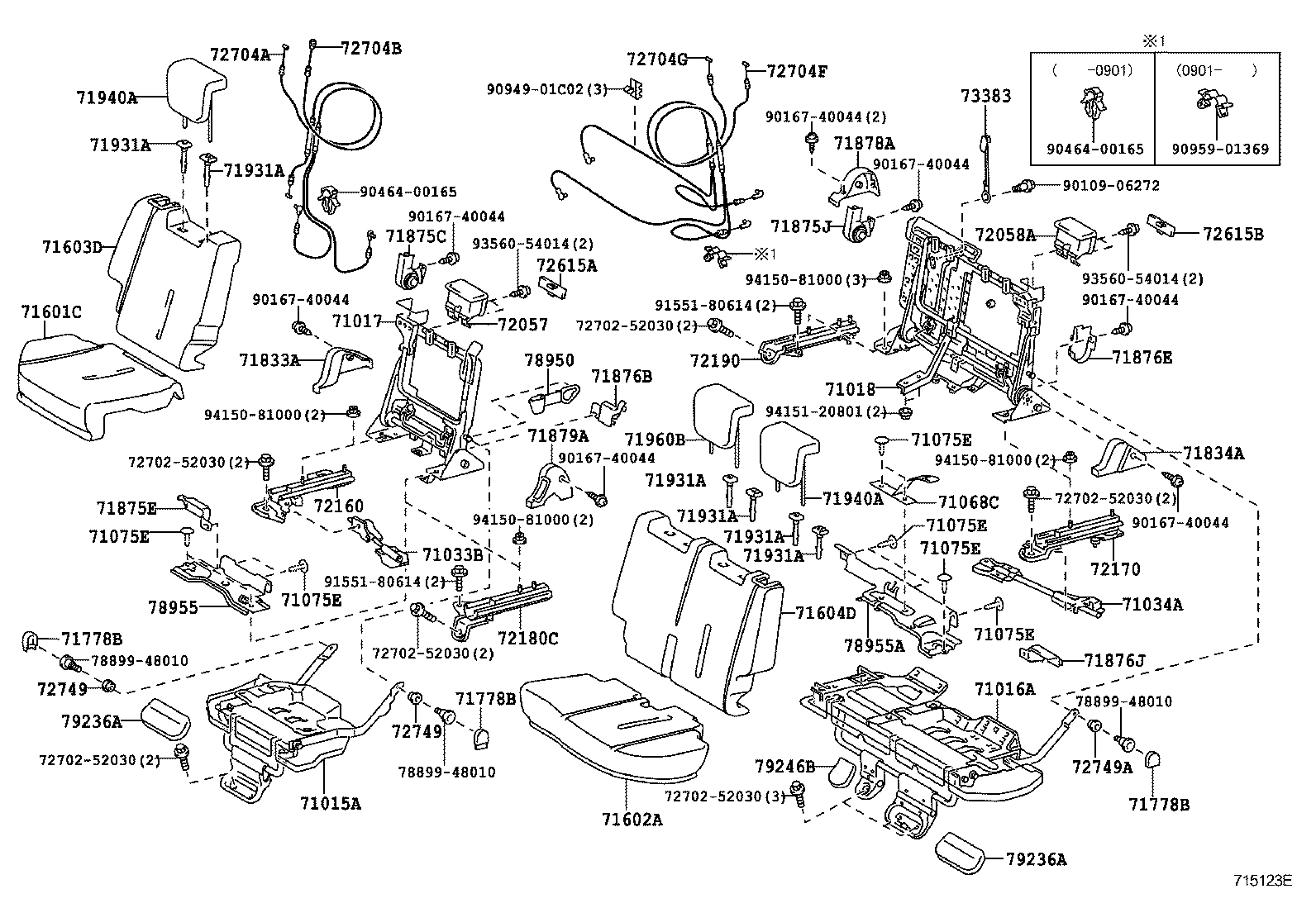

Exploded illustration 715123E 72160 — TRACK ASSY, REAR SEAT, OUTER RH (1 parts) 72180C — TRACK ASSY, REAR SEAT, INNER RH (1 parts) 72170 — TRACK ASSY, REAR SEAT, OUTER LH (1 parts) 71834A — COVER, REAR SEAT RECLINING, NO.1 LH (1 parts) 72057 — LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH (1 parts) 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (1 parts) 71876B — COVER, RECLINING ADJUSTER INSIDE, LH (1 parts) 78950 — BAND ASSY, FOLD SEAT STOPPER, NO.1 (1 parts) 72615A — COVER, REAR SEATBACK LOCK STRIKER, RH (1 parts) 72190 — TRACK ASSY, REAR SEAT INNER, LH (1 parts) 71931A — SUPPORT, REAR SEAT HEADREST (2 parts) 71931A — SUPPORT, REAR SEAT HEADREST (2 parts) 71604D — PAD SUB-ASSY, REAR SEATBACK W/COVER, LH (5 parts) 71033B — LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 RH (1 parts) 71879A — COVER, REAR SEAT RECLINING, INNER LH (1 parts) 71960B — HEADREST ASSY, REAR SEAT, CENTER (2 parts) 71018 — FRAME SUB-ASSY, REAR SEATBACK, LH (1 parts) 71931A — SUPPORT, REAR SEAT HEADREST (2 parts) 71931A — SUPPORT, REAR SEAT HEADREST (2 parts) 71940A — HEADREST ASSY, REAR SEAT (4 parts) 71778B — COVER, REAR SEAT SIDE HINGE MALE, RH (1 parts) 72749A — SPACER, REAR SEAT RECLINING (1 parts) 71876J — COVER, RECLINING ADJUSTER INSIDE, LH (1 parts) 71034A — LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 LH (1 parts) 71015A — FRAME SUB-ASSY, REAR SEAT CUSHION, RH (1 parts) 71778B — COVER, REAR SEAT SIDE HINGE MALE, RH (1 parts) 71602A — PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, LH (5 parts) 79236A — COVER, NO.2 SEAT LEG (1 parts) 79246B — COVER, NO.2 SEAT LEG, B (1 parts) 71016A — FRAME SUB-ASSY, REAR SEAT CUSHION, LH (1 parts) 78955A — COVER, REAR SEAT UNDER TRAY (2 parts) 72749 — SPACER, REAR SEAT RECLINING (1 parts) 71931A — SUPPORT, REAR SEAT HEADREST (2 parts) 71603D — PAD SUB-ASSY, REAR SEATBACK W/COVER, RH (5 parts) 71601C — PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH (5 parts) 71875E — COVER, RECLINING ADJUSTER INSIDE, RH (1 parts) 71075E — CLIP(FOR REAR SEAT) (1 parts) 78955 — COVER, REAR SEAT UNDER TRAY RH (2 parts) 71931A — SUPPORT, REAR SEAT HEADREST (2 parts) 71940A — HEADREST ASSY, REAR SEAT (4 parts) 72704A — CABLE, REAR SEAT RECLINING CONTROL (1 parts) 72704B — CABLE, REAR SEAT RECLINING CONTROL, NO.2 (1 parts) 72704F — CABLE, REAR SEAT RECLINING CONTROL, NO.3 (1 parts) 72704G — CABLE, REAR SEAT RECLINING CONTROL, NO.4 (1 parts) 71833A — COVER, REAR SEAT RECLINING, NO.1 RH (1 parts) 72058A — LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH (1 parts) 72615B — COVER, REAR SEAT LOCK STRIKER, RH (1 parts) 73383 — HOOK, RR SEAT BELT (1 parts) 71778B — COVER, REAR SEAT SIDE HINGE MALE, RH (1 parts) 79236A — COVER, NO.2 SEAT LEG (1 parts) 72749 — SPACER, REAR SEAT RECLINING (1 parts) 71075E — CLIP(FOR REAR SEAT) (1 parts) 71075E — CLIP(FOR REAR SEAT) (1 parts) 71075E — CLIP(FOR REAR SEAT) (1 parts) 71075E — CLIP(FOR REAR SEAT) (1 parts) 9046400165 — not listed in this catalogue 9356054014 — not listed in this catalogue 7270252030 — not listed in this catalogue 9094901C02 — not listed in this catalogue 9016740044 — not listed in this catalogue 7270252030 — not listed in this catalogue 7270252030 — not listed in this catalogue 7889948010 — not listed in this catalogue 7889948010 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9415081000 — not listed in this catalogue 9356054014 — not listed in this catalogue 9010906272 — not listed in this catalogue 7889948010 — not listed in this catalogue 7270252030 — not listed in this catalogue 9415081000 — not listed in this catalogue 9415081000 — not listed in this catalogue 7270252030 — not listed in this catalogue 7270252030 — not listed in this catalogue 9415120801 — not listed in this catalogue 9415081000 — not listed in this catalogue 71876E — COVER, RECLINING ADJUSTER INSIDE, LH (1 parts) 9016740044 — not listed in this catalogue 71875C — COVER, RECLINING ADJUSTER INSIDE, RH (1 parts) 9016740044 — not listed in this catalogue 71878A — COVER, REAR SEAT RECLINING, INNER RH (1 parts) 9016740044 — not listed in this catalogue 71875J — COVER, RECLINING ADJUSTER INSIDE, RH (1 parts) 9016740044 — not listed in this catalogue 9155180614 — not listed in this catalogue 9155180614 — not listed in this catalogue 9046400165 — not listed in this catalogue 9095901369 — not listed in this catalogue 71068C — PLATE SUB-ASSY, REAR SEAT LEG, LH (1 parts) 71075E — CLIP(FOR REAR SEAT) (1 parts)
715123E · 61 callouts, 30 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
69 parts on this figure
Part number Description Fitment Price
71015A — Frame Sub-assy, Rear Seat Cushion, RH
71015-52410 Frame Sub-assy, Rear Seat Cushion, RH
2007-06 → 2014-07 ended
ZSP110 —
71016A — Frame Sub-assy, Rear Seat Cushion, LH
71016-52060 Frame Sub-assy, Rear Seat Cushion, LH
2007-06 → 2014-07 ended
ZSP110 —
71017 — Frame Sub-assy, Rear Seatback, RH
71017-52550 Frame Sub-assy, Rear Seatback, RH
2007-06 → 2014-07 ended
ZSP110 —
71018 — Frame Sub-assy, Rear Seatback, LH
71018-52420 Frame Sub-assy, Rear Seatback, LH
2007-06 → 2014-07 ended
ZSP110 —
71033B — Leg Sub-assy, Rear Side Seat Cushion, NO.1 RH
71033-52030 Leg Sub-assy, Rear Side Seat Cushion, NO.1 RH
2007-06 → 2014-07 ended
ZSP110 —
71034A — Leg Sub-assy, Rear Side Seat Cushion, NO.1 LH
71034-52010 Leg Sub-assy, Rear Side Seat Cushion, NO.1 LH
2007-06 → 2014-07 ended
ZSP110 —
71068C — Plate Sub-assy, Rear Seat Leg, LH
71068-52010 Plate Sub-assy, Rear Seat Leg, LH
2007-06 → 2014-07 ended
ZSP110 —
71075E — Clip(FOR REAR SEAT)
90467-06085-B2 note Clip(FOR REAR SEAT)
2007-06 → 2014-07 ended
ZSP110 —
71601C — Pad Sub-assy, Rear Seat Cushion W/Cover, RH
71601-52G10-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2007-06 → 2010-08 ended
ZSP110 —
71601-52G10-B1 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2008-05 → 2008-06 ended
ZSP110 USA —
71601-52G11-B3 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2010-08 → 2014-07 ended
ZSP110 —
71601-52Q50-B1 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2011-08 → 2011-10 ended
ZSP110 —
71601-52Q90-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, RH
2013-05 → 2013-07 ended
ZSP110 —
71602A — Pad Sub-assy, Rear Seat Cushion W/Cover, LH
71602-52460-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2007-06 → 2010-08 ended
ZSP110 —
71602-52460-B1 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2008-05 → 2008-06 ended
ZSP110 USA —
71602-52461-B3 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2010-08 → 2014-07 ended
ZSP110 —
71602-52850-B1 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2011-08 → 2011-10 ended
ZSP110 —
71602-52A00-B0 note Pad Sub-assy, Rear Seat Cushion W/Cover, LH
2013-05 → 2013-07 ended
ZSP110 —
71603D — Pad Sub-assy, Rear Seatback W/Cover, RH
71603-52J80-B2 note Pad Sub-assy, Rear Seatback W/Cover, RH
2007-06 → 2010-08 ended
ZSP110 —
71603-52J80-B4 note Pad Sub-assy, Rear Seatback W/Cover, RH
2008-05 → 2008-06 ended
ZSP110 USA —
71603-52J81-B6 note Pad Sub-assy, Rear Seatback W/Cover, RH
2010-08 → 2014-07 ended
ZSP110 —
71603-52S20-B0 note Pad Sub-assy, Rear Seatback W/Cover, RH
2009-05 → 2009-06 ended
ZSP110 USA —
71603-52W00-B1 note Pad Sub-assy, Rear Seatback W/Cover, RH
2011-08 → 2011-10 ended
ZSP110 —
71604D — Pad Sub-assy, Rear Seatback W/Cover, LH
71604-52G40-B2 note Pad Sub-assy, Rear Seatback W/Cover, LH
2007-06 → 2010-08 ended
ZSP110 —
71604-52G40-B4 note Pad Sub-assy, Rear Seatback W/Cover, LH
2008-05 → 2008-06 ended
ZSP110 USA —
71604-52G41-B6 note Pad Sub-assy, Rear Seatback W/Cover, LH
2010-08 → 2014-07 ended
ZSP110 —
71604-52N40-B0 note Pad Sub-assy, Rear Seatback W/Cover, LH
2009-05 → 2009-06 ended
ZSP110 USA —
71604-52R00-B1 note Pad Sub-assy, Rear Seatback W/Cover, LH
2011-08 → 2011-10 ended
ZSP110 —
71778B — Cover, Rear Seat Side Hinge Male, RH
71778-52010-B0 note Cover, Rear Seat Side Hinge Male, RH
2007-06 → 2014-07 ended
ZSP110 —
71833A — Cover, Rear Seat Reclining, NO.1 RH
71833-52060-B1 note Cover, Rear Seat Reclining, NO.1 RH
2007-06 → 2014-07 ended
ZSP110 —
71834A — Cover, Rear Seat Reclining, NO.1 LH
71834-52060-B1 note Cover, Rear Seat Reclining, NO.1 LH
2007-06 → 2014-07 ended
ZSP110 —
71875C — Cover, Reclining Adjuster Inside, RH
71875-52121-B0 note Cover, Reclining Adjuster Inside, RH
2007-06 → 2014-07 ended
ZSP110 —
71875E — Cover, Reclining Adjuster Inside, RH
71875-52130-B0 note Cover, Reclining Adjuster Inside, RH
2007-06 → 2014-07 ended
ZSP110 —
71875J — Cover, Reclining Adjuster Inside, RH
71875-52141-B0 note Cover, Reclining Adjuster Inside, RH
2007-06 → 2014-07 ended
ZSP110 —
71876B — Cover, Reclining Adjuster Inside, LH
71876-52140-B0 note Cover, Reclining Adjuster Inside, LH
2007-06 → 2014-07 ended
ZSP110 —
71876E — Cover, Reclining Adjuster Inside, LH
71876-52121-B0 note Cover, Reclining Adjuster Inside, LH
2007-06 → 2014-07 ended
ZSP110 —
71876J — Cover, Reclining Adjuster Inside, LH
71876-52130-B0 note Cover, Reclining Adjuster Inside, LH
2007-06 → 2014-07 ended
ZSP110 —
71878A — Cover, Rear Seat Reclining, Inner RH
71878-52070-B2 note Cover, Rear Seat Reclining, Inner RH
2007-06 → 2014-07 ended
ZSP110 —
71879A — Cover, Rear Seat Reclining, Inner LH
71879-52090-B2 note Cover, Rear Seat Reclining, Inner LH
2007-06 → 2014-07 ended
ZSP110 —
71931A — Support, Rear Seat Headrest
71930-52030-B0 note Support, Rear Seat Headrest
2007-06 → 2014-07 ended
ZSP110 —
71931-42020-B4 note Support, Rear Seat Headrest
2007-06 → 2014-07 ended
ZSP110 —
71940A — Headrest Assy, Rear Seat
71940-52490-B0 note Headrest Assy, Rear Seat
2007-06 → 2010-08 ended
ZSP110 —
71940-52D40-B0 note Headrest Assy, Rear Seat
2010-08 → 2014-07 ended
ZSP110 —
71940-52F40-B1 note Headrest Assy, Rear Seat
2011-08 → 2011-10 ended
ZSP110 —
71940-52F40-B1 note Headrest Assy, Rear Seat
2013-05 → 2013-07 ended
ZSP110 —
71960B — Headrest Assy, Rear Seat, Center
71960-52320-B0 note Headrest Assy, Rear Seat, Center
2007-06 → 2010-08 ended
ZSP110 —
71960-52321-B0 note Headrest Assy, Rear Seat, Center
2010-08 → 2014-07 ended
ZSP110 —
72057 — Lever Sub-assy, Rear Seat Lock Control, RH
72057-52010-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2007-06 → 2014-07 ended
ZSP110 —
72058A — Lever Sub-assy, Rear Seat Lock Control, LH
72058-52010-B0 note Lever Sub-assy, Rear Seat Lock Control, LH
2007-06 → 2014-07 ended
ZSP110 —
72160 — Track Assy, Rear Seat, Outer RH
72160-52040 Track Assy, Rear Seat, Outer RH
2007-06 → 2014-07 ended
ZSP110 —
72170 — Track Assy, Rear Seat, Outer LH
72170-52050 Track Assy, Rear Seat, Outer LH
2007-06 → 2014-07 ended
ZSP110 —
72180C — Track Assy, Rear Seat, Inner RH
72160-52050 Track Assy, Rear Seat, Inner RH
2007-06 → 2014-07 ended
ZSP110 —
72190 — Track Assy, Rear Seat Inner, LH
72170-52040 Track Assy, Rear Seat Inner, LH
2007-06 → 2014-07 ended
ZSP110 —
72615A — Cover, Rear Seatback Lock Striker, RH
72615-52070-B0 note Cover, Rear Seatback Lock Striker, RH
2007-06 → 2014-07 ended
ZSP110 —
72615B — Cover, Rear Seat Lock Striker, RH
72615-52070-B0 note Cover, Rear Seat Lock Striker, RH
2007-06 → 2014-07 ended
ZSP110 —
72704A — Cable, Rear Seat Reclining Control
72704-52150 Cable, Rear Seat Reclining Control
2007-06 → 2014-07 ended
ZSP110 —
72704B — Cable, Rear Seat Reclining Control, NO.2
72704-52170 Cable, Rear Seat Reclining Control, NO.2
2007-06 → 2014-07 ended
ZSP110 —
72704F — Cable, Rear Seat Reclining Control, NO.3
72704-52160 Cable, Rear Seat Reclining Control, NO.3
2007-06 → 2014-07 ended
ZSP110 —
72704G — Cable, Rear Seat Reclining Control, NO.4
72704-52180 Cable, Rear Seat Reclining Control, NO.4
2007-06 → 2014-07 ended
ZSP110 —
72749 — Spacer, Rear Seat Reclining
72749-48010 Spacer, Rear Seat Reclining
2007-06 → 2014-07 ended
ZSP110 —
72749A — Spacer, Rear Seat Reclining
72749-48010 Spacer, Rear Seat Reclining
2007-06 → 2014-07 ended
ZSP110 —
73383 — Hook, RR Seat Belt
73383-33020 Hook, RR Seat Belt
2007-06 → 2014-07 ended
ZSP110 —
78950 — Band Assy, Fold Seat Stopper, NO.1
78950-52030 Band Assy, Fold Seat Stopper, NO.1
2007-06 → 2014-07 ended
ZSP110 —
78955 — Cover, Rear Seat Under Tray RH
78955-52010 Cover, Rear Seat Under Tray RH
2008-02 → 2014-07 ended
ZSP110 —
78955-52010-B0 note Cover, Rear Seat Under Tray RH
2007-06 → 2008-02 ended
ZSP110 —
78955A — Cover, Rear Seat Under Tray
78955-52020 Cover, Rear Seat Under Tray
2008-02 → 2014-07 ended
ZSP110 —
78955-52020-B0 note Cover, Rear Seat Under Tray
2007-06 → 2008-02 ended
ZSP110 —
79236A — Cover, NO.2 Seat Leg
79236-52020-C0 note Cover, NO.2 Seat Leg
2007-06 → 2014-07 ended
ZSP110 —
79246B — Cover, NO.2 Seat Leg, B
79246-52020-C0 note Cover, NO.2 Seat Leg, B
2007-06 → 2014-07 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
